Mil Circuit Malfunction: Wiring Diagram

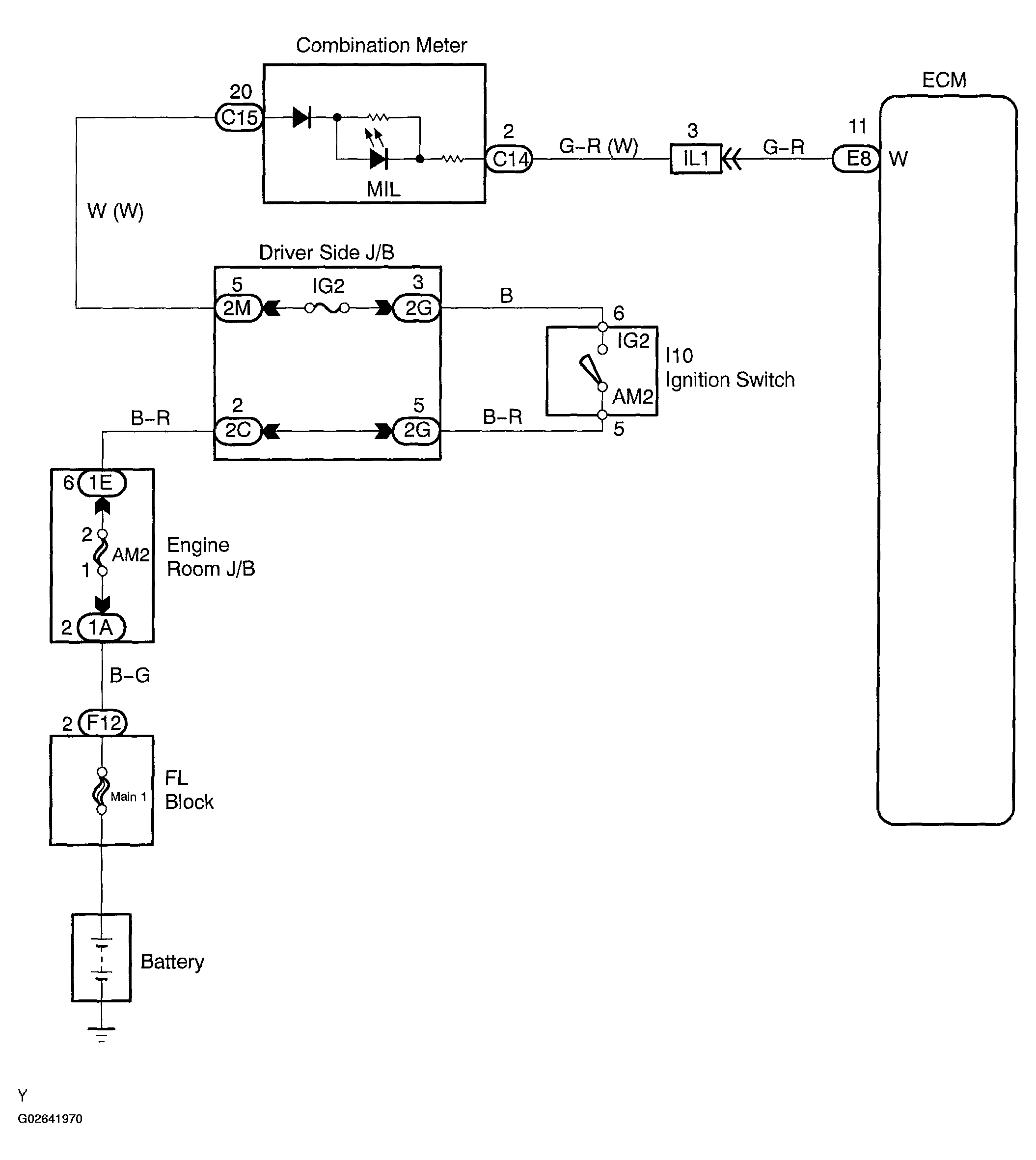

Fig 1: Wiring Diagram - Malfunction Indicator Light (MIL)

G02641970

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
