Inspection Procedure

HINT:

Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

  1. Check operation of speedometer.

    CHECK:

    Drive the vehicle and check if operation of the speedometer in the combination meter is normal.

    HINT:

    The vehicle speed sensor is operating normally if the speedometer display is normal.

    1. NG: Check speedometer circuit.
    2. OK: Go To Next Step
  2. Check for short in wire harness between terminal SPD of ECM connector and body ground.

    PREPARATION:

    1. Remove the glove compartment (see ENGINE CONTROL MODULE (ECM) ).
    2. Disconnect the E7 connector from the ECM.

    CHECK:

    Check the resistance between terminal SPD of the ECM connector and body ground.

    OK:

    Resistance: 10 kΩ or higher

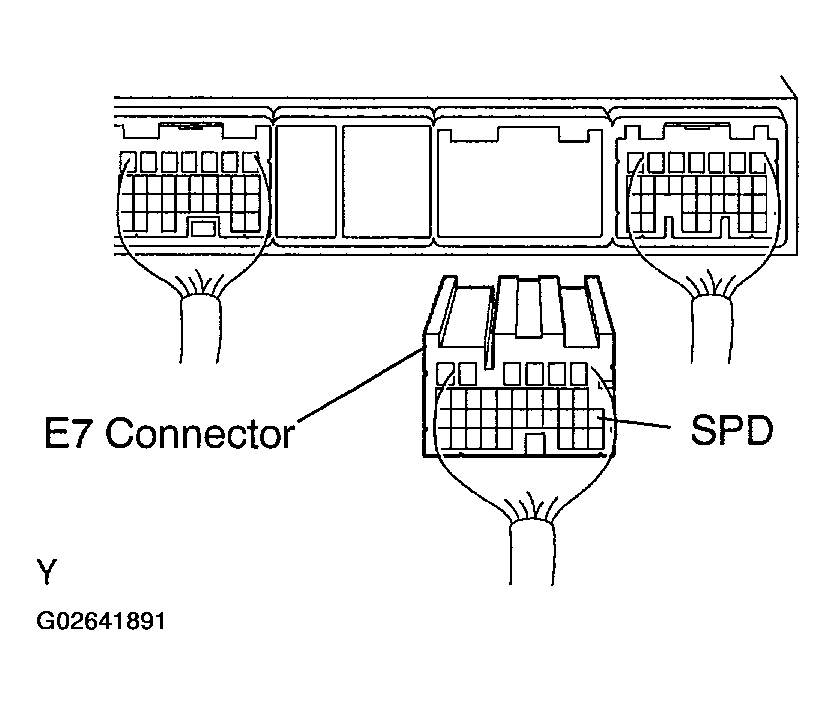

    Fig 1: Disconnecting E7 Connector From ECM
    G02641891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Repair of replace harness and connector.
    2. OK: Go To Next Step
  3. Check voltage between terminal SPD of ECM connector and body ground.

    PREPARATION:

    1. Remove the glove compartment (see ENGINE CONTROL MODULE (ECM) ).
    2. Shift the shift lever to neutral.
    3. Jack up the vehicle.
    4. Turn the ignition switch ON.

    CHECK:

    Measure the voltage between terminal SPD of the ECM connector and the body ground when the wheel is turned slowly.

    Fig 2: Identifying Terminal SPD Of ECM Connector
    G02641892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    Voltage is generated intermittently.

    HINT:

    The output voltage should fluctuate up and down similarly to the diagram on the left when the wheel is turned slowly.

    Fig 3: ECM Connector Terminal Voltage Graph
    G02641893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Check and repair harness and connector between combination meter and ECM.
    2. OK: Replace ECM (see  ENGINE CONTROL MODULE (ECM)  ).
