Roof Headlining: Removal

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).

1. REMOVE REAR SEATS
2. REMOVE REAR FLOOR FINISH PLATE

   Using a screwdriver, disengage the 5 clips and remove the finish plate.

   HINT:

   Tape the screwdriver tip before use.

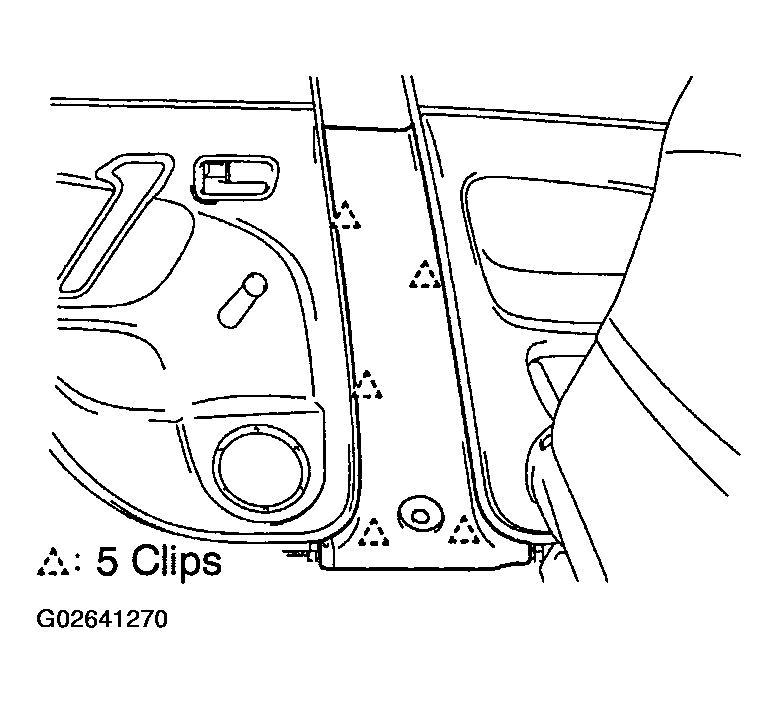

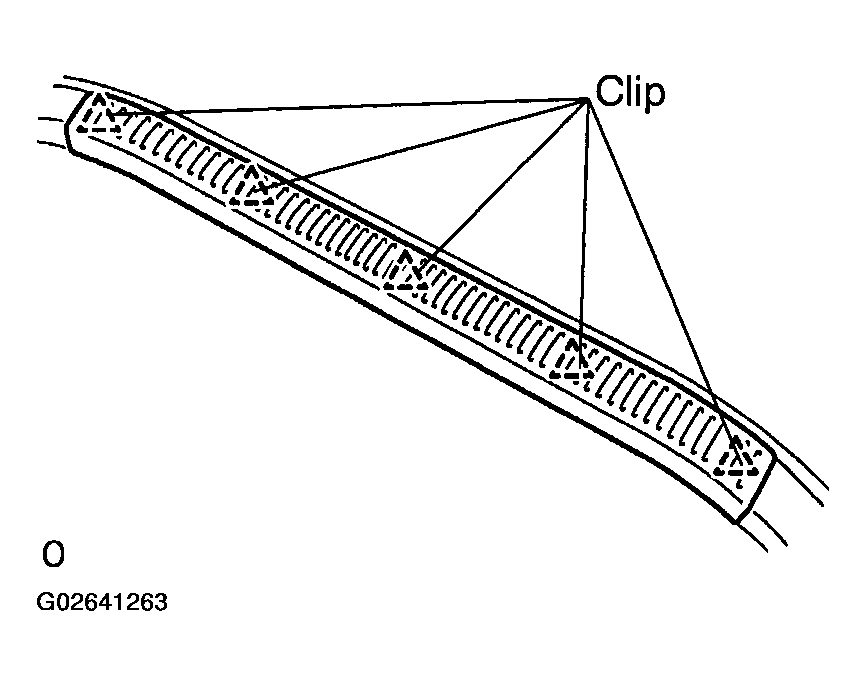

   Fig 1: Removing Rear Floor Finish Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE REAR DOOR SCUFF PLATES

   Using a screwdriver, disengage the 6 claws and remove the scuff plate.

   HINT:

   Tape the screwdriver tip before use.

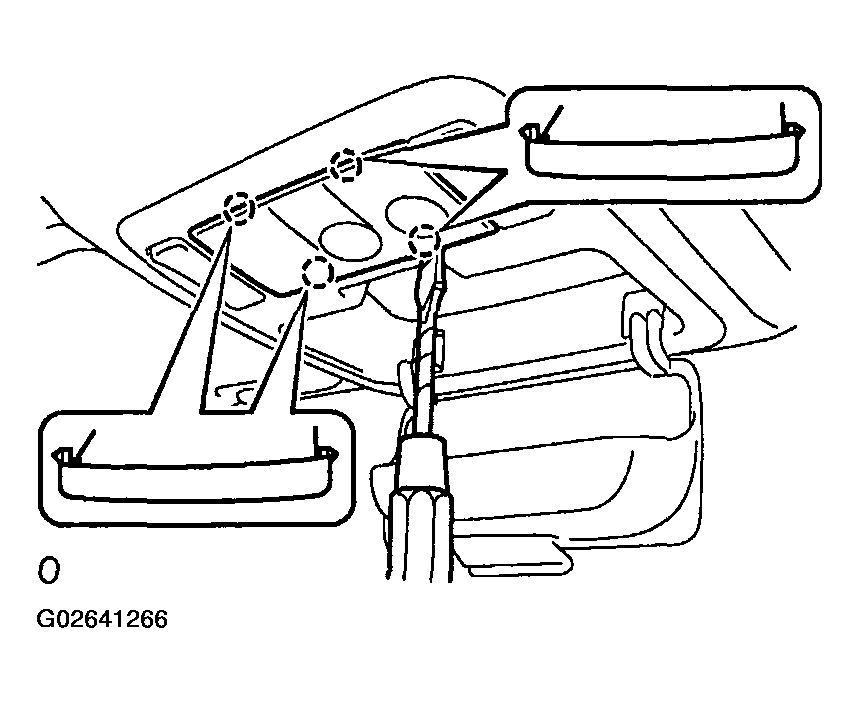

4. REMOVE ROOM LIGHT AND COVER
   1. Using a screwdriver, pry out the room light cover.

      HINT:

      Tape the screwdriver tip before use.

   2. Remove the 2 screws and room light, then disconnect the connector.
5. REMOVE ASSIST GRIPS AND COVERS
   Fig 2: Removing Rear Door Scuff Plates

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE FRONT DOOR SCUFF PLATES

   Using a screwdriver, disengage the 7 claws and remove the scuff plate.

   HINT:

   Tape the screwdriver tip before use.

7. REMOVE SUN VISORS

   Remove the 4 screws and 2 sun visors.

   Fig 3: Removing Front Door Scuff Plates

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE ROOF CONSOLE BOX
   1. Using a screwdriver, pry out the roof console cover.

      HINT:

      Tape the screwdriver tip before use.

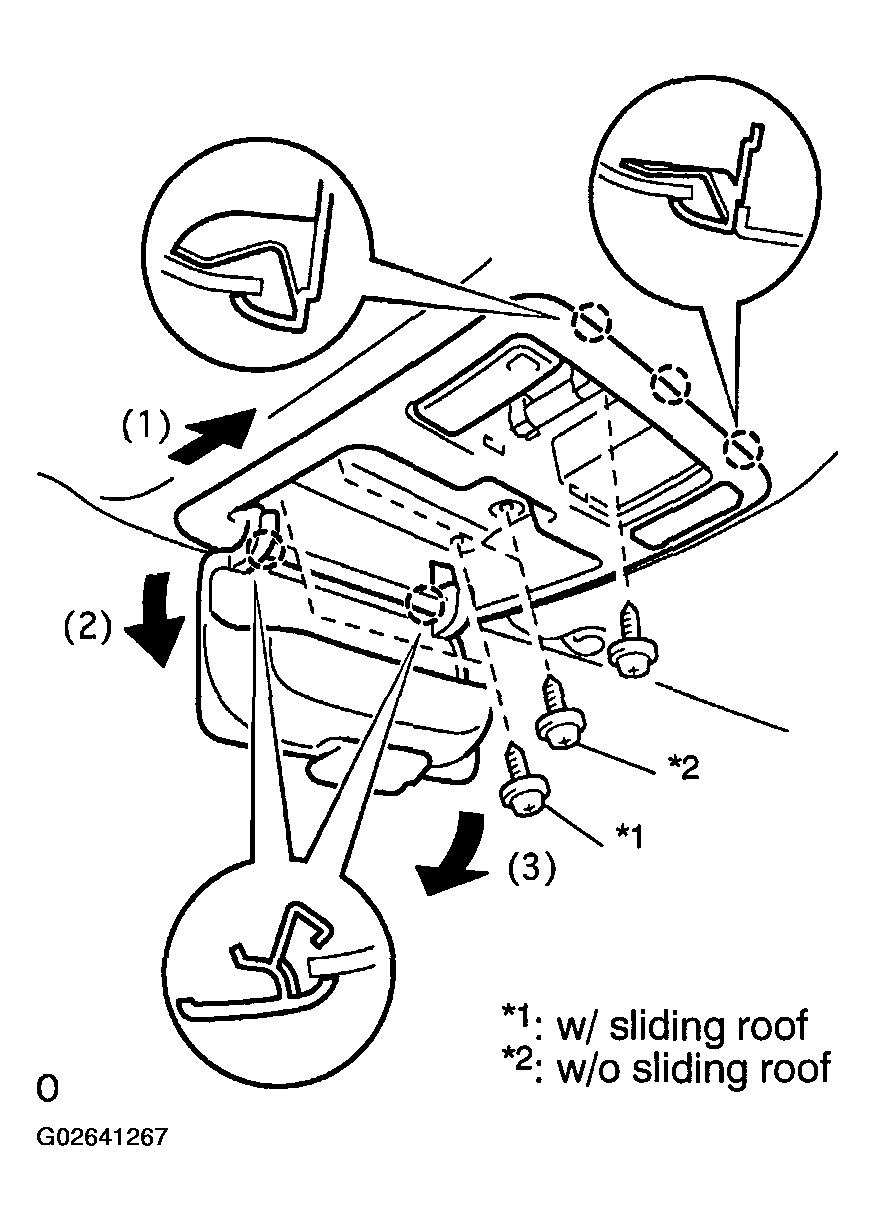

      Fig 4: Removing Roof Console Box

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 screws and roof console box, then disconnect the connector.
9. REMOVE DECK SIDE TRIM LH
   1. Remove the bolt and rear seat outer belt floor anchor.

      Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

      Fig 5: Removing Bolt And Rear Seat Outer Belt Floor Anchor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 5 screws.
   3. Using a screwdriver, pry out the deck side trim.

      HINT:

      Tape the screwdriver tip before use.

   4. LH side:

      Disconnect the connector.

10. REMOVE DECK SIDE TRIM RH

    HINT:

    Use the same procedures described for the LH side.

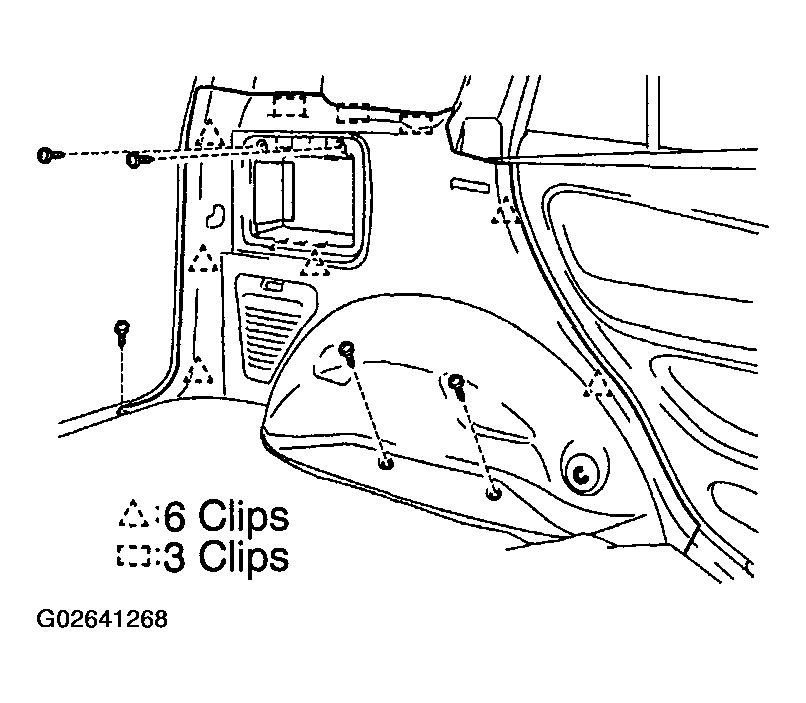

    Fig 6: Removing Deck Side Trim RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. REMOVE ROOF SIDE INNER GARNISH LH
    1. Remove the bolt and rear seat outer belt shoulder anchor.

       Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

    2. Remove the 3 clips.
    3. w/ Curtain shield airbag:

       Remove the bolt.

    4. Using a screwdriver, disengage the 5 clips and remove the roof side inner garnish.

       HINT:

       Tape the screwdriver tip before use.

12. REMOVE ROOF SIDE INNER GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

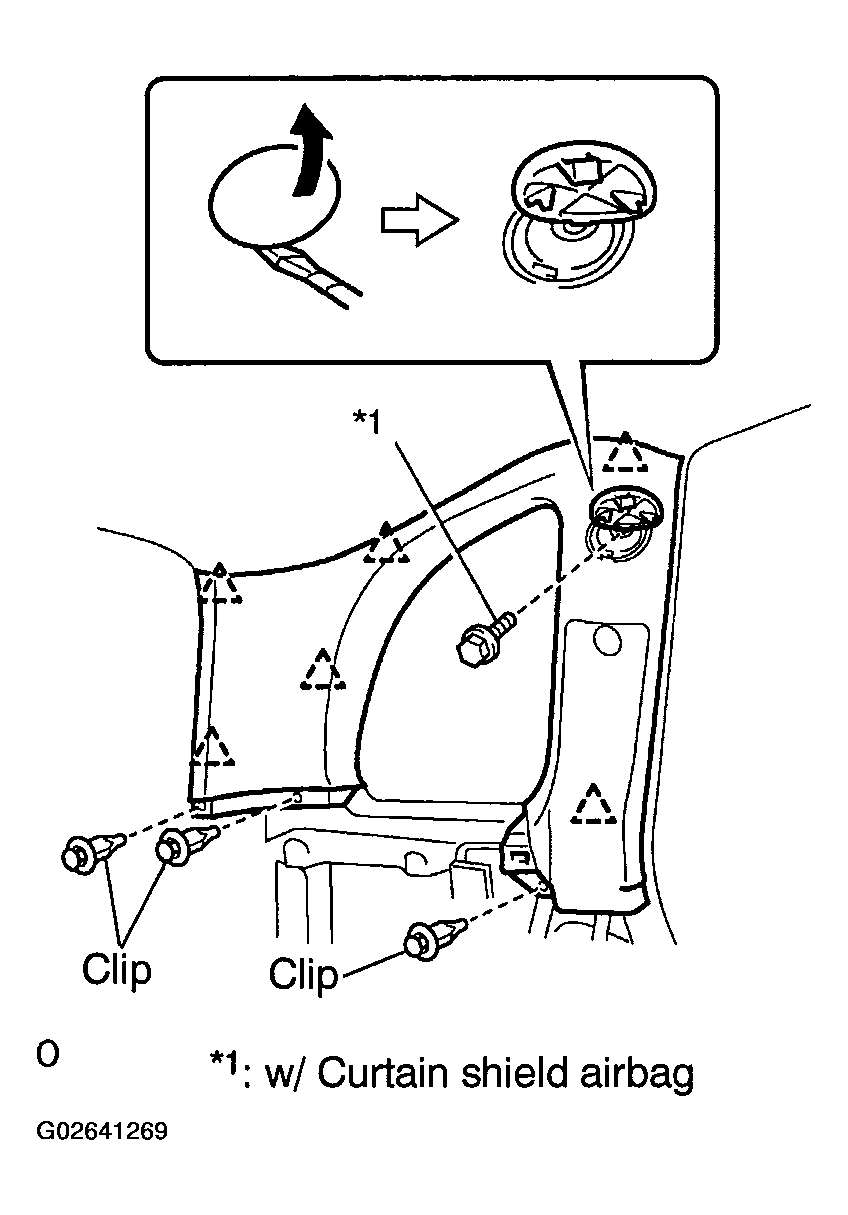

    Fig 7: Removing Roof Side Inner Garnish RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. Remove the bolt and front seat outer belt floor anchor.

       Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

    2. Pull the garnish upward to remove it.
14. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 8: Removing Center Pillar Lower Garnish RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE CENTER PILLAR UPPER GARNISH LH
    1. Remove the bolt and front seat outer belt shoulder anchor.

       Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

    2. Using a screwdriver, pry out the garnish.

       HINT:

       Tape the screwdriver tip before use.

16. REMOVE CENTER PILLAR UPPER GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

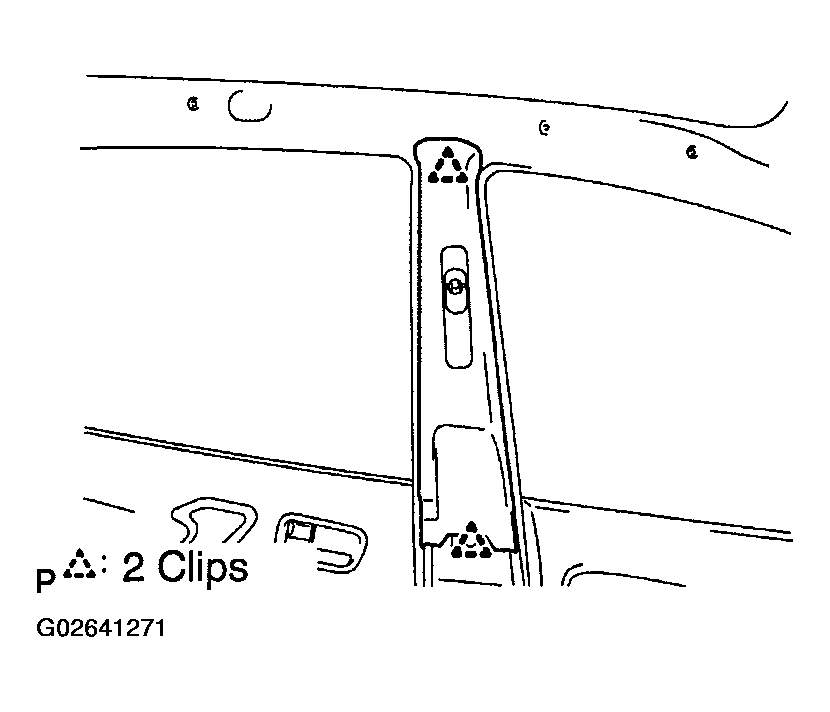

    Fig 9: Removing Center Pillar Upper Garnish RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. REMOVE FRONT PILLAR GARNISH LH
    1. Using a screwdriver, disengage the 2 clips.

       HINT:

       Tape the screwdriver tip before use.

    2. Remove the pillar garnish.
       1. Pull the pillar garnish until the clip marked A in the illustration stitches.
       2. Turn the clip marked A in the illustration 90 degrees and remove the pillar garnish.

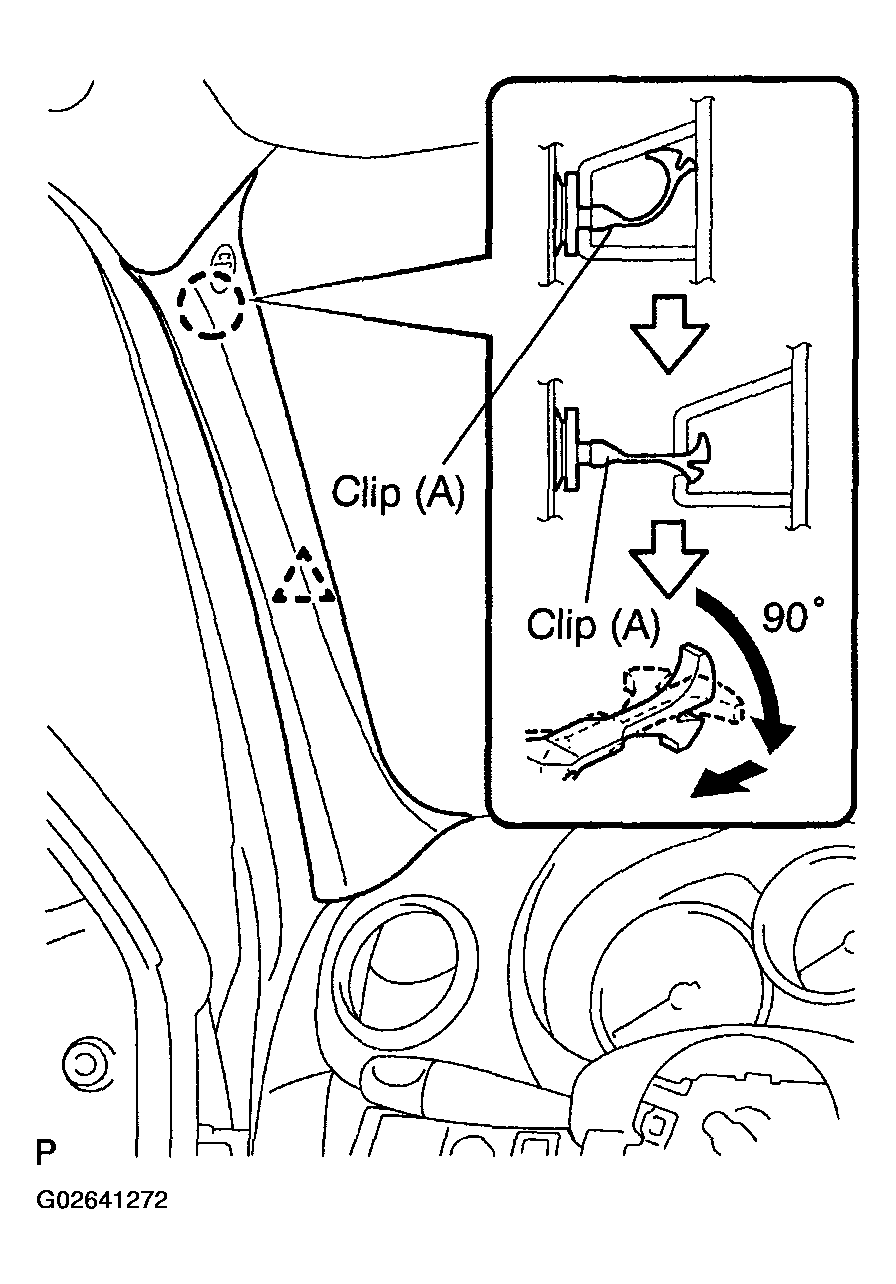

          Fig 10: Removing Front Pillar Garnish LH

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Curtain shield airbag:

       Protect the curtain shield airbag LH.

       1. Cover the airbag with cloth or a piece of nylon approximately 700 mm (27.56 in.) x 120 mm (4.72 in.) in size. Fix the ends of the cover with tape as shown in the illustration.
    NOTE: Cover the curtain shield airbag with the protective cover as soon as the front pillar garnish is removed.
18. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

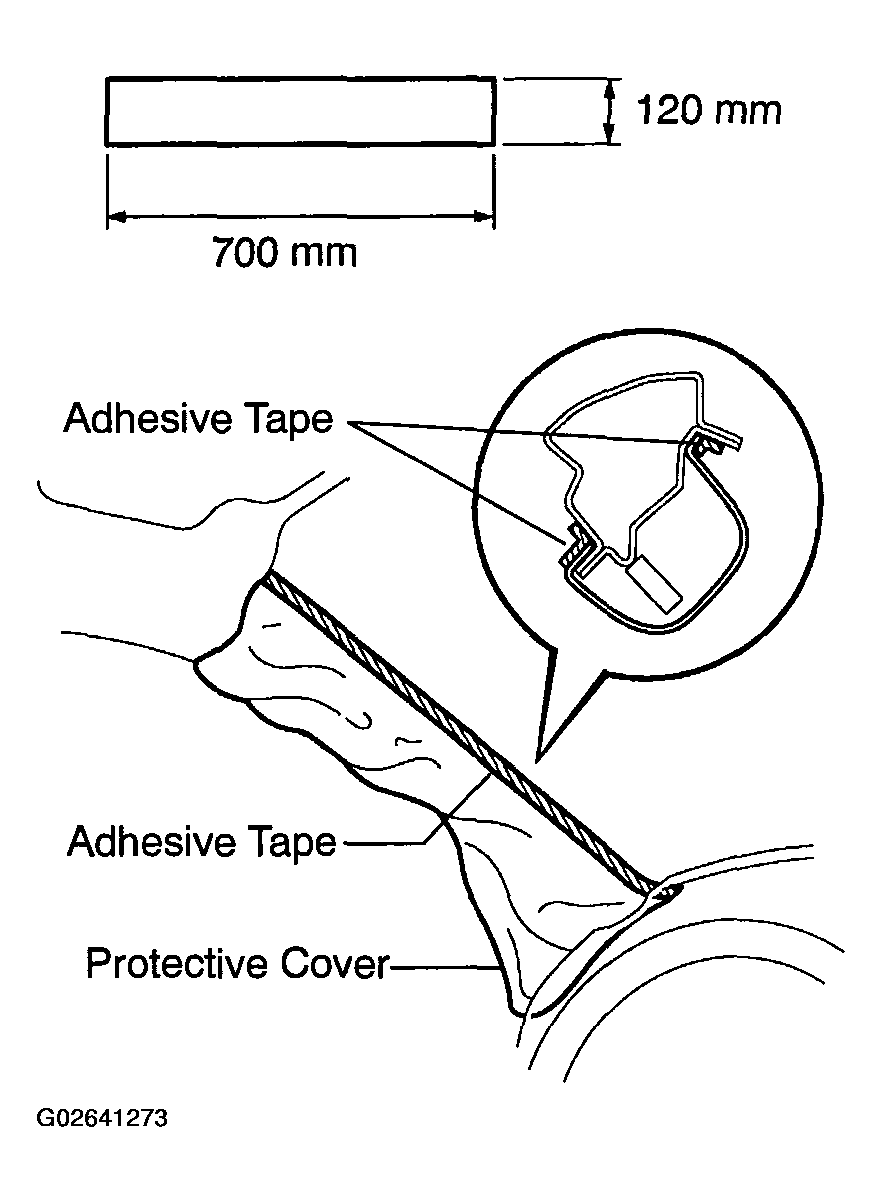

    Fig 11: Protecting Curtain Shield Airbag LH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. REMOVE ROOF HEADLINING
    1. Using a screwdriver, remove the roof headlining trim garnish.

       HINT:

       Tape the screwdriver tip before use.

    2. Remove the 2 sun visor holders.
    3. Remove the 4 room partition net hooks.
    4. w/o Curtain shield airbag:

       Remove the 4 clips and roof headlining.

    5. w/ Curtain shield airbag:

       Remove the 2 clips and roof headlining.

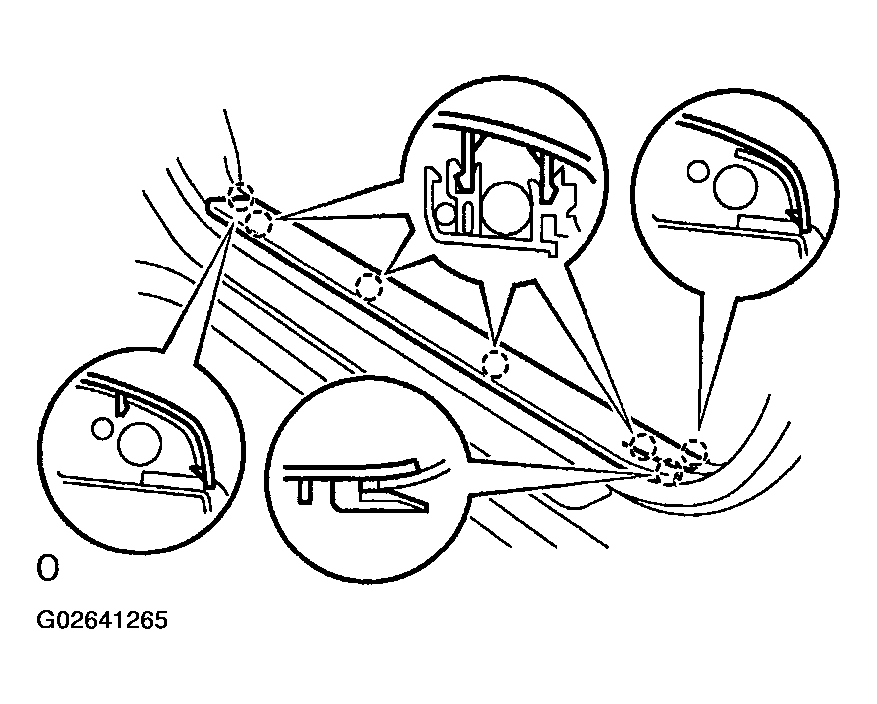

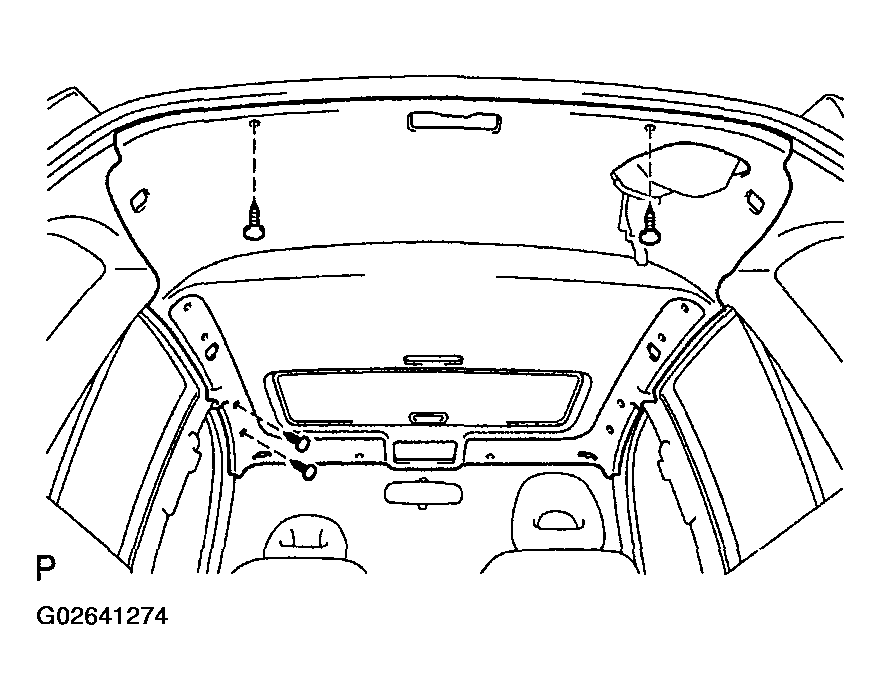

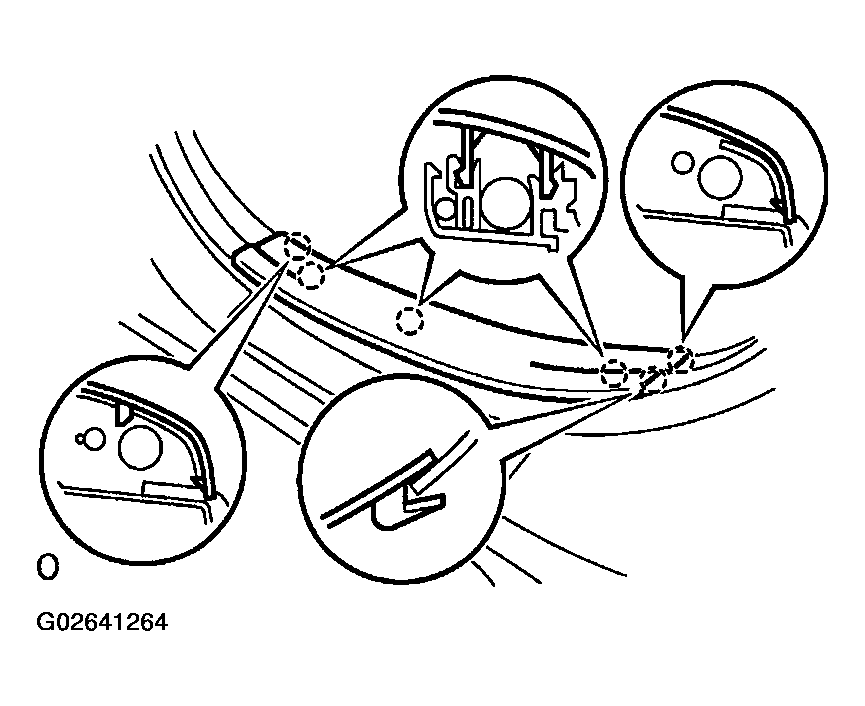

       Fig 12: Removing Roof Headlining

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
