Roof Headlining: Components

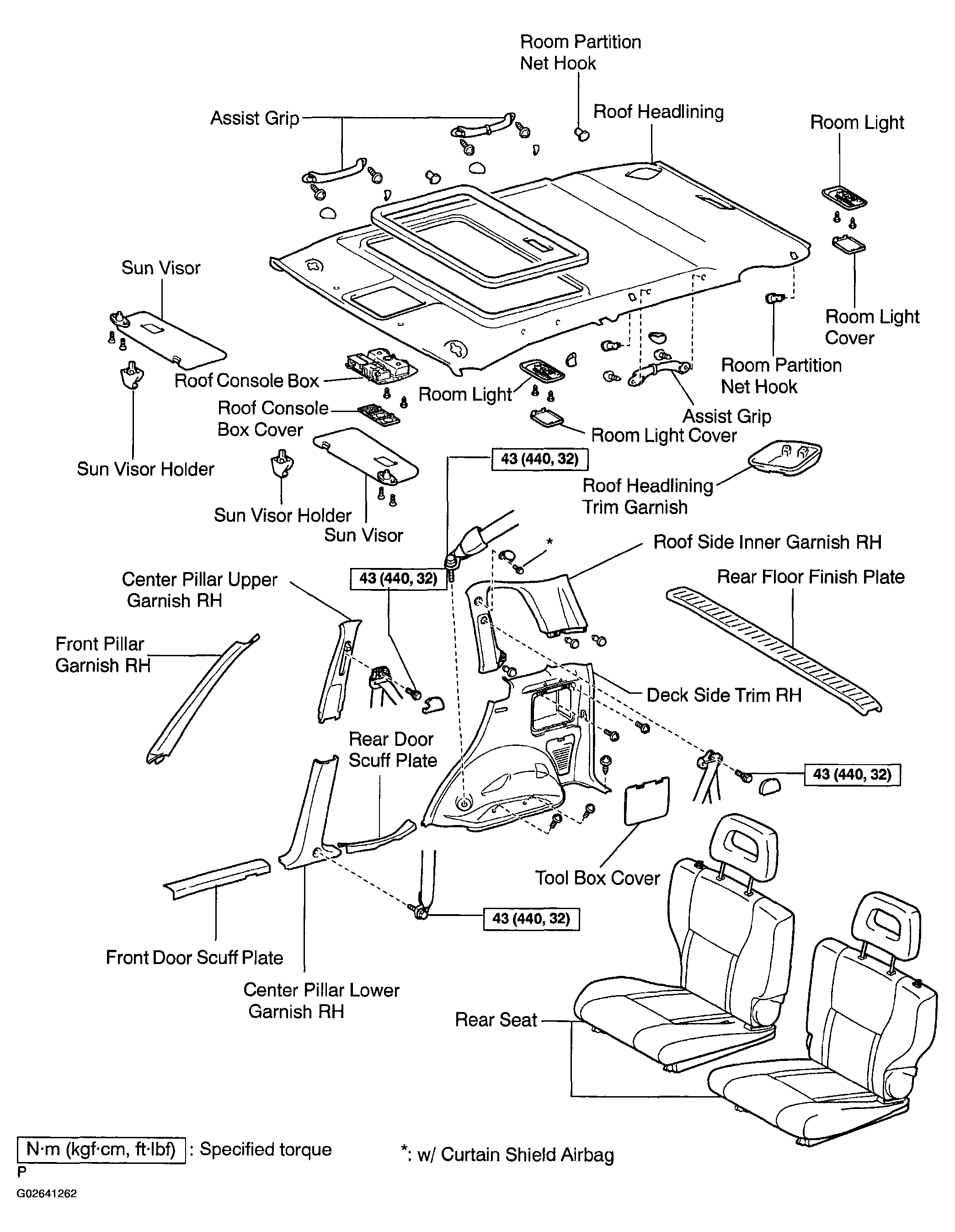

Fig 1: Identifying Roof Headlining Components

G02641262

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
