Manual Transaxle Unit (4WD): Components

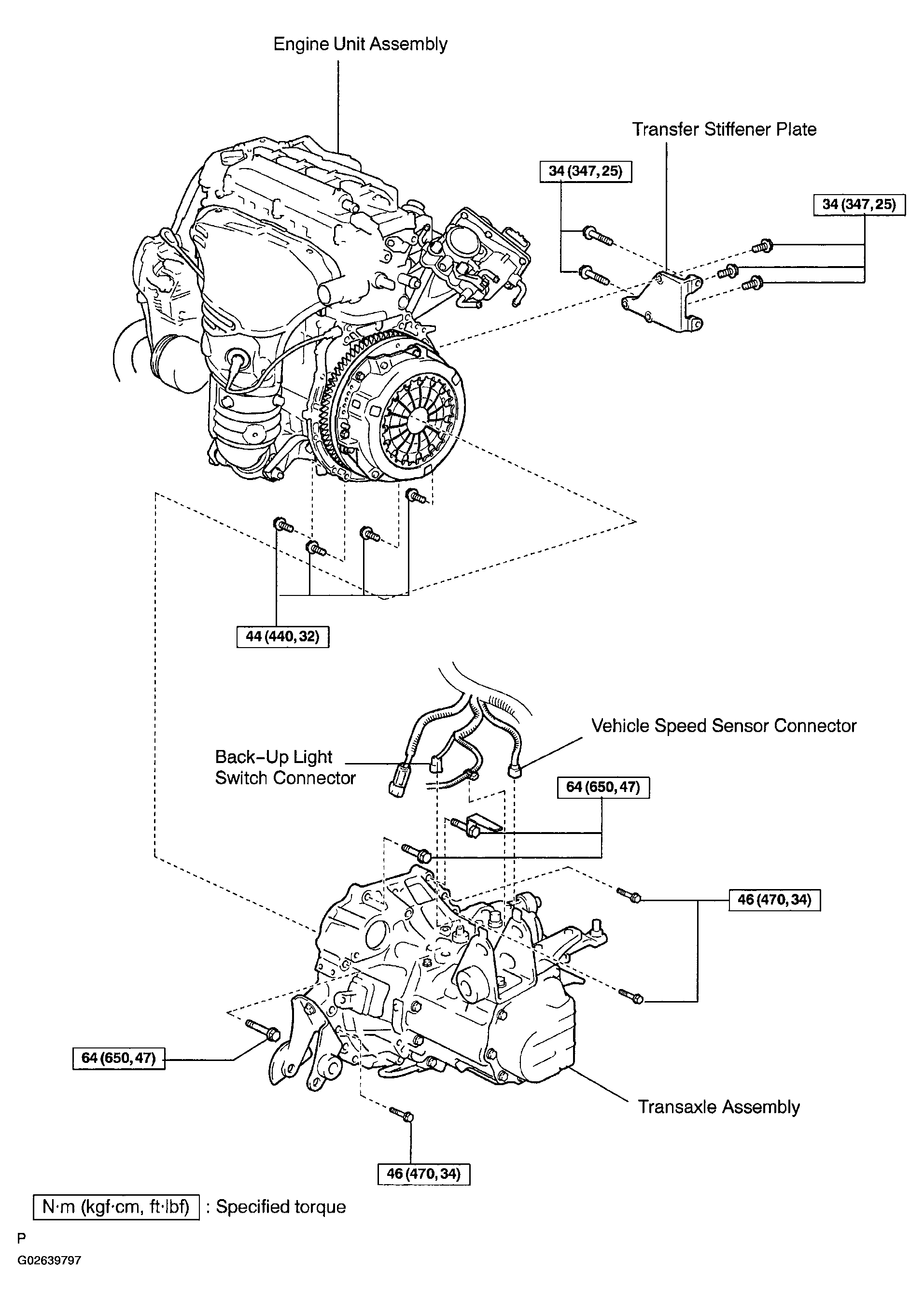

Fig 1: Exploded View Of Manual Transaxle & Torque Specifications (4WD)

G02639797

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
