Rear Axle Hub: Components

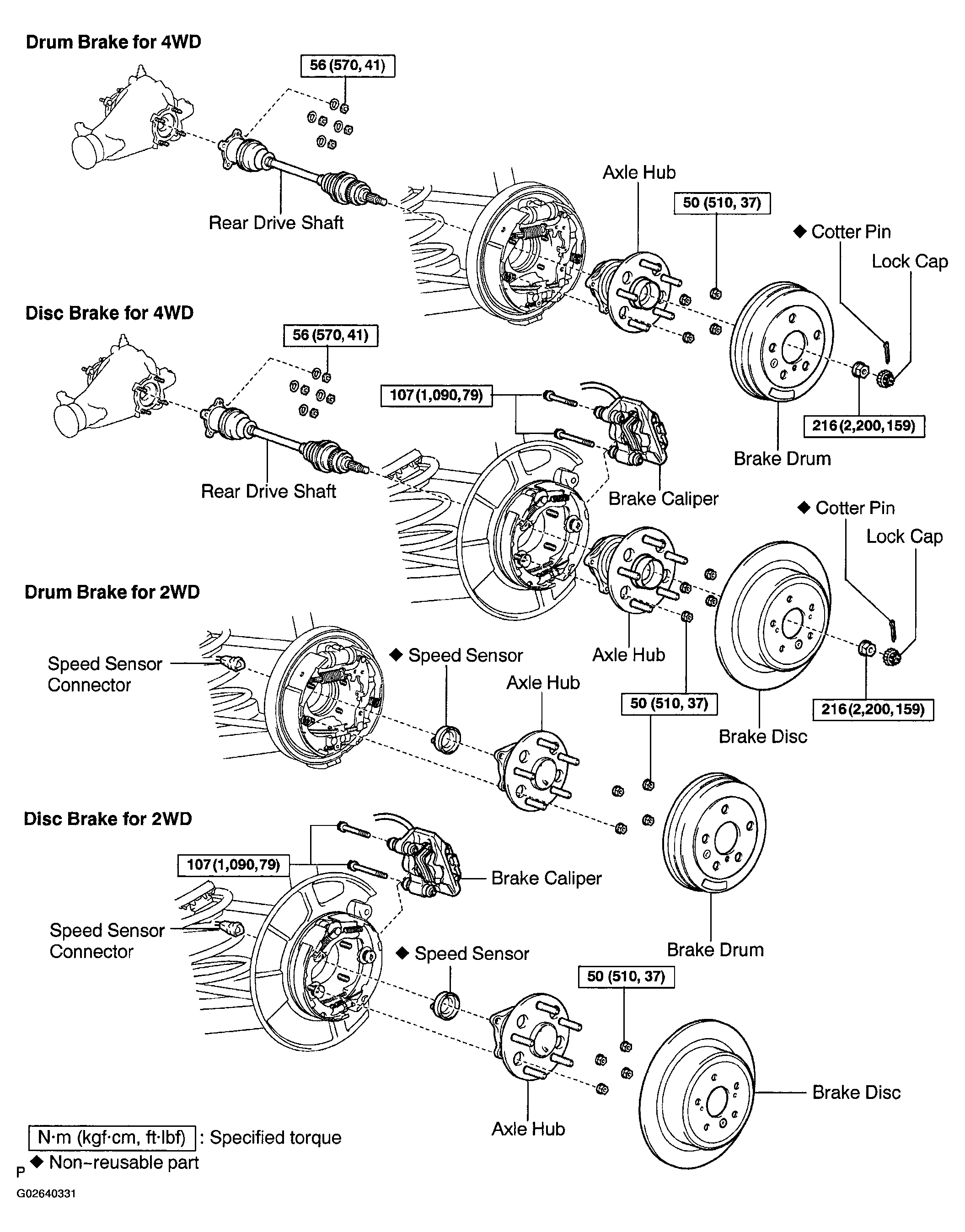

Fig 1: Rear Axle Hub Replacement Components With Torque Specifications

G02640331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
