Front Stabilizer Bar: Components

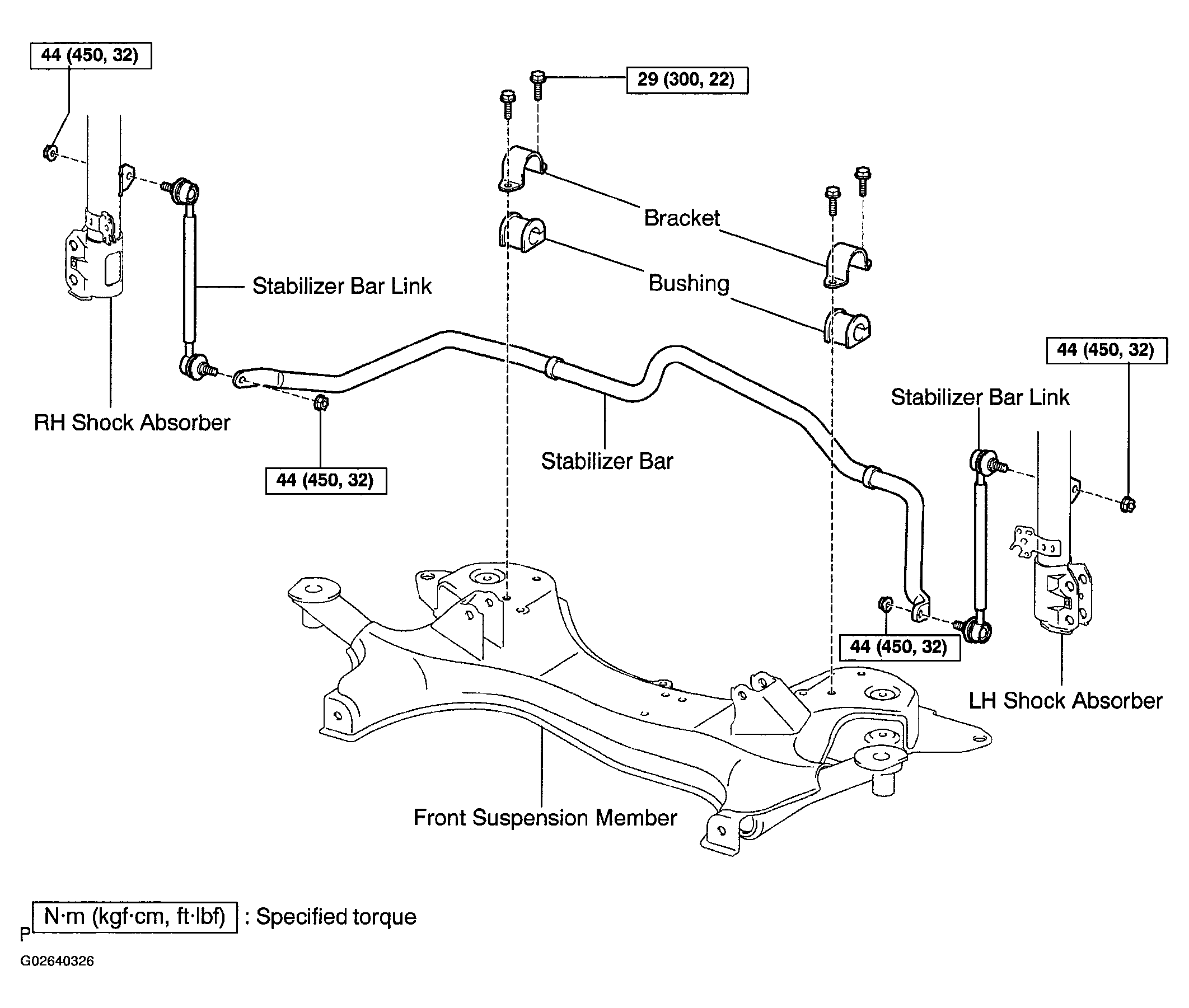

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications

G02640326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
