Home >> Toyota >> 2005 >> RAV4 Base, AWD, Standard >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension And Axle >> Front Shock Absorber >> Components

Front Shock Absorber: Components

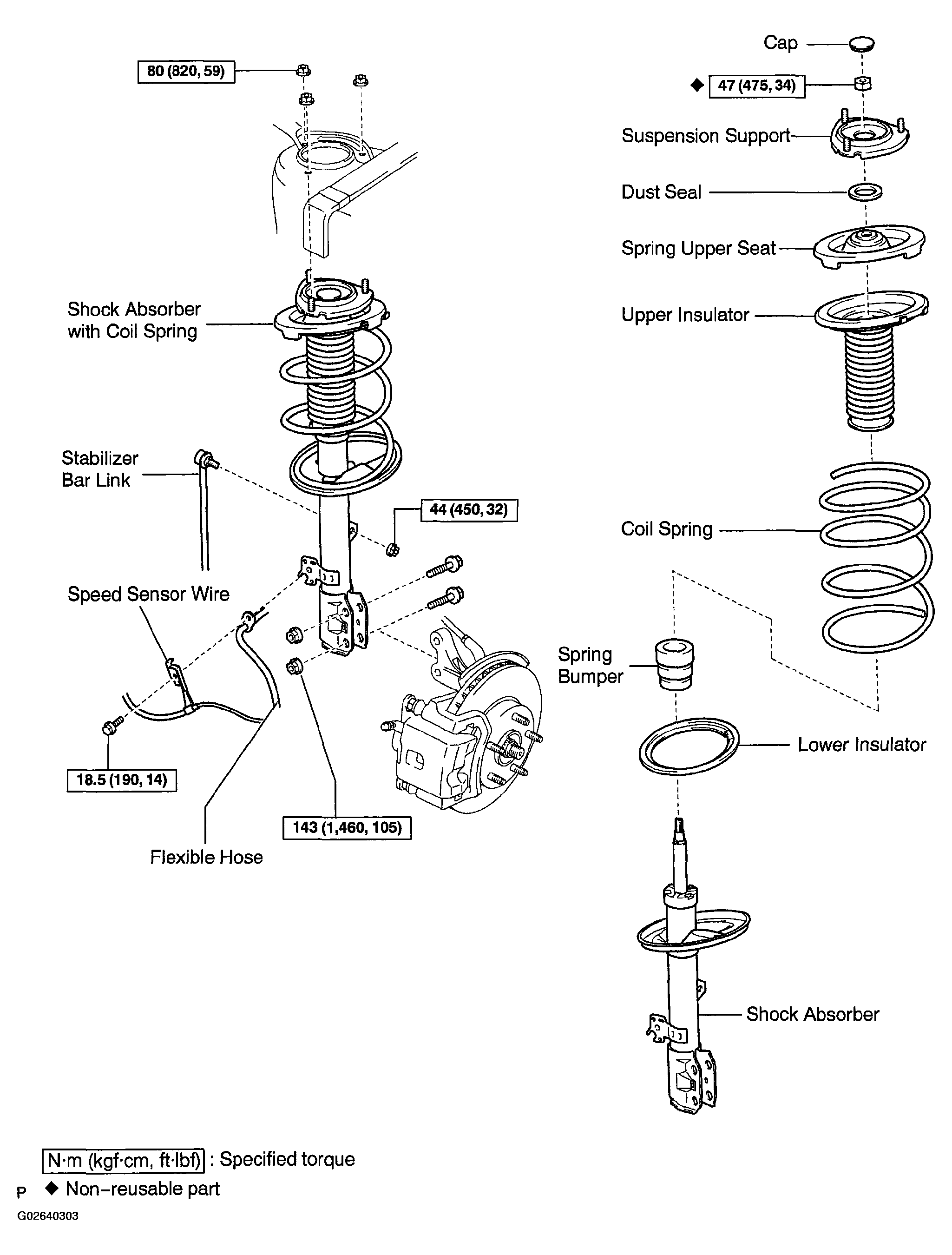

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications

G02640303

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
