Front Axle Hub: Components

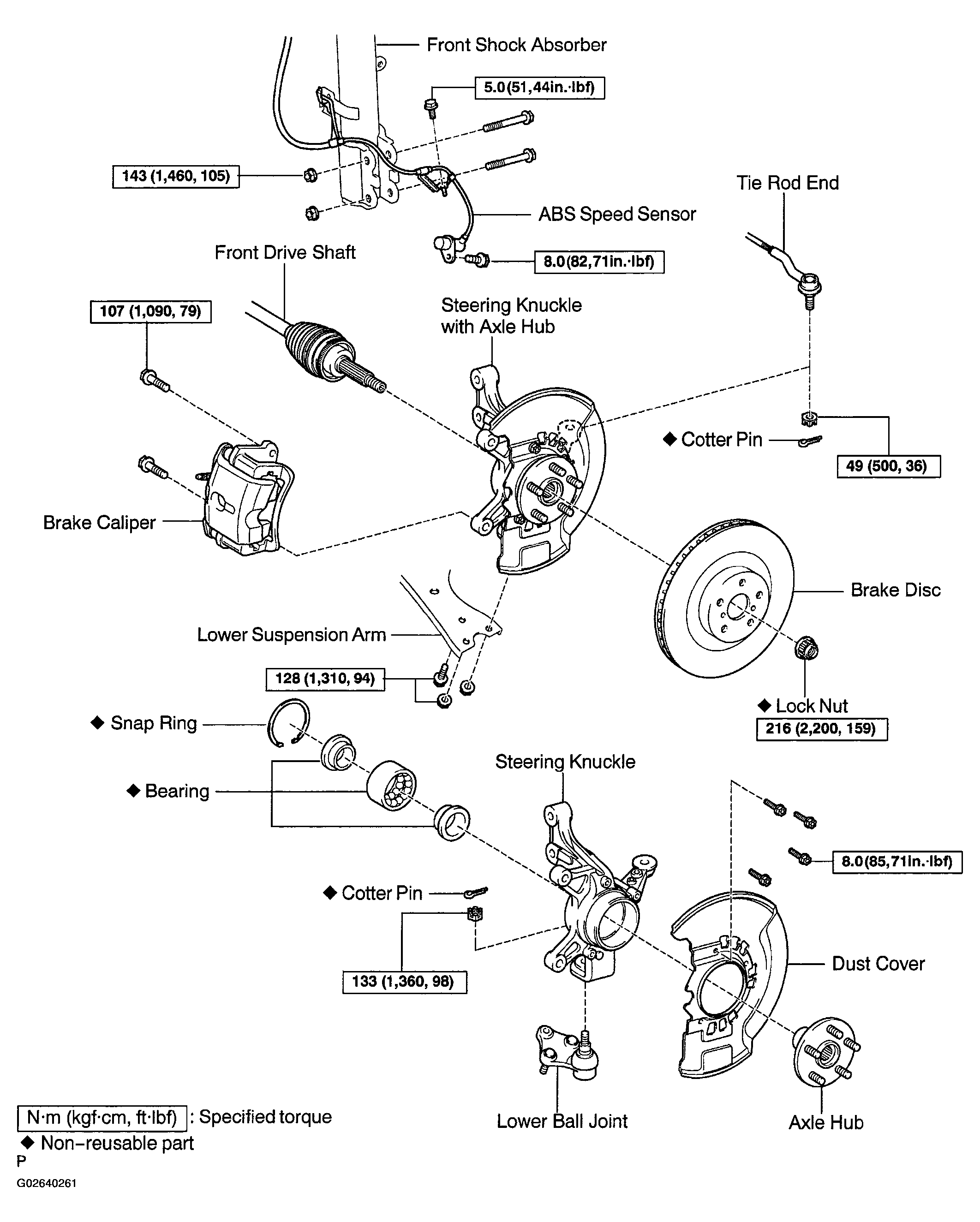

Fig 1: Front Axle Hub Replacement Components With Torque Specifications

G02640261

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
