Oil Pump: Removal

DRAIN ENGINE OIL
REMOVE FRONT EXHAUST PIPE
Remove 4 bolts, 2 compression springs, 2 gaskets and front exhaust pipe.

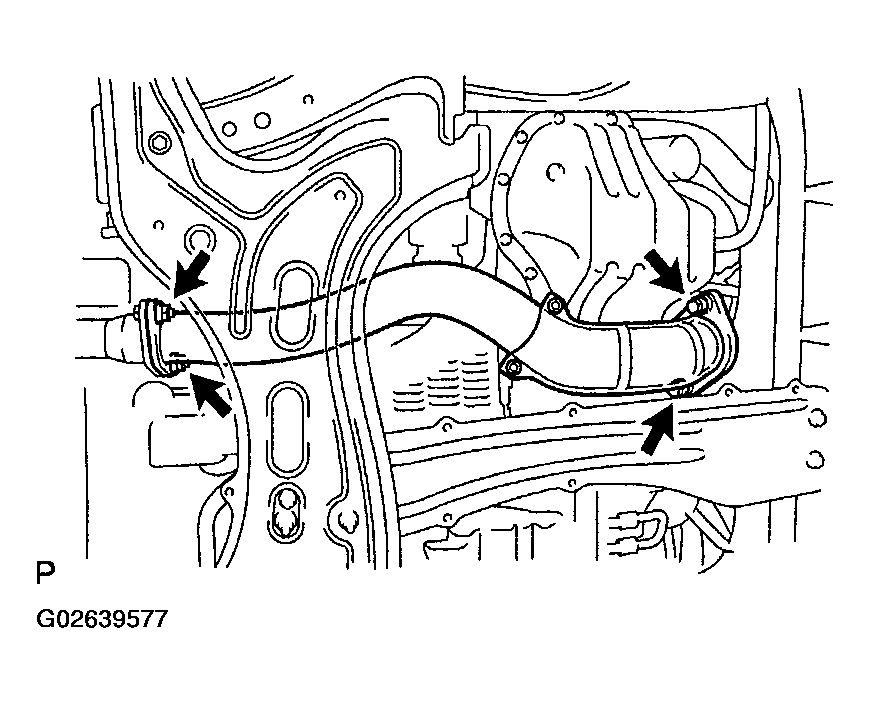

Fig 1: Removing Front Exhaust Pipe
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RH ENGINE UNDER COVER
REMOVE OIL PAN
1. Remove the 12 bolts and 2 nuts.

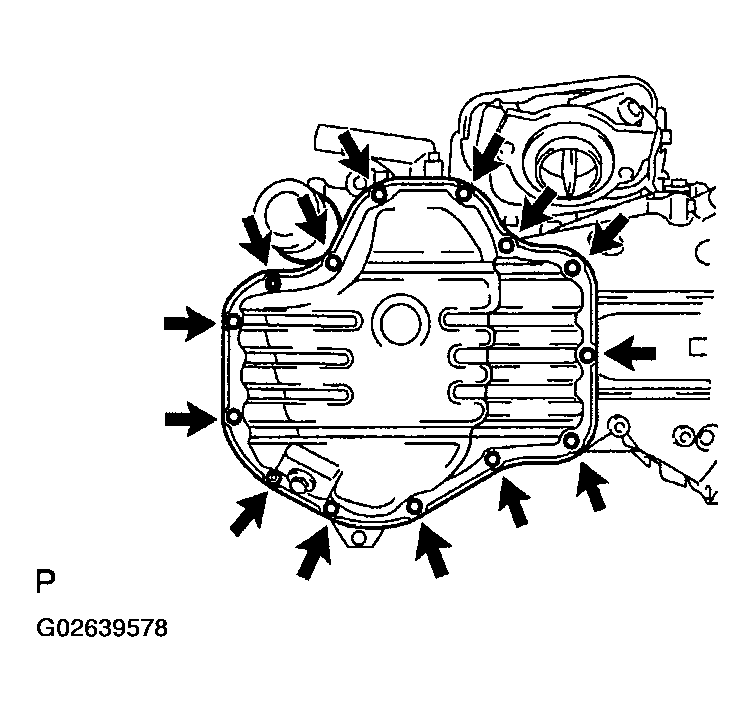

  Fig 2: Removing Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

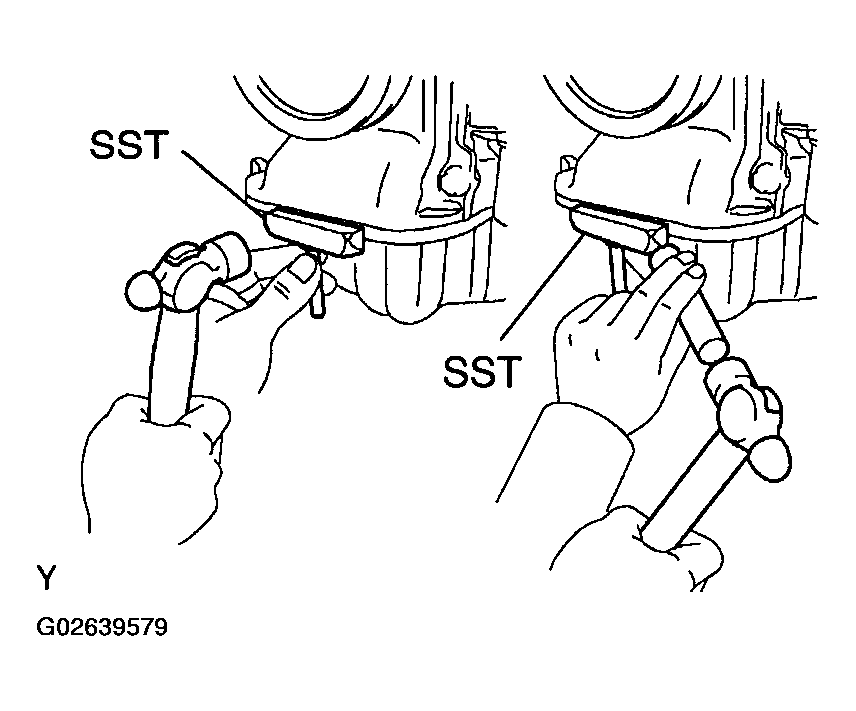

2. Insert the blade of SST between the crank case and oil pan, and timing chain cover and oil pan, cut off applied sealer and remove the oil pan.
  SST 09032-00100

  NOTE: Be careful not to damage the contact surface of the timing chain cover, crank case and oil pan.
REMOVE AIR CLEANER ASSEMBLY (See REMOVAL )
REMOVE ABS ACTUATOR (See ABS ACTUATOR )
REMOVE RH ENGINE MOUNTING INSULATOR (See REMOVAL )
REMOVE TIMING CHAIN AND CRANKSHAFT TIMING SPROCKET (See REMOVAL )
REMOVE OIL PUMP DRIVE CHAIN AND SPROCKETS
1. Set the crankshaft key into the left horizontal position.
2. Remove the bolt, chain tensioner plate and spring.

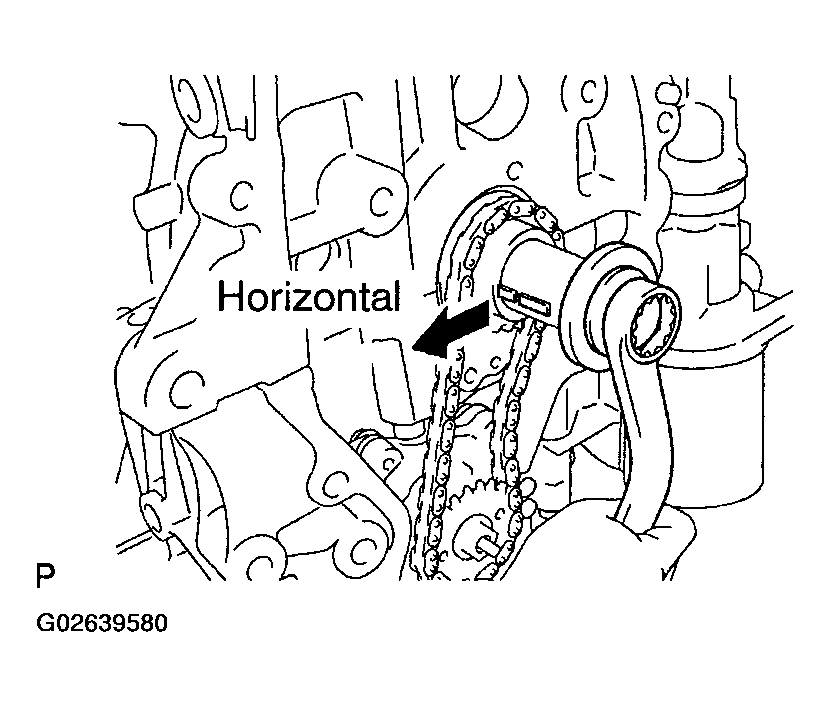

  Fig 4: Removing Oil Pump Drive Chain & Sprockets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, hold the oil pump drive shaft sprocket as shown.
4. Remove the nut, 2 sprockets and drive chain.

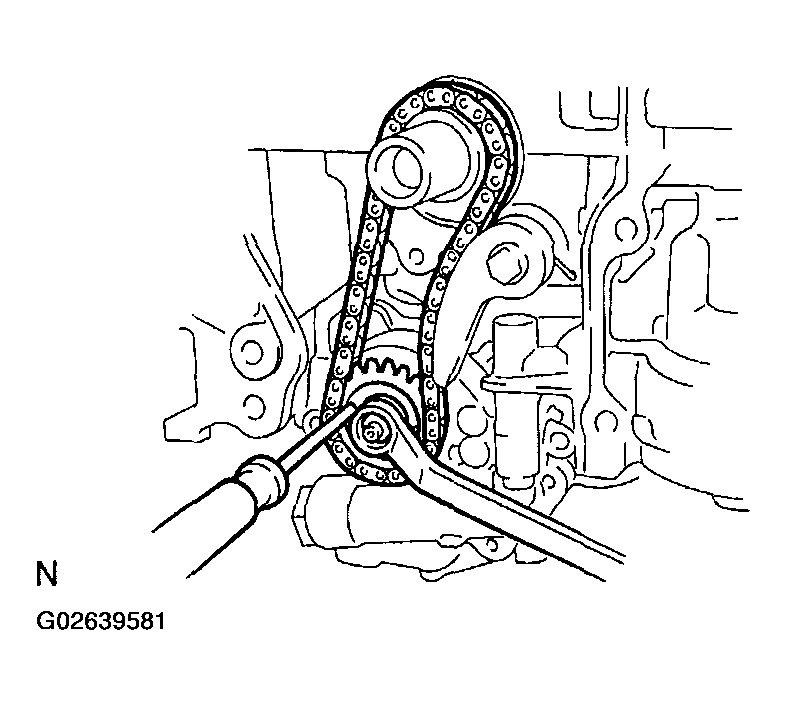

  Fig 5: Holding Oil Pump Drive Shaft Sprocket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL PUMP
Remove the 3 bolts, oil pump and gasket.

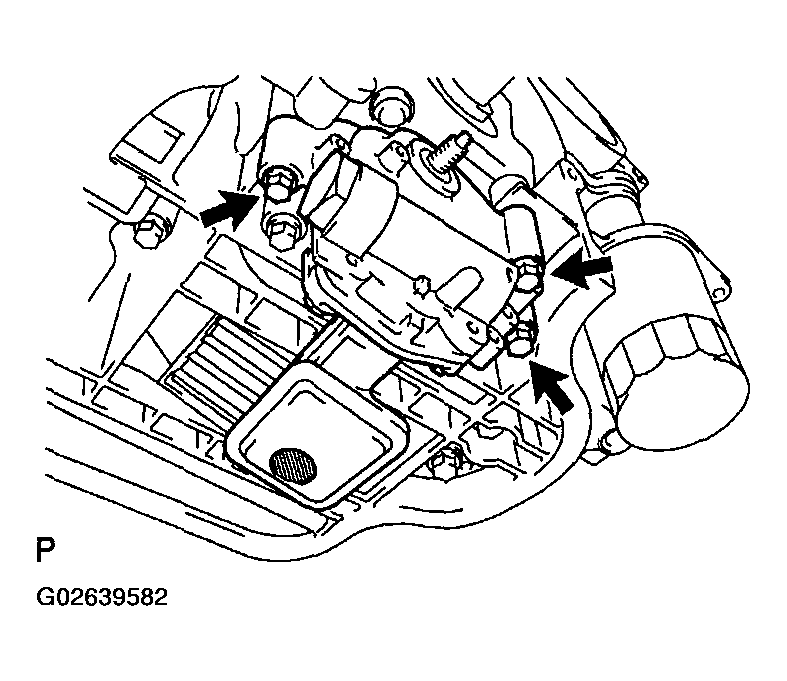

Fig 6: Removing Oil Pump & Gasket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
