Engine Room Relay Block
The engine room relay block is located on the left side of the engine compartment. See Fig 1.

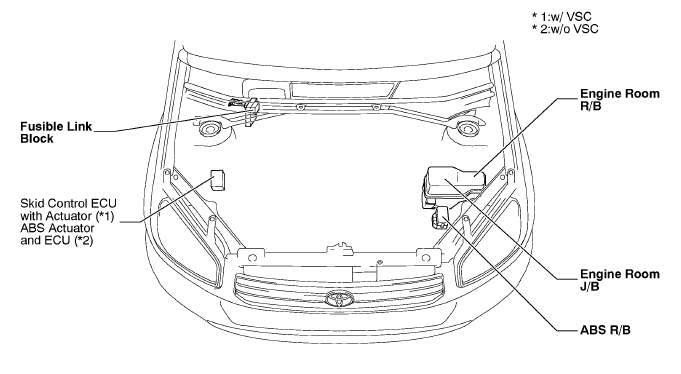

Fig 1: Locating Engine Room Relay Block, Engine Room Junction Block, ABS Relay Block & Fusible Link Block
FUSIBLE LINK BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 80A | MAIN3 | Front Fog Light Rear Window Defogger and Mirror Heater |
| 80A | MAIN4 | Front Fog Light Horn Rear Window Defogger and Mirror Heater Wireless Door Lock Control |
| 100A | MAIN1 | Electronically Controlled Transmission and A/T Indicator Engine Control Starting and Ignition |
| 140A | ALT | Charging Front Fog Light Horn Rear Window Defogger and Mirror Heater Wireless Door Lock Control |
ENGINE ROOM RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ST Relay |
| H-LP Relay |
ENGINE ROOM RELAY BLOCK FUSE IDENTIFICATION LEGEND
| Fuses | System | |
|---|---|---|
| 5A | ST | Electronically Controlled Transmission and A/T Indicator Engine Control Starting and Ignition |
| 10A | ETCS | Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control |
| 15A | H-LP LH | Headlight |
| 15A | H-LP RH | Headlight |
