Engine Room Junction Block

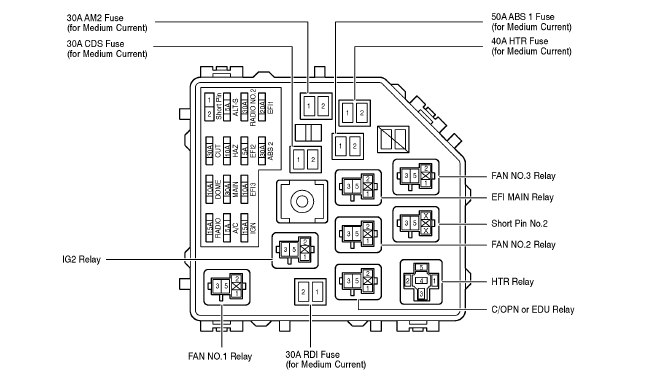

The engine room junction block is located on the left side of the engine compartment. See Figure.
ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| IG2 Relay |
| Fan No.3 Relay |
| EFI Main Relay |
| Fan No.2 Relay |
| HTR Relay |
| C/OPN or EDU Relay |
| Fan No.1 Relay |
ENGINE ROOM JUNCTION BLOCK FUSE IDENTIFICATION LEGEND
| Fuses | System | |
|---|---|---|
| 5A | A/C | Air Conditioning |
| 5A | ALT-S | Charging |
| 5A | EFI2 | Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control |
| 10A | DOME | Clock Combination Meter Door Lock Control Engine Immobilizer System Garage Door Opener Headlight Illumination Interior Light Key Reminder and Light Reminder Moon Roof Power Window Seat Belt Warning Taillight VSC and Tire Pressure Warning System (w/ VSC) Wireless Door Lock Control |
| 10A | EFI3 | Engine Control |
| 10A | HAZ | Turn Signal and Hazard Warning Light |
| 15A | IGN | Engine Control Starting and Ignition |
| 15A | RADIO | Audio System (Except JBL) Audio System (JBL) |
| 20A | EFI1 | Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control |
| 30A | ABS 2 | ABS and Tire Pressure Warning System (w/o VSC) VSC and Tire Pressure Warning System (w/ VSC) |
| 30A | AM2 | Electronically Controlled Transmission and A/T Indicator Engine Control Starting and Ignition |
| 30A | CDS | Radiator Fan and Condenser Fan |
| 30A | RADIO NO. 2 | Audio System (JBL) |
| 30A | RDI | Radiator Fan and Condenser Fan |
| 40A | HTR | Air Conditioning |
| 50A | ABS 1 | ABS and Tire Pressure Warning System (w/o VSC) VSC and Tire Pressure Warning System (w/ VSC) |
