Driver Side Junction Block

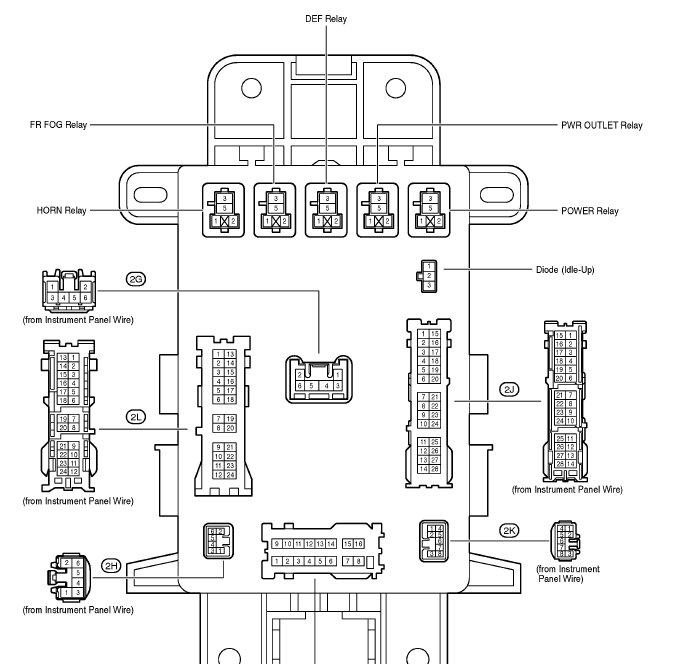

The driver side junction block is located under the instrument panel on the left side. See Fig 1.
INSTRUMENT PANEL RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Taillight Relay |
| Turn Signal Flasher Relay |
DRIVER SIDE JUNCTION BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | ACC | Air Conditioning Audio System (Except JBL) Audio System (JBL) Clock Door Lock Control Interior Light Remote Control Mirror Shift Lock Wireless Door Lock Control |
| 7.5A | OBD | Engine Control |
| 7.5A | PANEL | Air Conditioning Clock Combination Meter Front Fog Light Illumination Key Reminder and Light Reminder Rear Window Defogger and Mirror Heater Taillight |
| 7.5A | TAIL | Engine Control Taillight |
| 10A | ECU IG | ABS and Tire Pressure Warning System (w/o VSC) Air Conditioning Automatic Glare-Resistant EC Mirror Combination Meter Cruise Control Engine Control Key Reminder and Light Reminder Power Window Rear Window Defogger and Mirror Heater Seat Belt Warning Shift Lock SRS Turn Signal and Hazard Warning Light VSC and Tire Pressure Warning System (w/ VSC) |
| 10A | GAUGE | ABS and Tire Pressure Warning System (w/o VSC) Air Conditioning Back-Up Light Charging Combination Meter Cruise Control Door Lock Control Electronically Controlled Transmission and A/T Indicator Engine Control Headlight Illumination Interior Light Moon Roof Power Window Radiator Fan and Condenser Fan Taillight VSC and Tire Pressure Warning System (w/ VSC) Wireless Door Lock Control |
| 10A | HORN | Horn |
| 10A | IG2 | ABS and Tire Pressure Warning System (w/o VSC) Charging Combination Meter Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control Engine Immobilizer System SRS Starting and Ignition VSC and Tire Pressure Warning System (w/ VSC) |
| 10A | MIR HTR | Rear Window Defogger and Mirror Heater |
| 10A | S-HTR | Seat Heater |
| 10A | STOP | ABS and Tire Pressure Warning System (w/o VSC) Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control Shift Lock Stop Light VSC and Tire Pressure Warning System (w/ VSC) |
| 15A | CIG | Cigarette Lighter |
| 15A | FR FOG | Front Fog Light |
| 15A | POWER OUTLET | Power Outlet |
| 15A | RR WIP | Rear Wiper and Washer |
| 15A | TAIL&PANEL | Air Conditioning Clock Front Fog Light Illumination Key Reminder and Light Reminder Rear Window Defogger and Mirror Heater Taillight |
| 20A | DEF | Engine Control Rear Window Defogger and Mirror Heater |
| 20A | DOOR | Door Lock Control Interior Light Moon Roof Power Window Wireless Door Lock Control |
| 25A | WIP | Front Wiper and Washer |
| 30A | POWER | Moon Roof Power Window |
| 40A | AM1 | Rear Window Defogger and Mirror Heater |
DRIVER SIDE JUNCTION BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Horn Relay |
| FR Fog Relay |
| DEF Relay |
| PWR Outlet Relay |
| Power Relay |
