Abs Relay Block

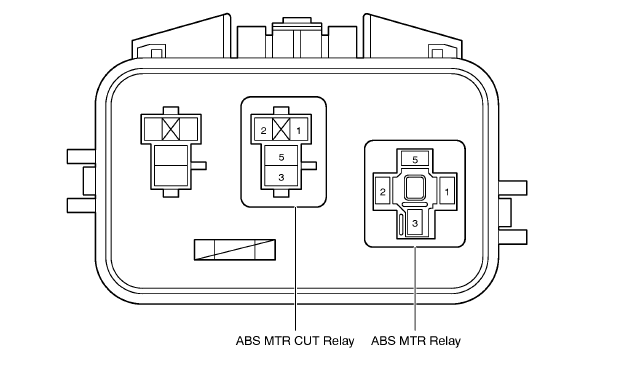

The ABS relay block is located on the left side of the engine compartment in front of the engine compartment junction block. See Figure.
ABS RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ABS MTR CUT Relay |
| ABS MTR Relay |
The ABS relay block is located on the left side of the engine compartment in front of the engine compartment junction block. See Figure.
| RELAY DESCRIPTION |
|---|
| ABS MTR CUT Relay |
| ABS MTR Relay |
