W/ Daytime Running Light System Headlight And Taillight System

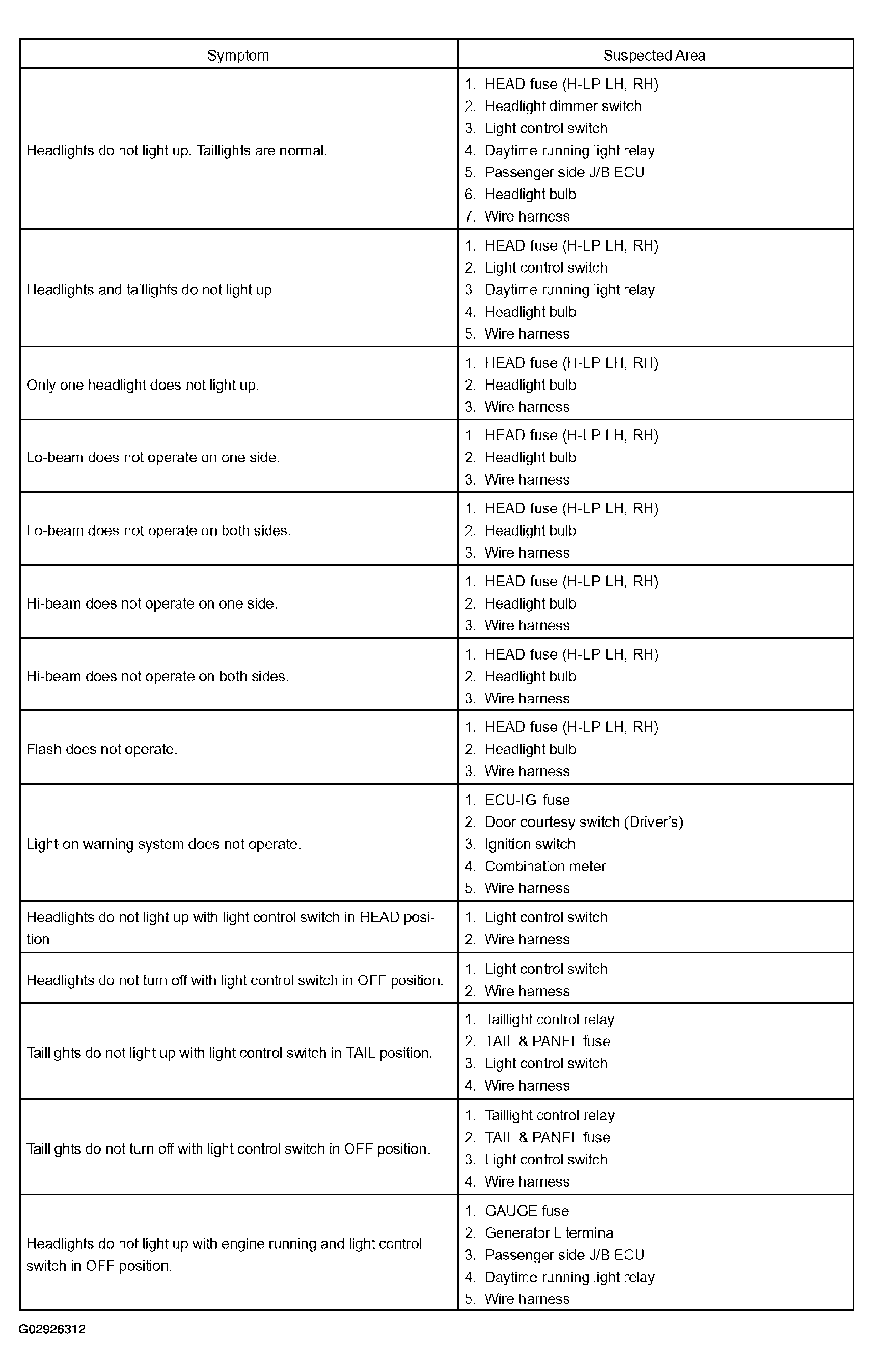

Fig 1: Trouble Shooting Table - Headlight And Taillight System (w/ Daytime Running Light System)
G02926312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
