Repair Procedures

HINT:

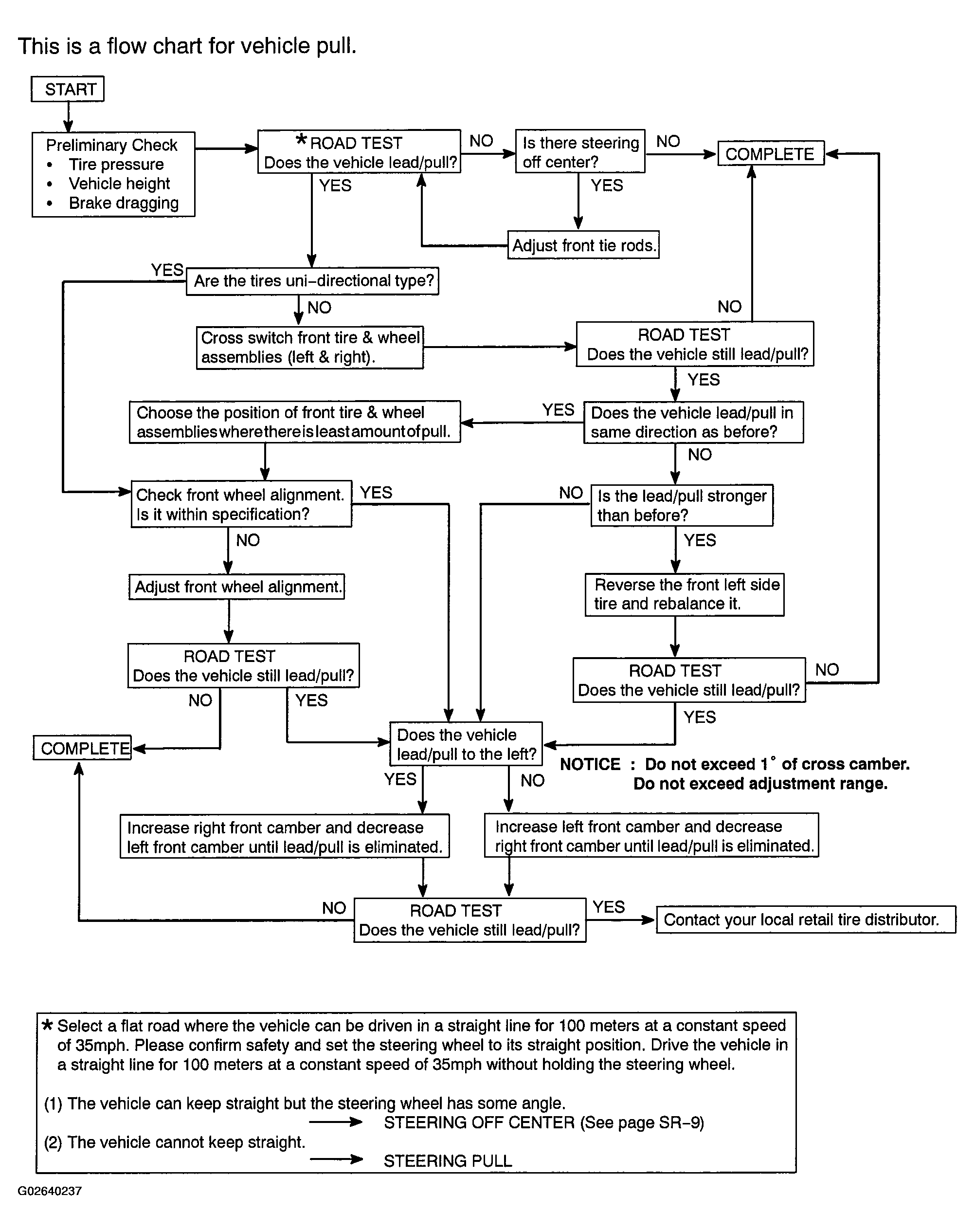

This is a flow chart for vehicle pull.

Fig 1: Repair Procedure Flow Chart

G02640237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
