Front Drive Shaft: Components

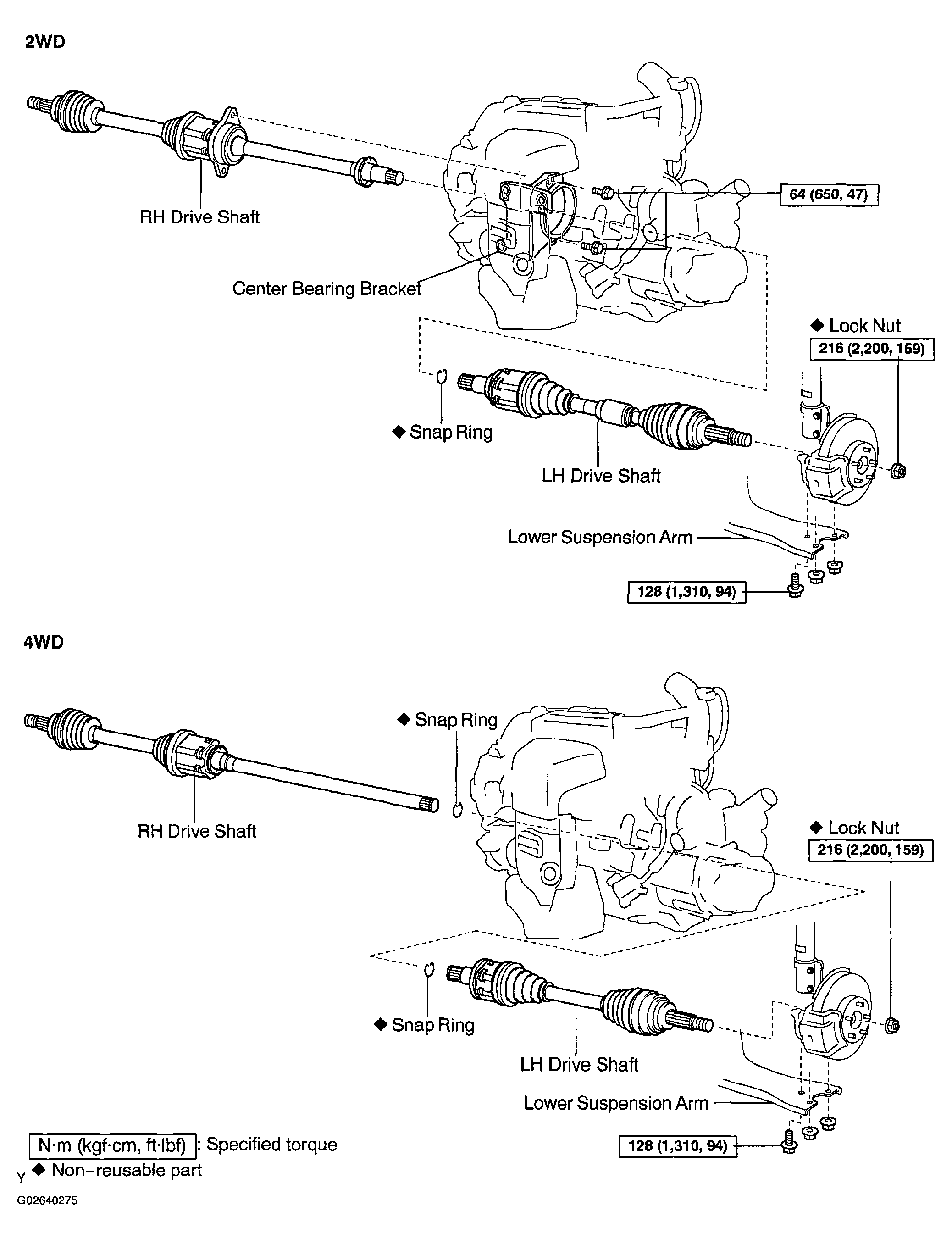

Fig 1: Front Drive Shaft Replacement Components With Torque Specifications (1 Of 2)
G02640275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

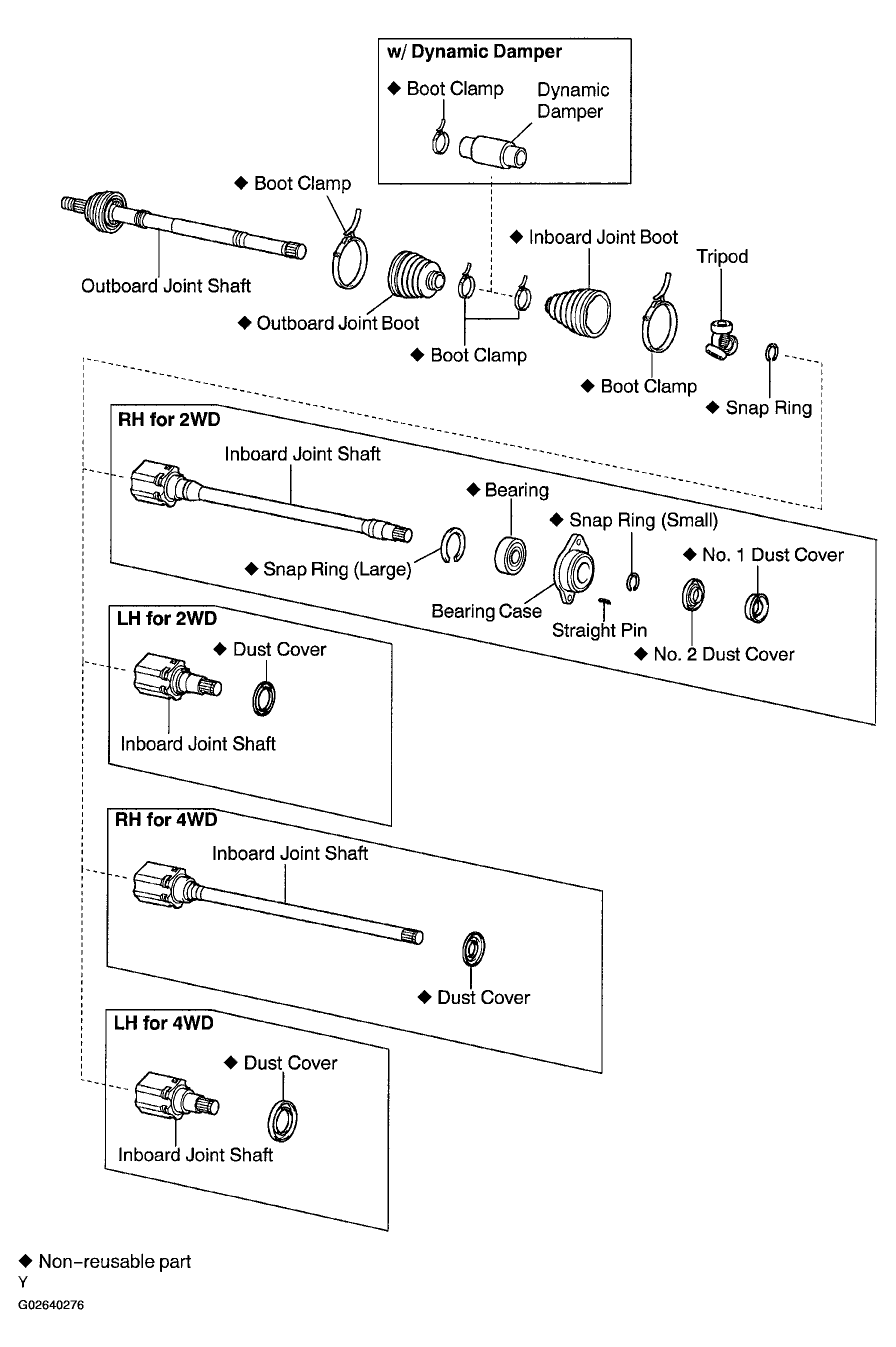

Fig 2: Identifying Front Drive Shaft Components (2 Of 2)
G02640276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
