Electric Cooling Fan: Components

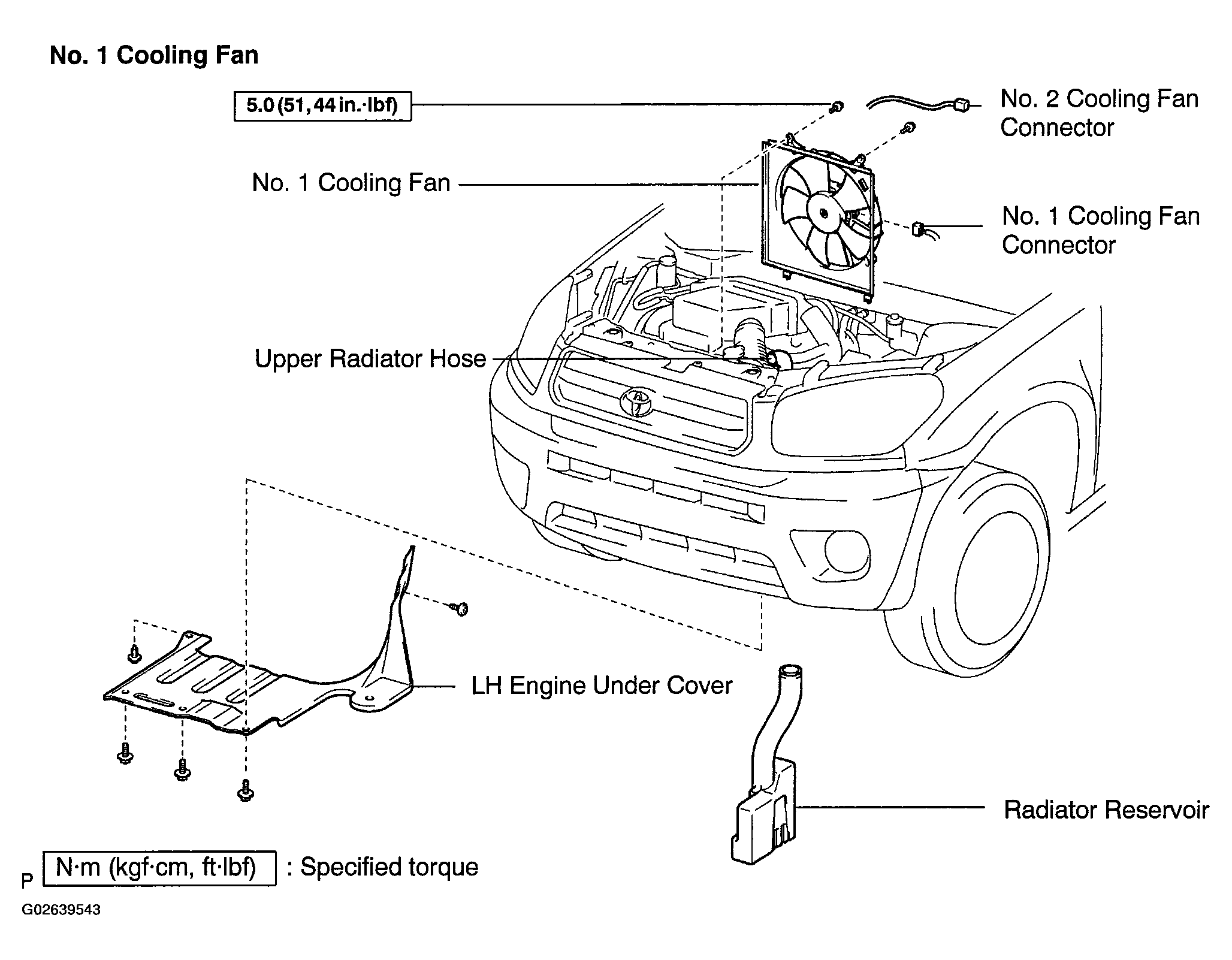

Fig 1: Exploded View Of Electric Cooling Fan Components & Torque Specifications (1 Of 4)
G02639543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

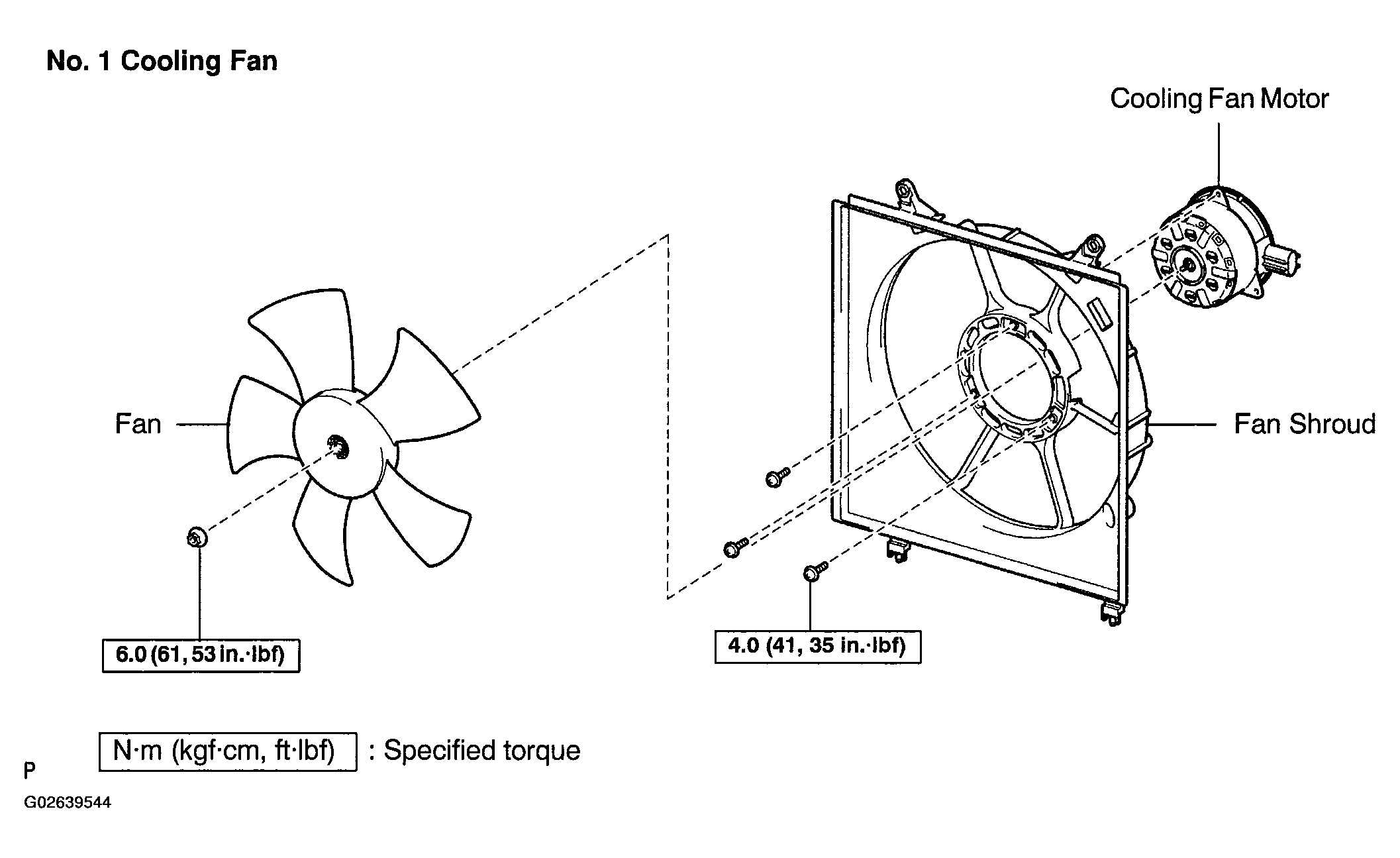

Fig 2: Exploded View Of Electric Cooling Fan Components & Torque Specifications (2 Of 4)
G02639544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

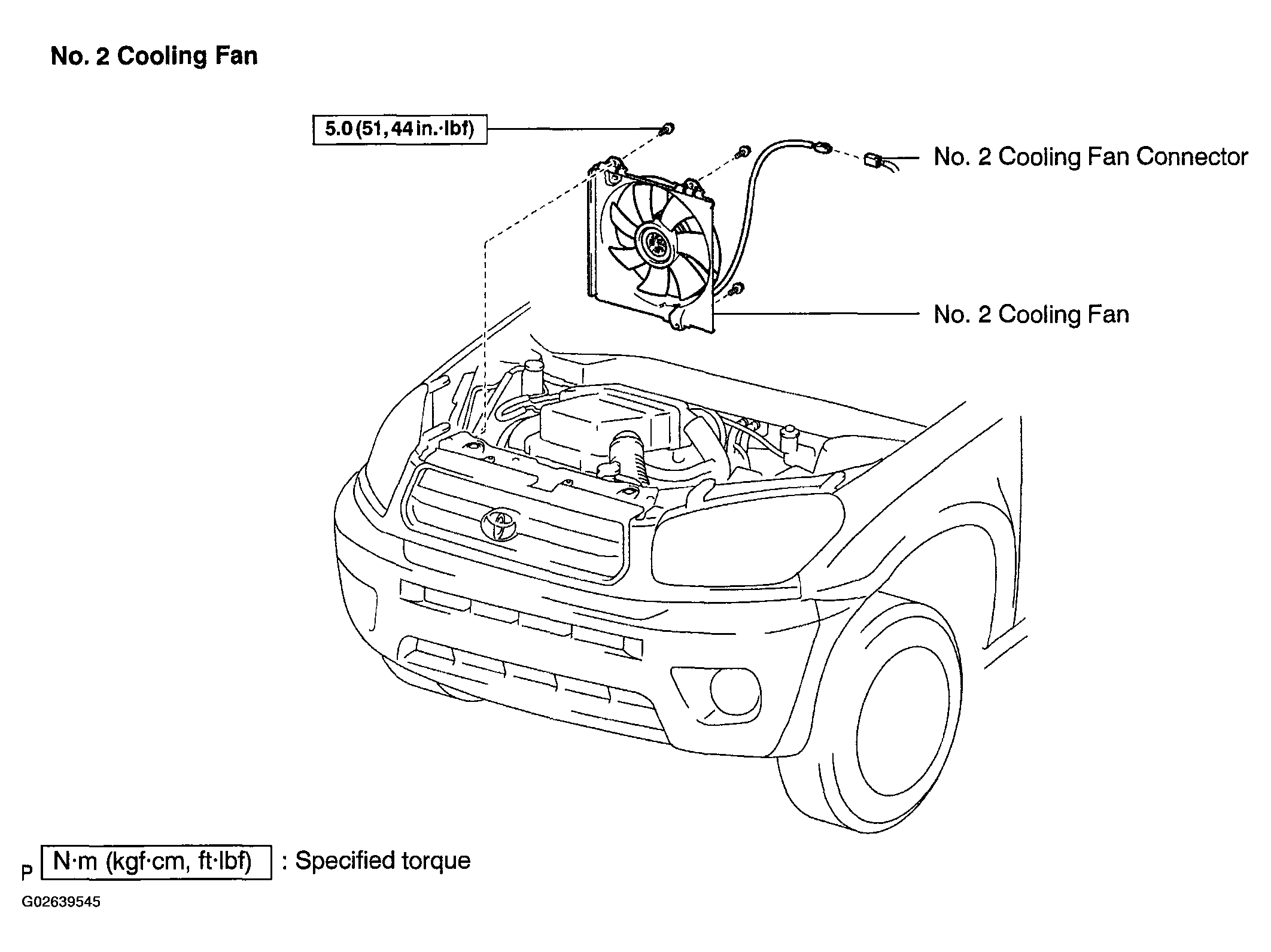

Fig 3: Exploded View Of Electric Cooling Fan Components & Torque Specifications (3 Of 4)
G02639545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

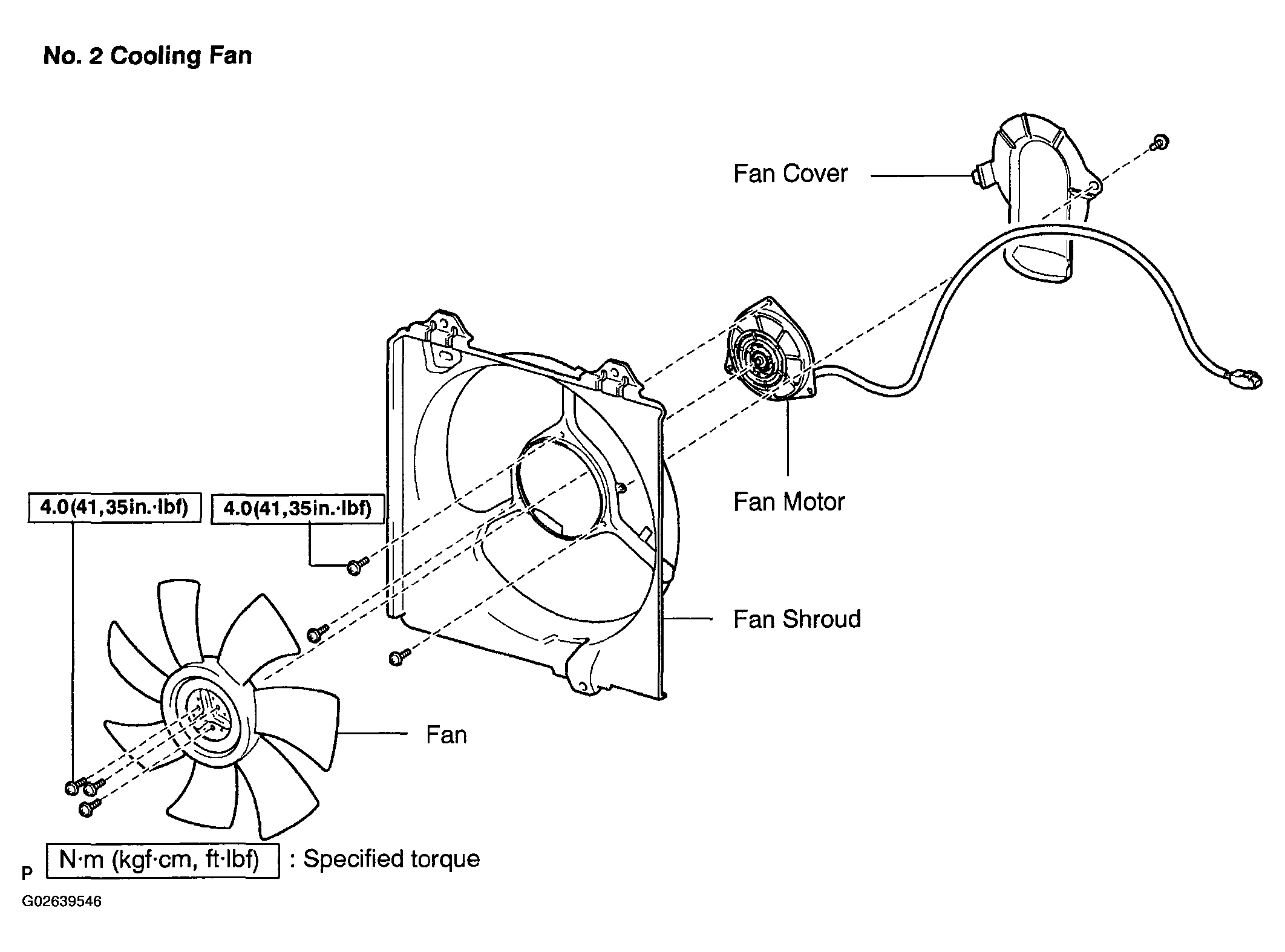

Fig 4: Exploded View Of Electric Cooling Fan Components & Torque Specifications (4 Of 4)
G02639546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
