Water Pump: Components

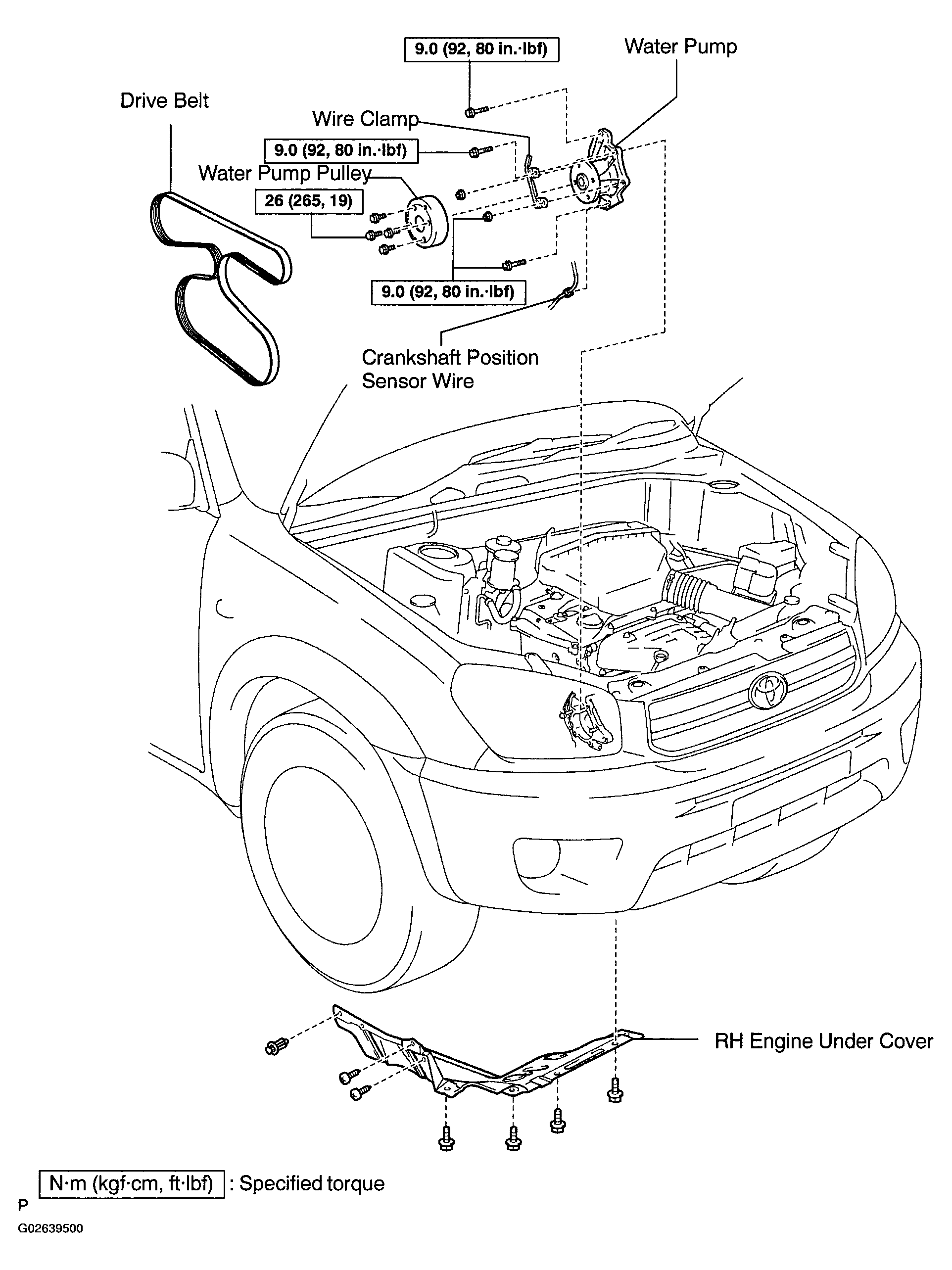

Fig 1: Water Pump Replacement Components With Torque Specifications

G02639500

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
