Engine Cooling System: Thermostat: Components

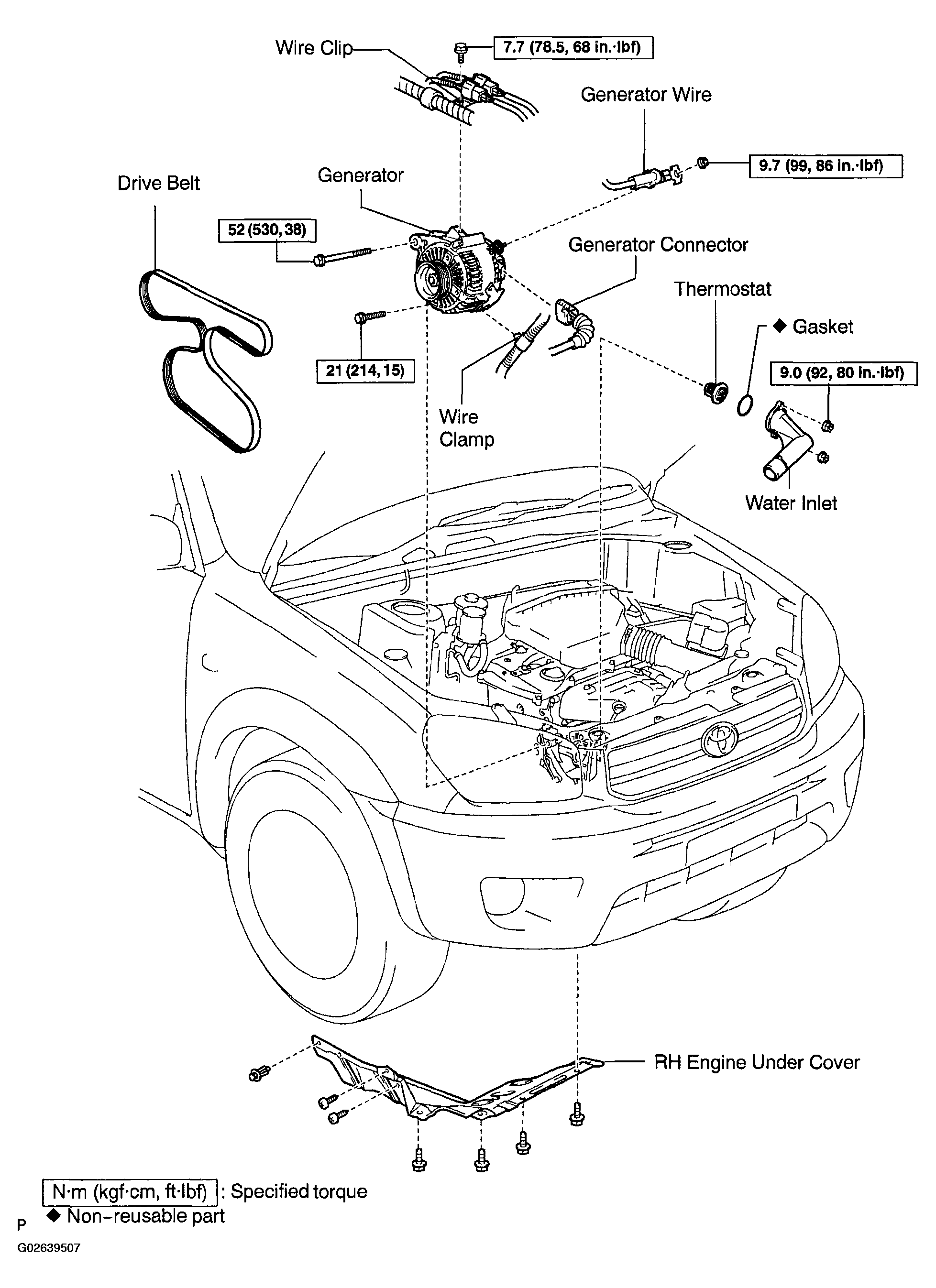

Fig 1: Exploded View Of Thermostat Components & Torque Specifications

G02639507

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
