Engine Cooling System: Radiator: Removal

  1. DRAIN ENGINE COOLANT
  2. REMOVE RADIATOR GRILLE

    Remove the 5 screws, 2 clips and radiator grille.

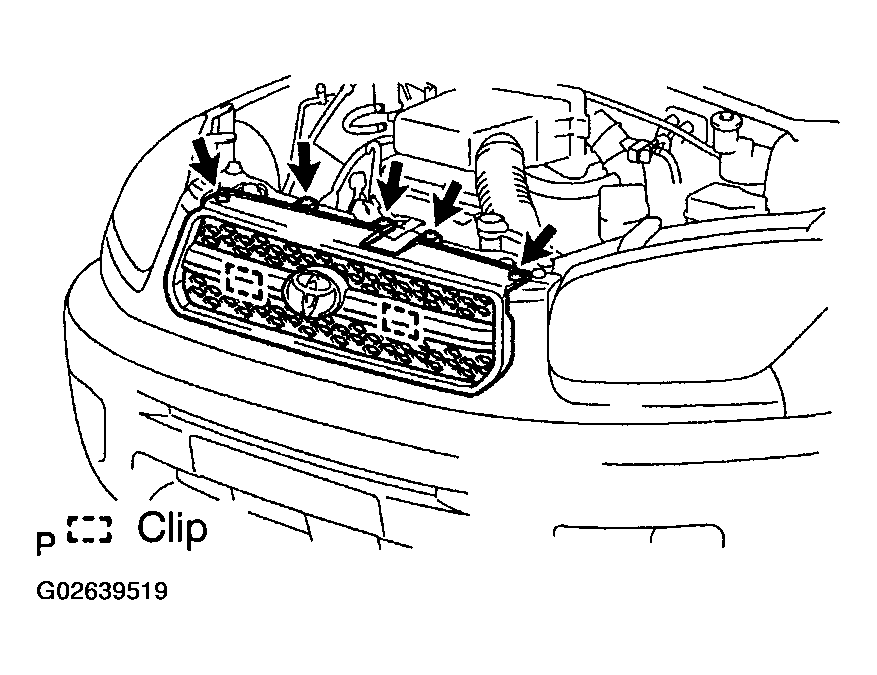

    Fig 1: Removing Radiator Grille
    G02639519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT END PANEL

    Remove the 4 screws and front end panel.

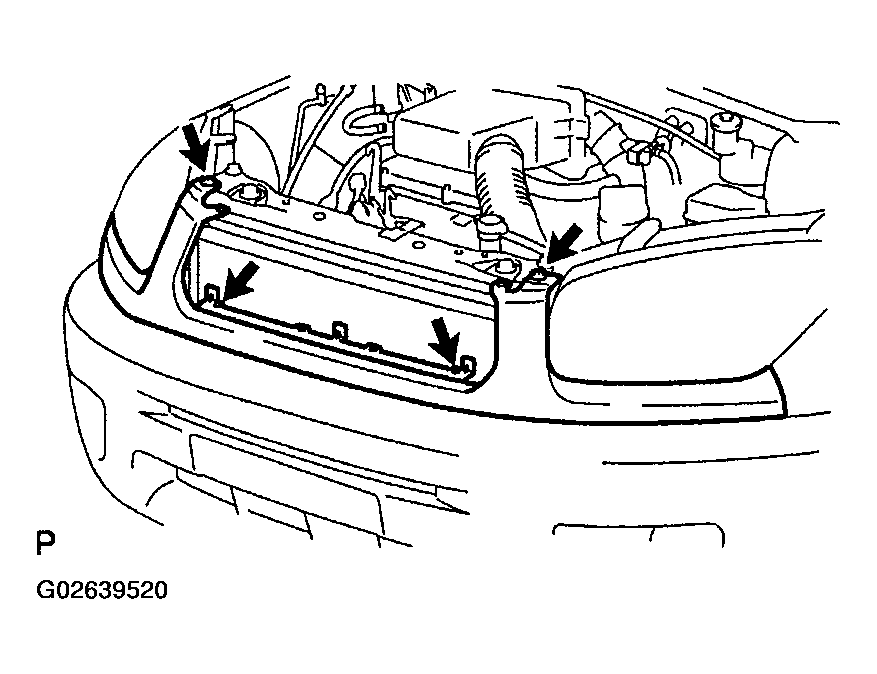

    Fig 2: Removing Front End Panel
    G02639520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT HOOD LOCK
    1. Remove the 3 bolts, and disconnect the hood lock.
    2. Disconnect the wire from the clamp.

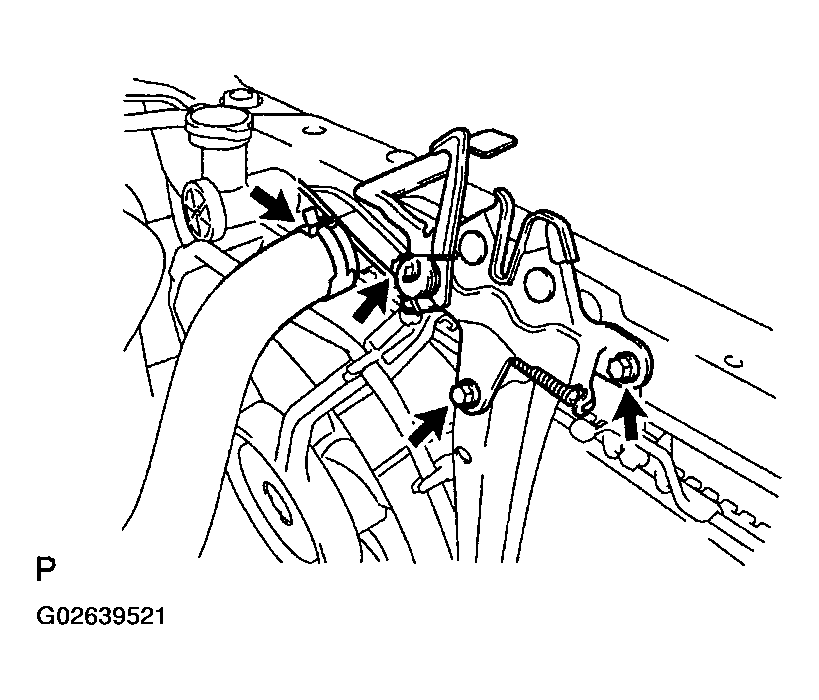

    Fig 3: Disconnecting Hood Lock & Upper Radiator Hose
    G02639521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT UPPER RADIATOR HOSE
  6. REMOVE UPPER RADIATOR SUPPORT

    Remove the 5 bolts and radiator support.

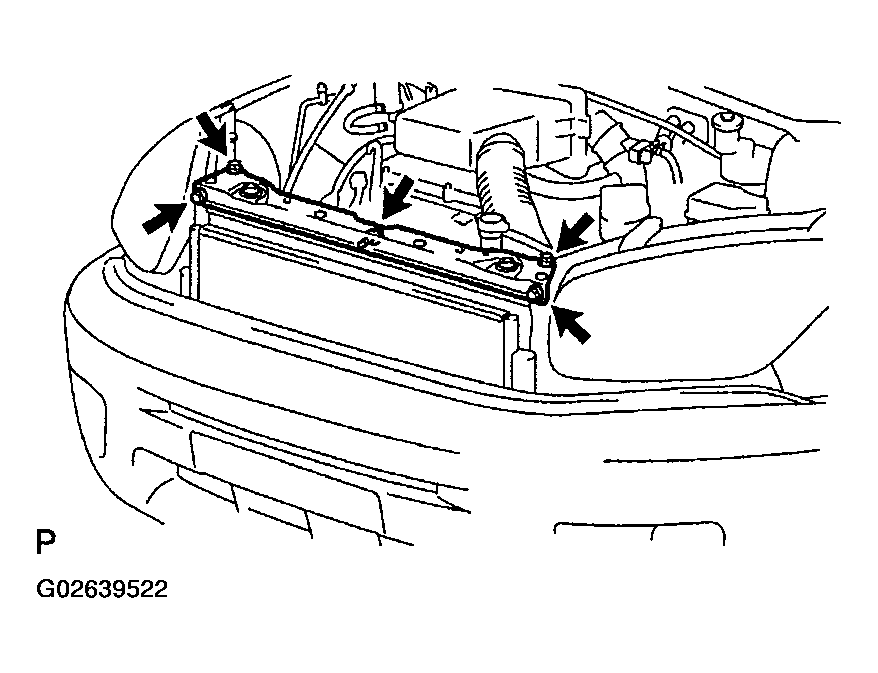

    Fig 4: Removing Radiator Support
    G02639522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE LH ENGINE UNDER COVER
  8. REMOVE RADIATOR RESERVOIR
  9. REMOVE NO. 1 AND NO. 2 COOLING FANS (See  REMOVAL  )
  10. A/T: DISCONNECT OIL 2 HOSES

    Disconnect the 2 oil cooler hoses from the radiator.

  11. DISCONNECT LOWER RADIATOR HOSE
  12. REMOVE RADIATOR
  13. REMOVE UPPER AND LOWER RADIATOR SUPPORTS FROM RADIATOR
