Remove Starter

  1. A/T:

    Disconnect the hose from the fluid level guide.

  2. Disconnect the starter connector.
  3. Remove the 2 bolts and pull out the starter.
  4. Remove the nut, and disconnect the starter wire.
  5. Remove the starter.

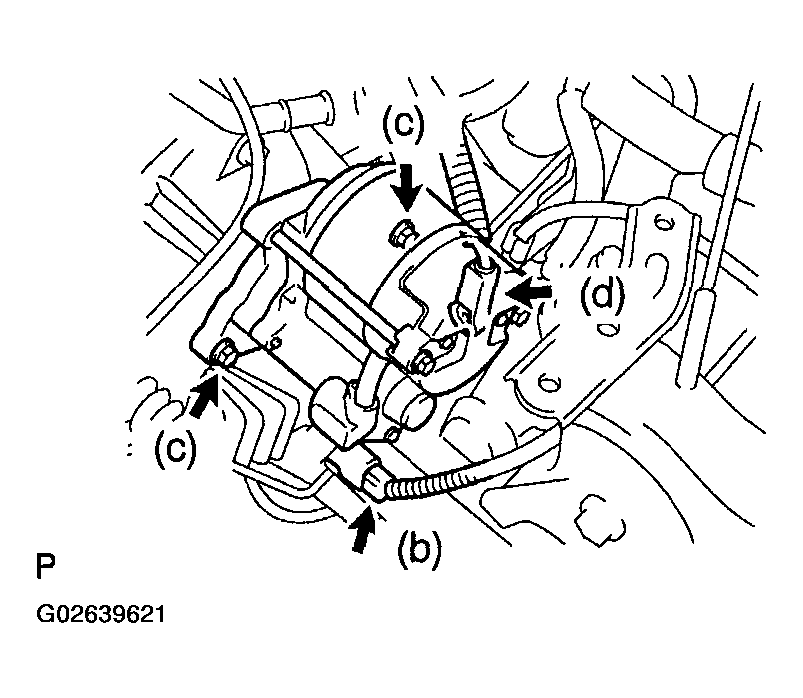

    Fig 1: Removing Starter
    G02639621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
