Horn System: Location

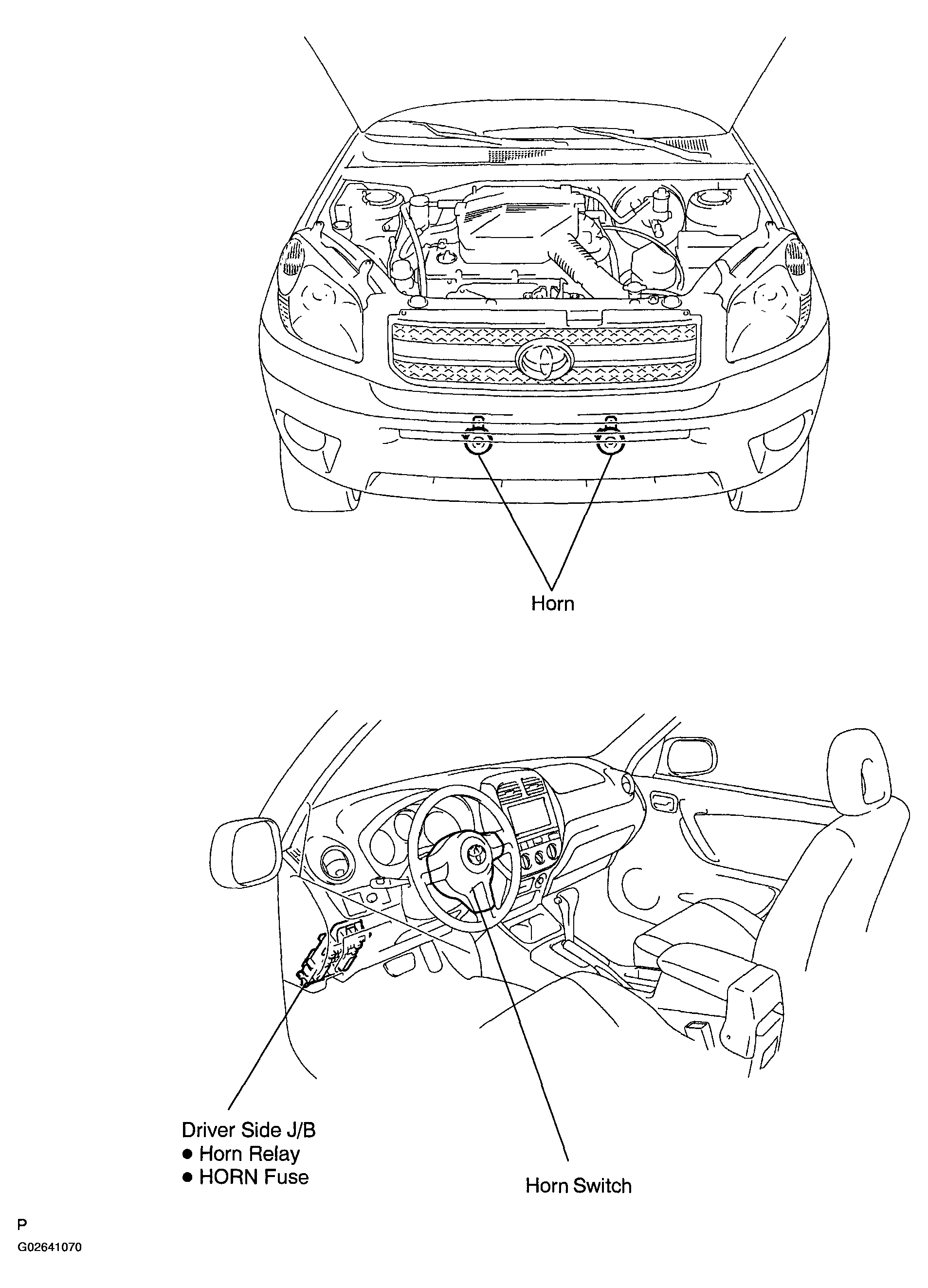

Fig 1: Identifying Component Location Of Horn System

G02641070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
