Front Seat: Components

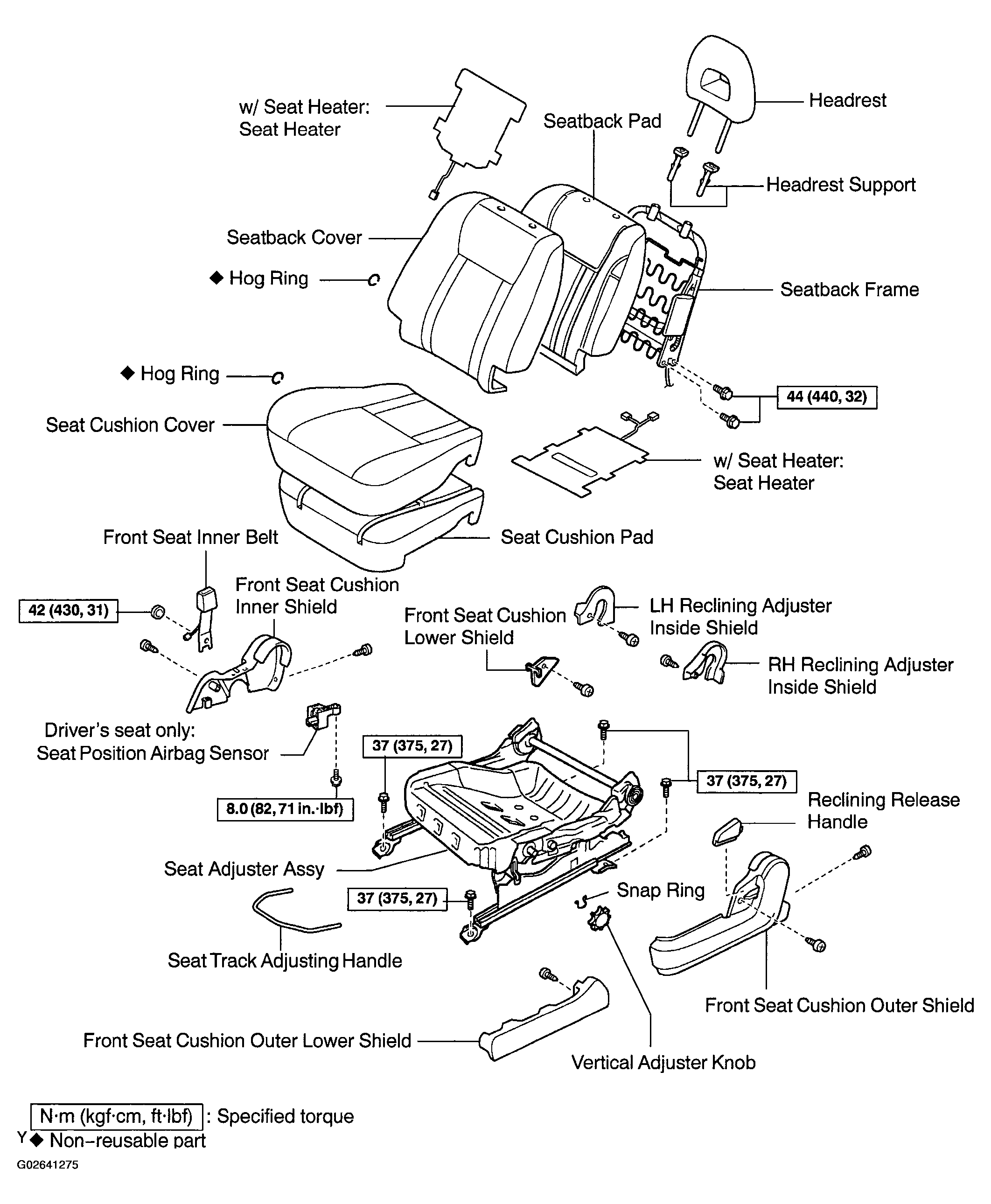

Fig 1: Front Seat Replacement Components With Torque Specifications

G02641275

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
