Audio System: Location

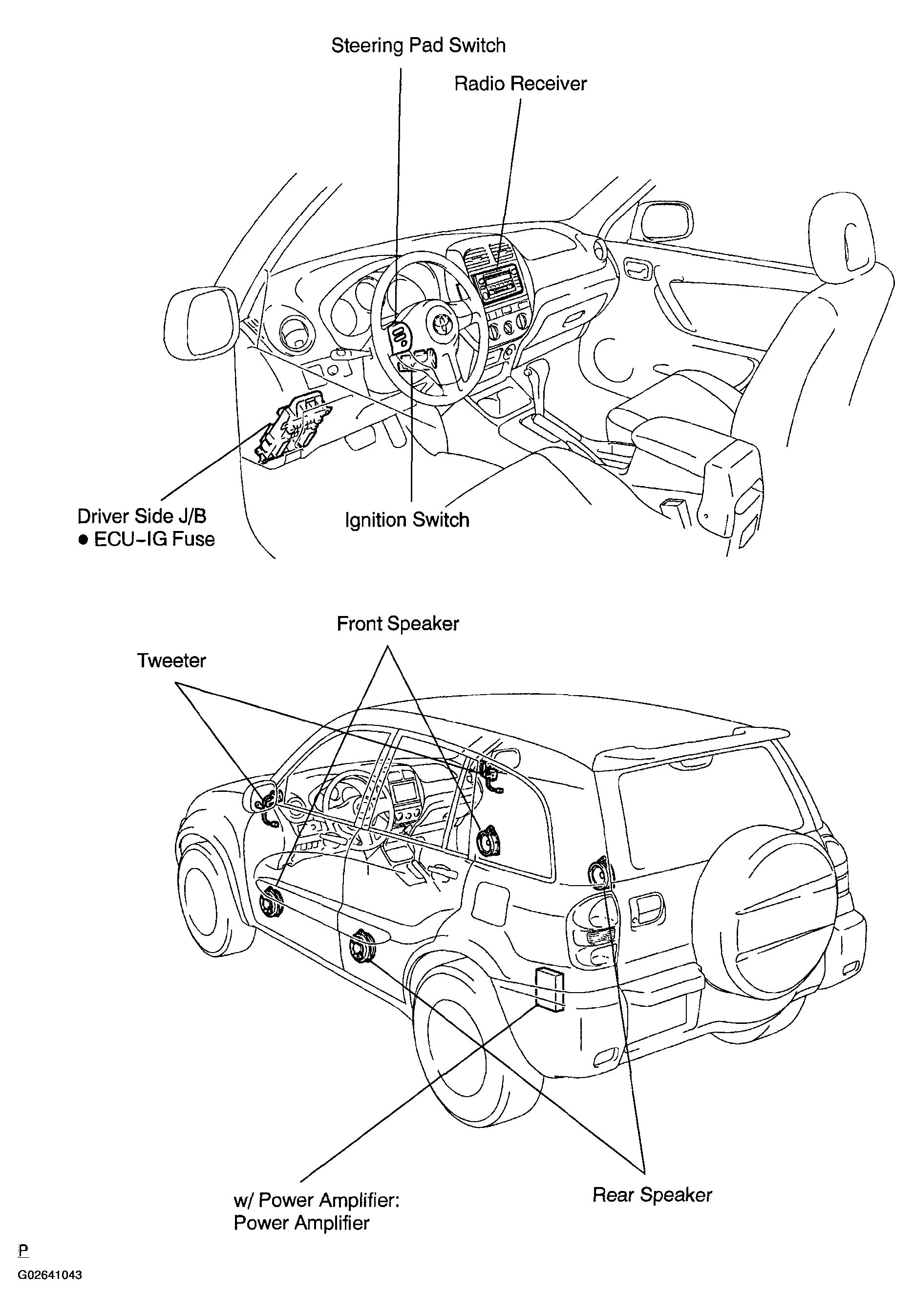

Fig 1: Identifying Location Of Audio System Components

G02641043

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
