Shift Control System (Parking Lock Control)
>>
System Diagram
>>

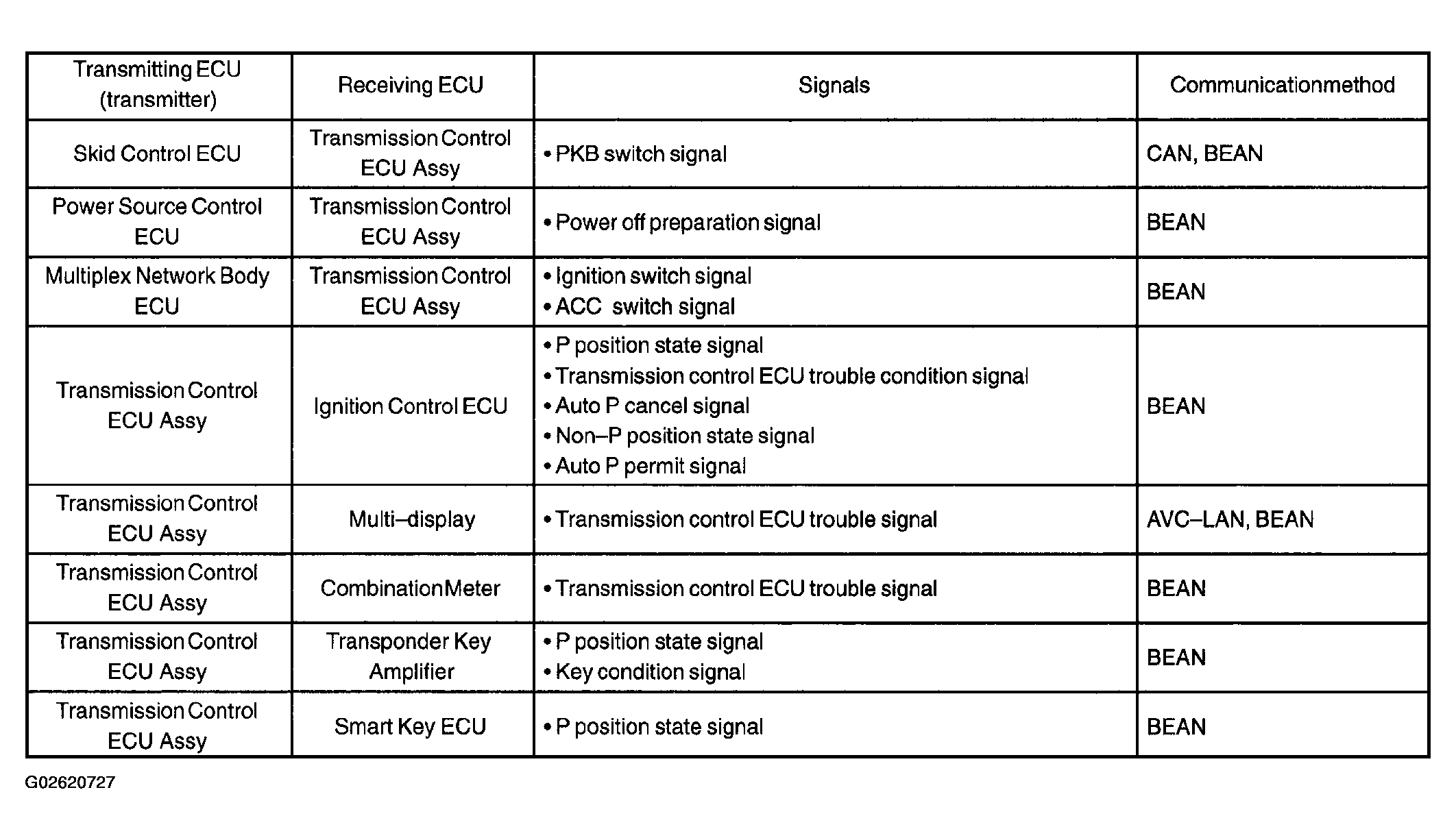

Input and output signals of each ECU.
Input and output signals of each ECU.
Fig 1: ECU Input And Output Signals Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
