Shift Control System (Parking Lock Control)
>>
Location
Shift Control System (Parking Lock Control): Location

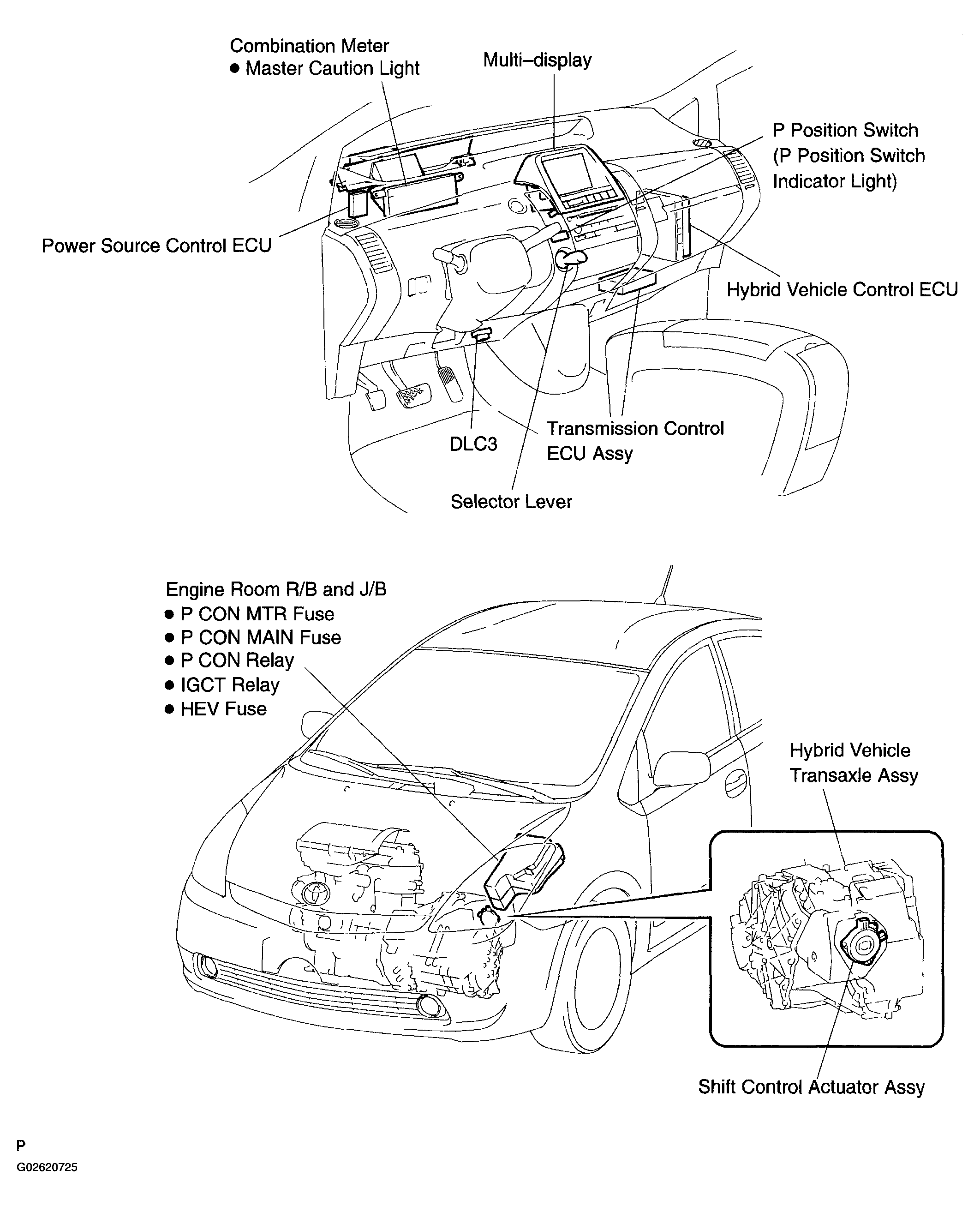

Fig 1: Identifying Shift Control System (Parking Lock Control) Component Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
