Fail-Safe Chart

If the transmission control ECU assy detects a malfunction, the fail safe functions shown in the table below are activated.

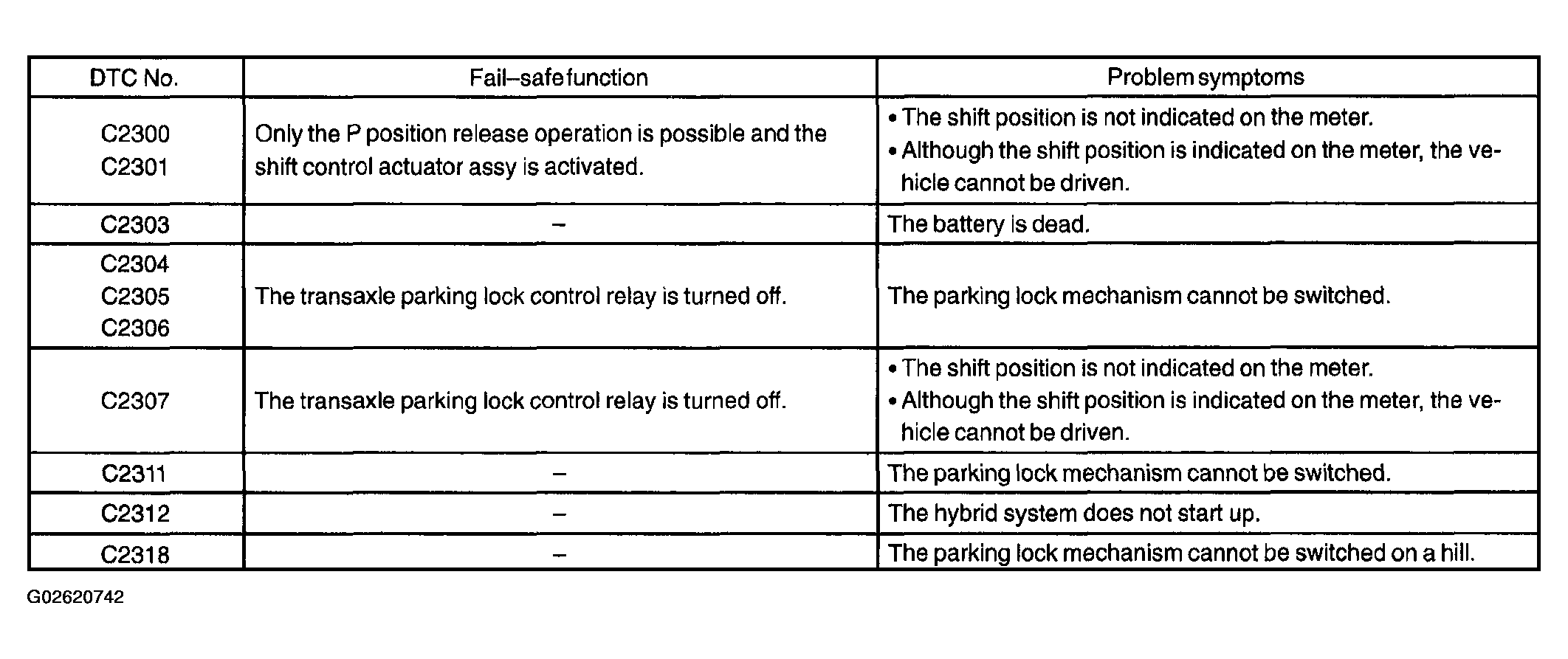

Fig 1: Fail-Safe Chart
G02620742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
