DTC C2310: Open Or Short Circuit In Batt: Wiring Diagram

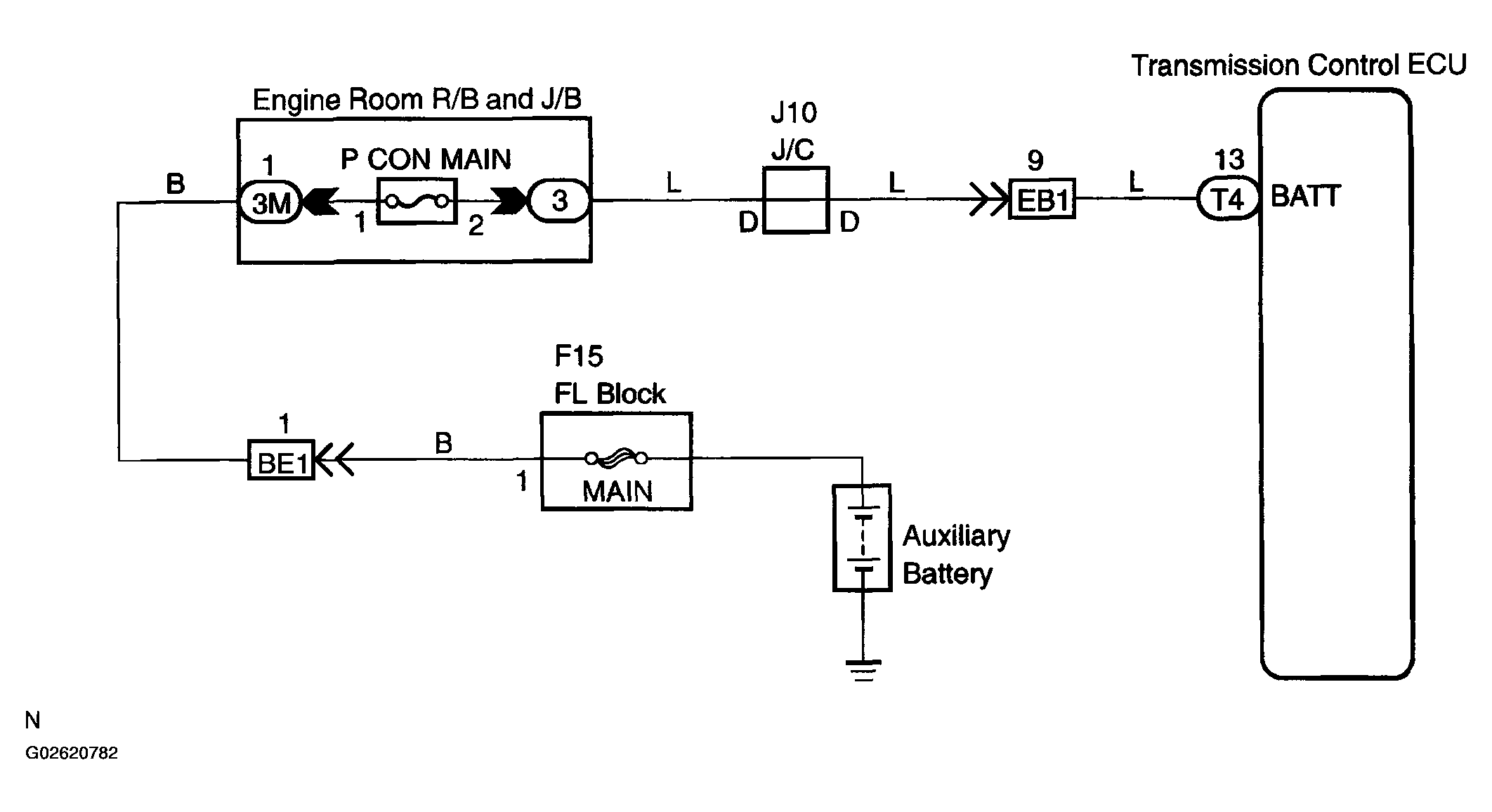

Fig 1: Wiring Diagram - DTC C2310

G02620782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
