DTC C2303: Relay Malfunction (+B Short): Wiring Diagram

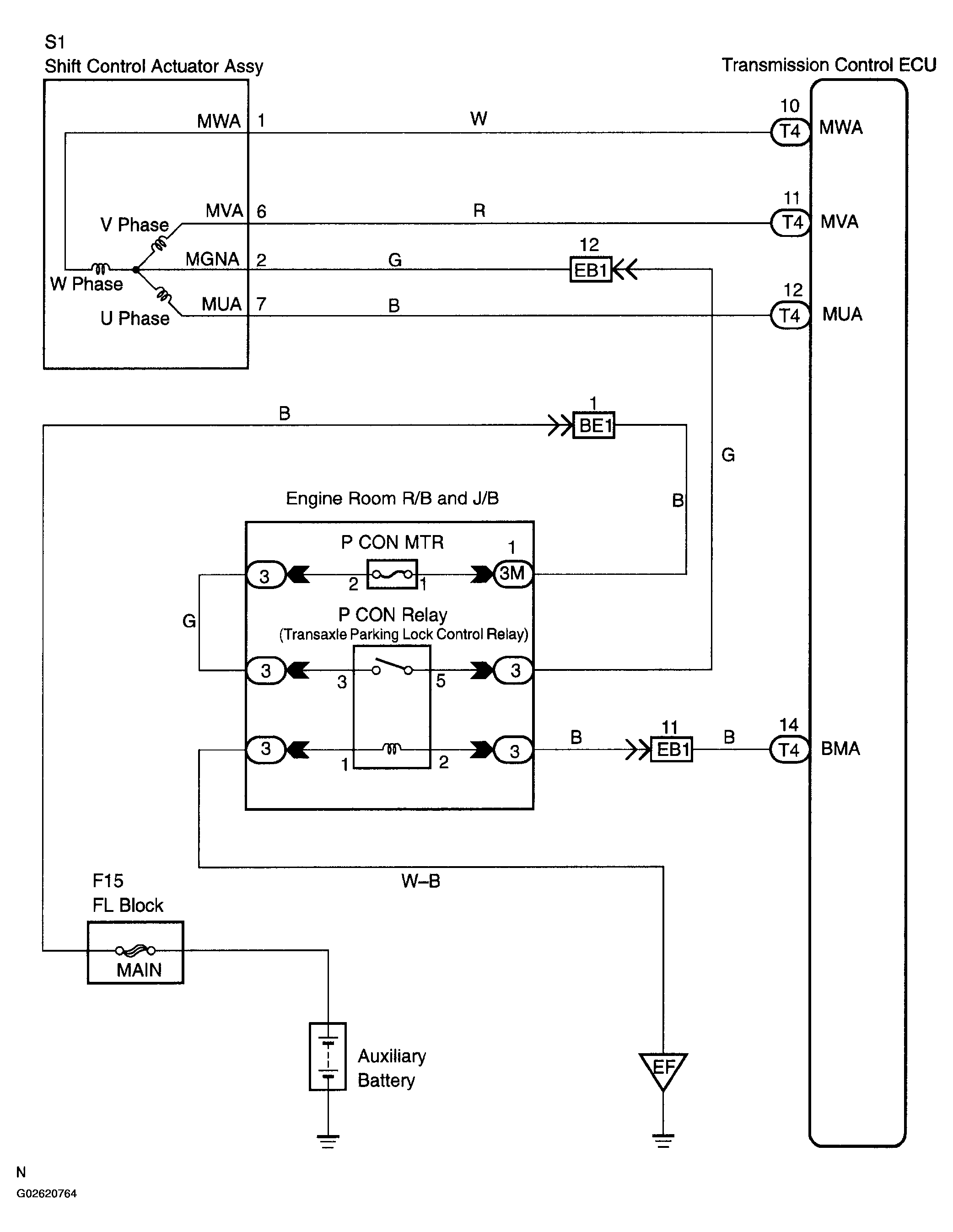

Fig 1: Wiring Diagram - DTC C2303

G02620764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
