Shift Control Actuator ASSY: Replacement

REMOVE SHIFT CONTROL ACTUATOR ASSY
1. Disconnect the connector.
2. Remove the 3 bolts. Remove the transmission case cover from the hybrid vehicle transaxle.

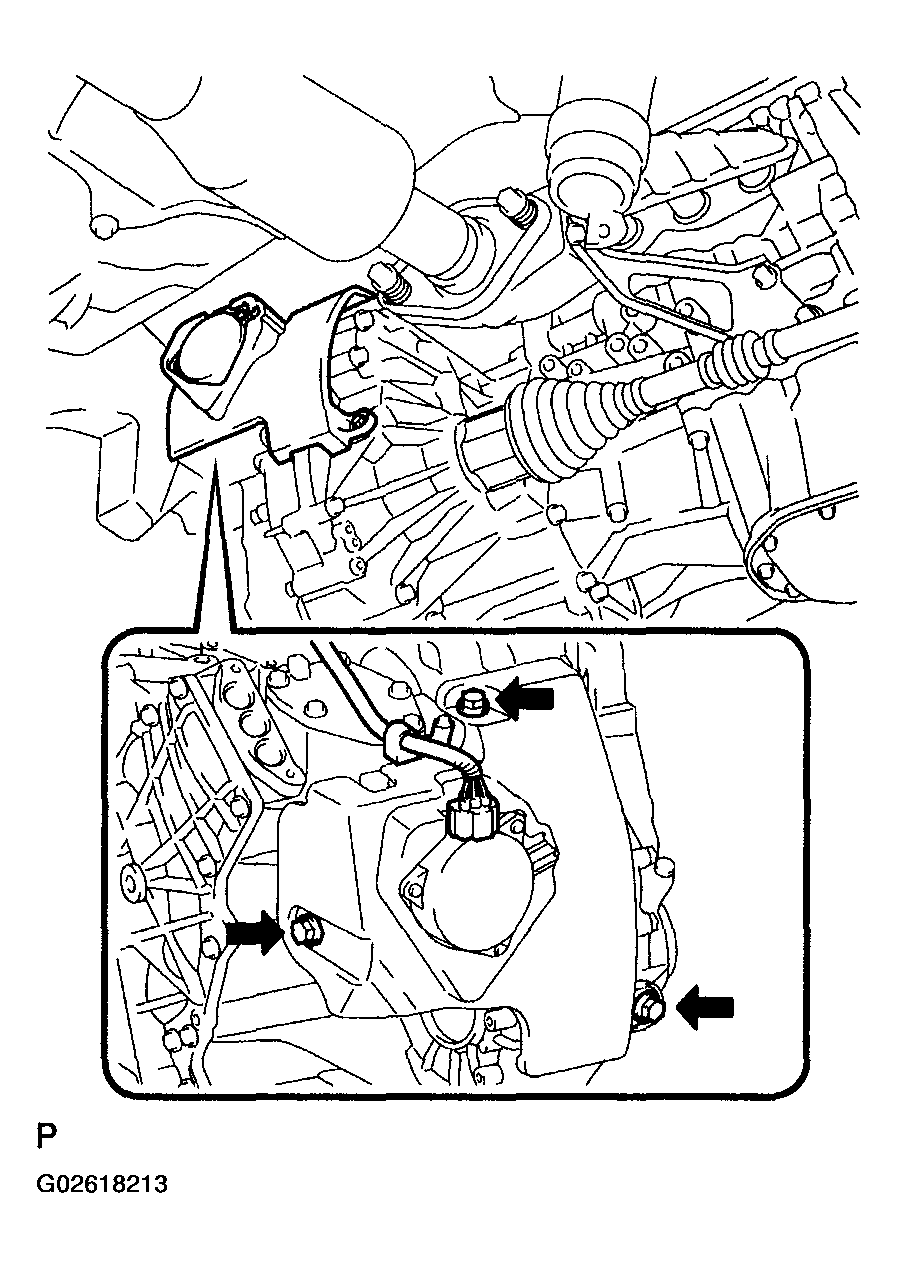

  Fig 1: Disconnecting Connector And Removing Transmission Case Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts. Remove the shift control actuator assy from the hybrid vehicle transaxle.

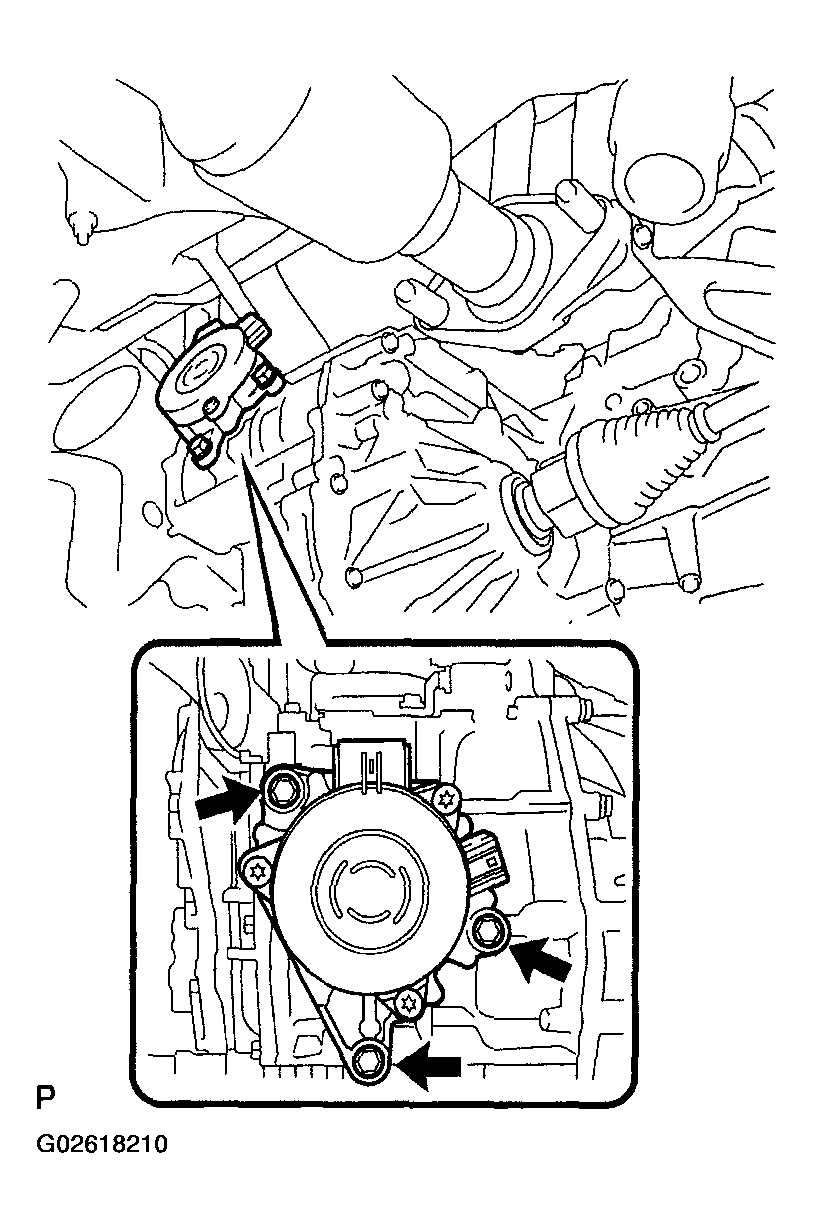

  Fig 2: Removing Shift Control Actuator Assy From Hybrid Vehicle Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT CONTROL ACTUATOR ASSY
1. Apply a small amount of ATF WS to the O-ring.

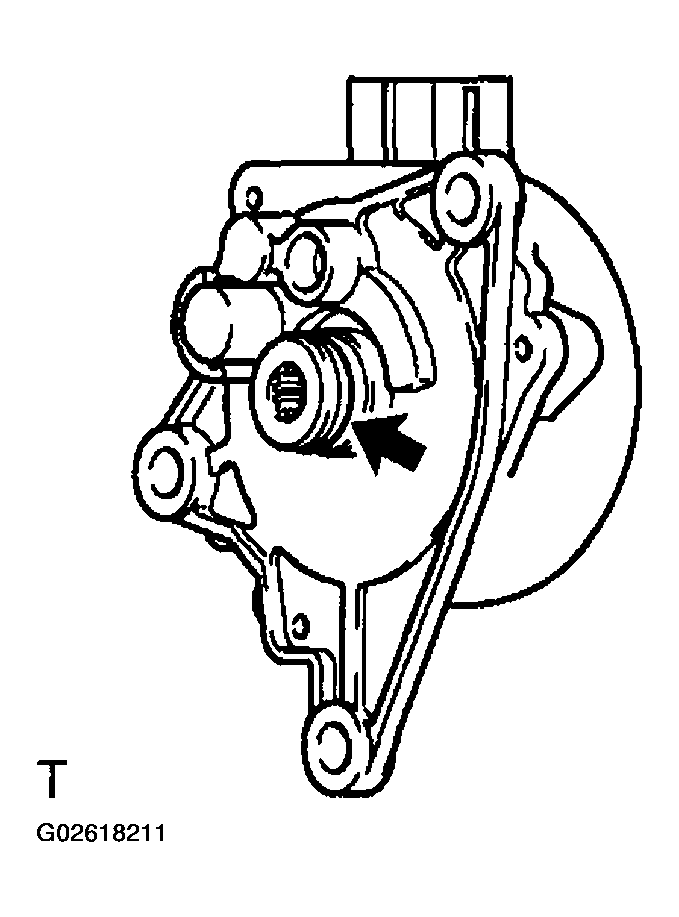

  Fig 3: Applying ATF WS To O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the shift control actuator assy to the hybrid vehicle transaxle using the 3 bolts.
  Torque: 16 N.m (160 kgf.cm, 12 ft.lbf)

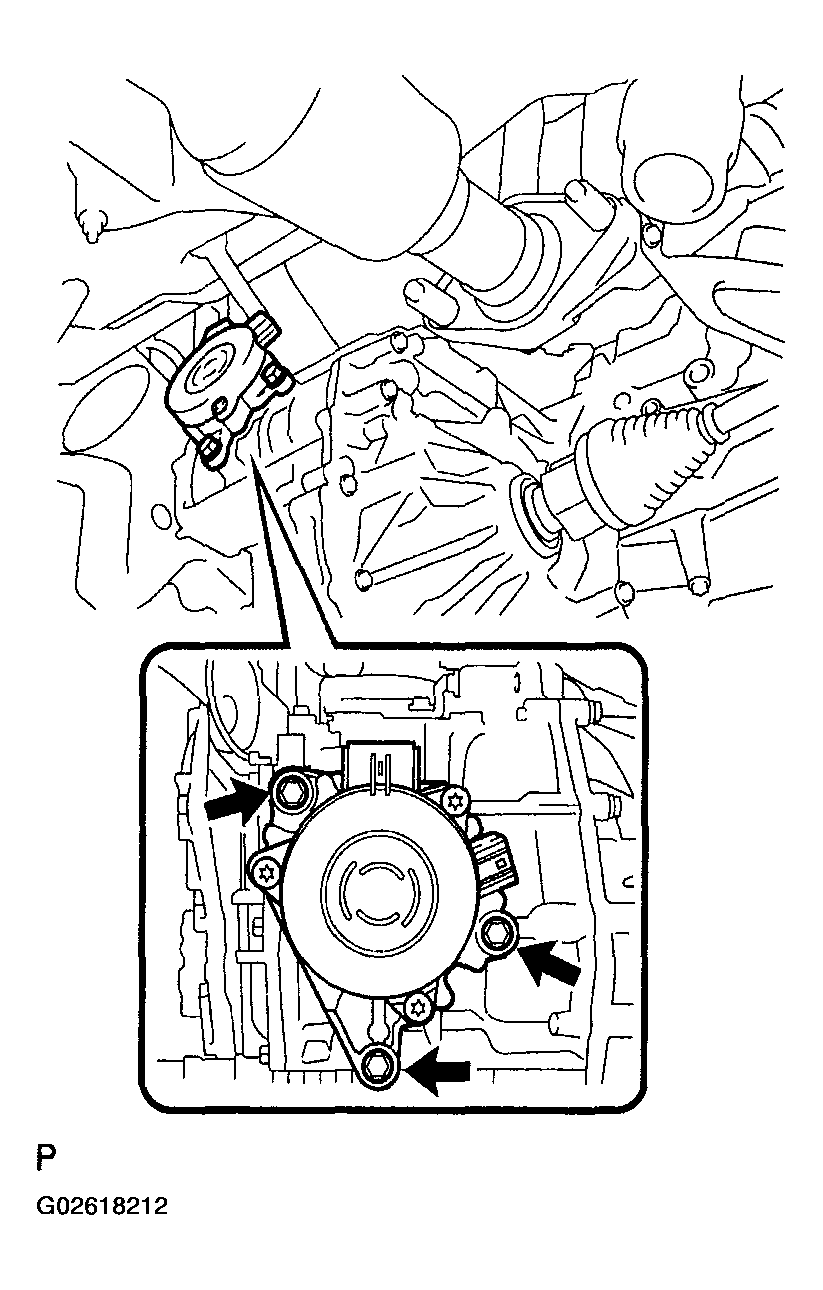

  Fig 4: Installing Shift Control Actuator Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the transmission case cover to the hybrid vehicle transaxle using the 3 bolts.
  Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)
4. Connect the connector.

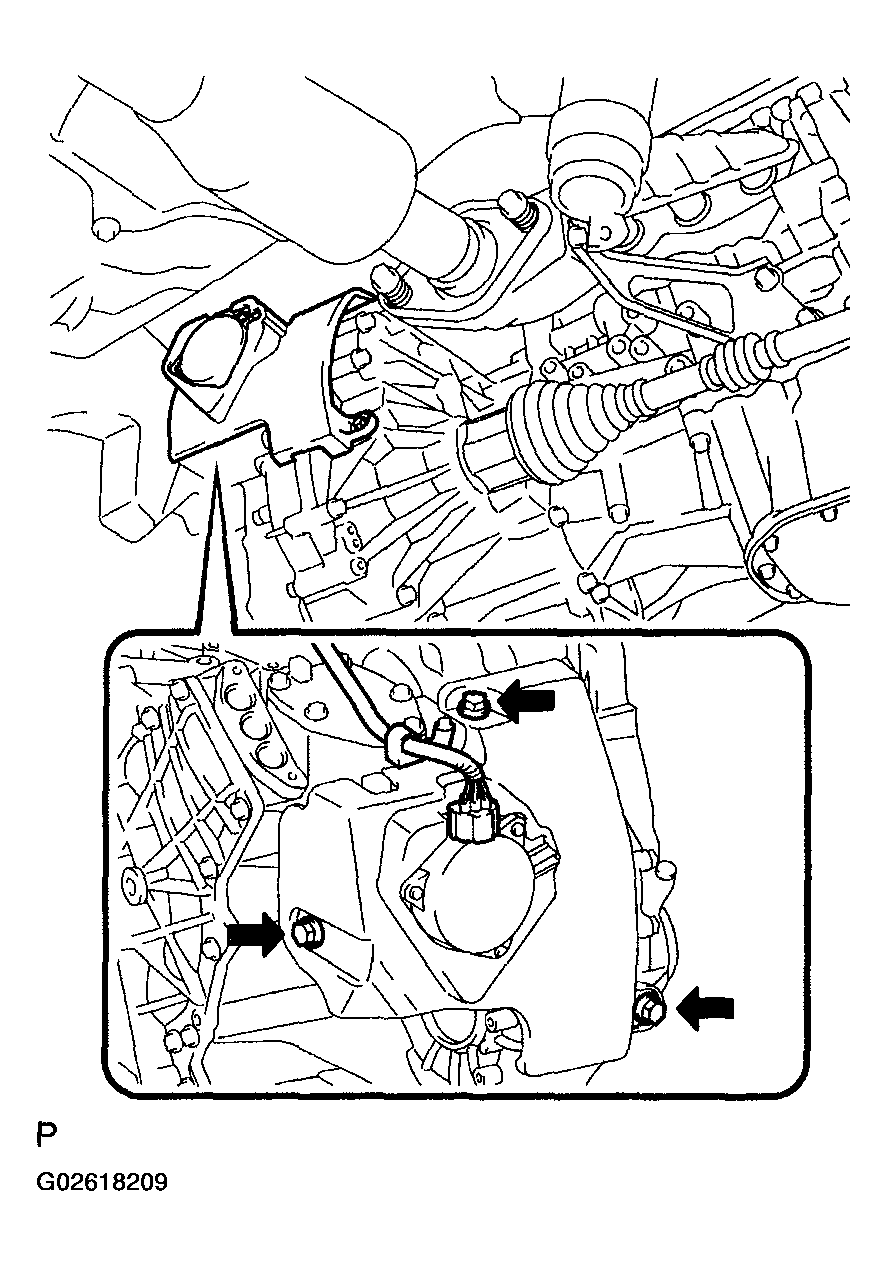

  Fig 5: Installing Transmission Case Cover To Hybrid Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
