Differential Drive Pinion: Components

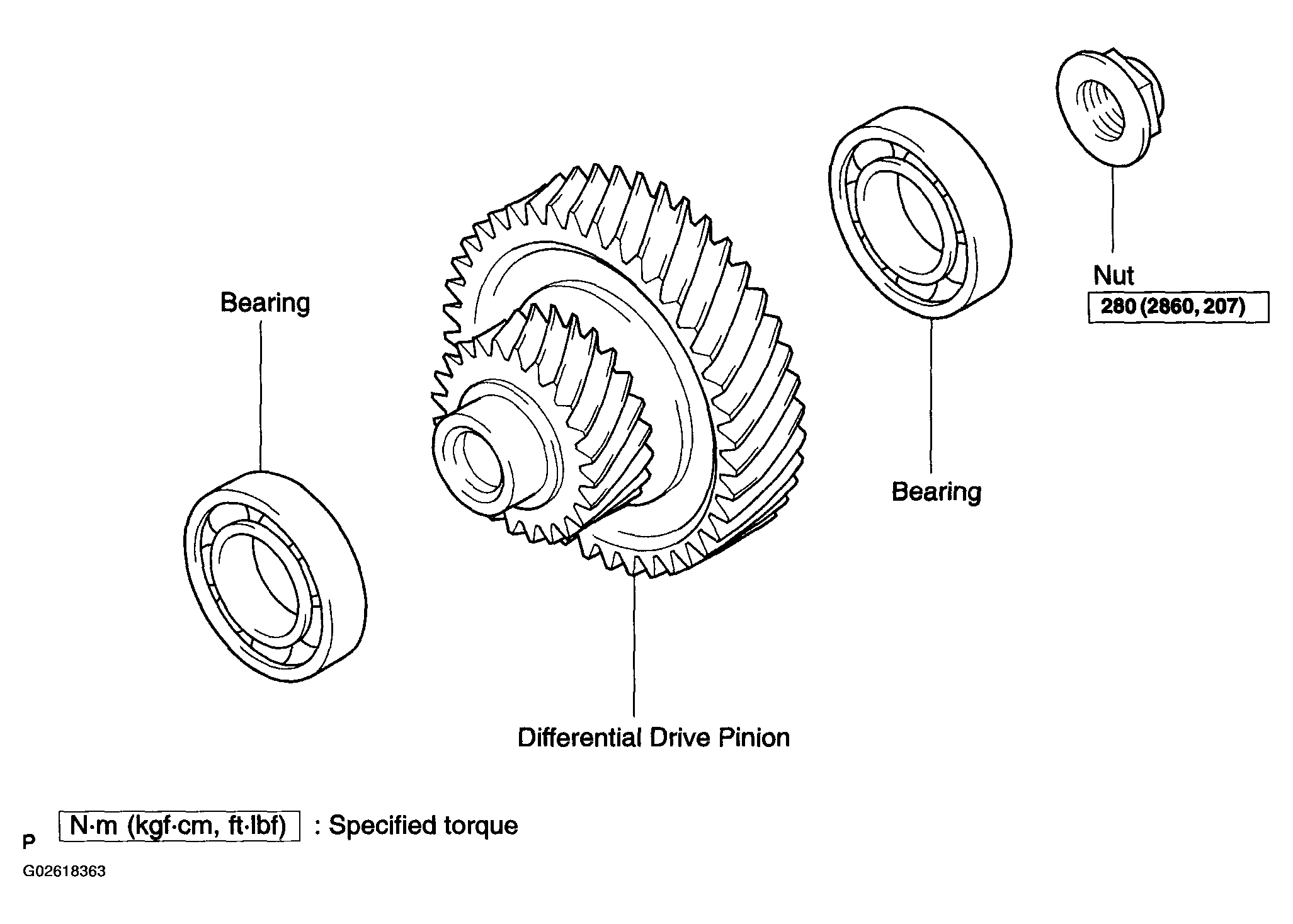

Fig 1: Differential Drive Pinion Replacement Components With Torque Specifications

G02618363

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
