Differential Case ASSY: Components

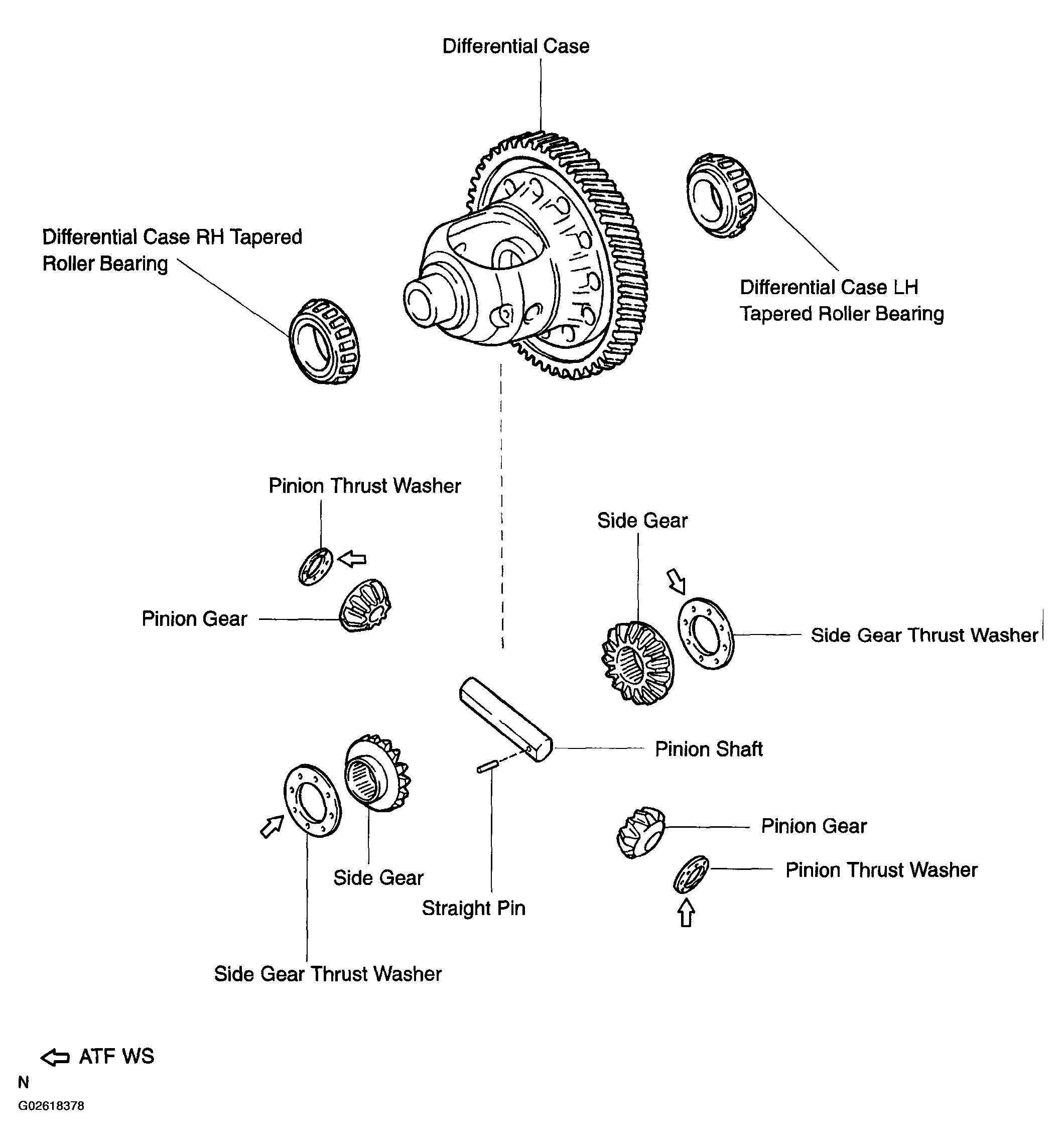

Fig 1: Identifying Differential Case Assy Components

G02618378

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
