Stabilizer Bar Rear: Replacement

HINT:

COMPONENTS: See REAR SUSPENSION  .

1. REMOVE REAR AXLE BEAM DAMPER
   1. Remove the rear axle beam damper from the rear axle beam assy.
2. REMOVE STABILIZER BAR REAR
   1. Remove the 2 bolts, the 2 nuts and then the stabilizer bar.

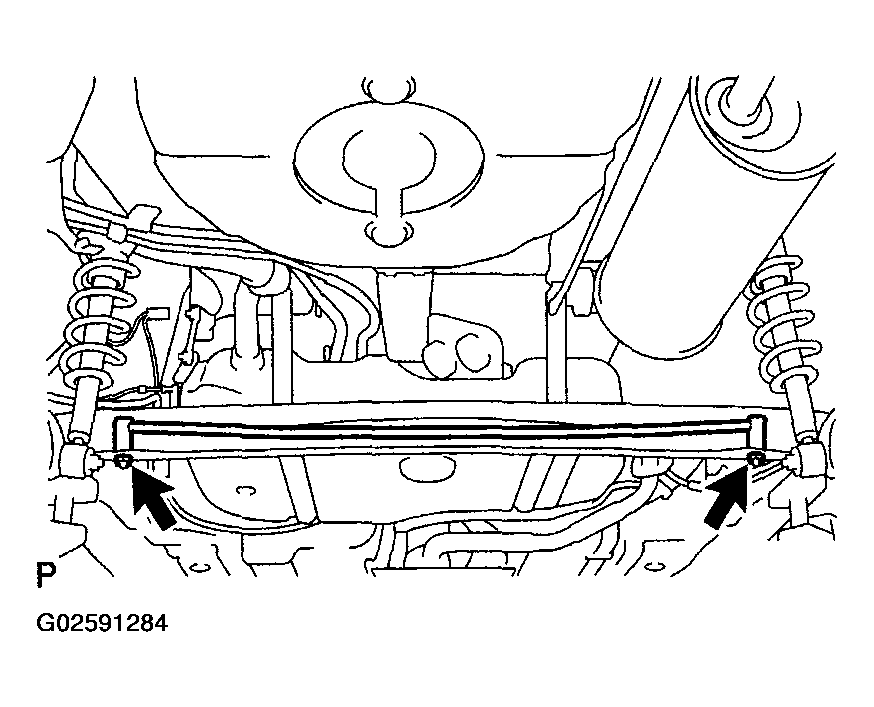

      Fig 1: Removing Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL STABILIZER BAR REAR
   1. Install the stabilizer bar so that the mark position faces towards the vehicle's right rear. Hold the bolts and tighten the nuts.

      Torque: 149 N.m (1,520 kgf.cm, 110 ft.lbf)

      Fig 2: Installing Stabilizer Bar Rear

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL REAR AXLE BEAM DAMPER
   1. Install the rear axle beam damper to the center of the rear axle beam assy.

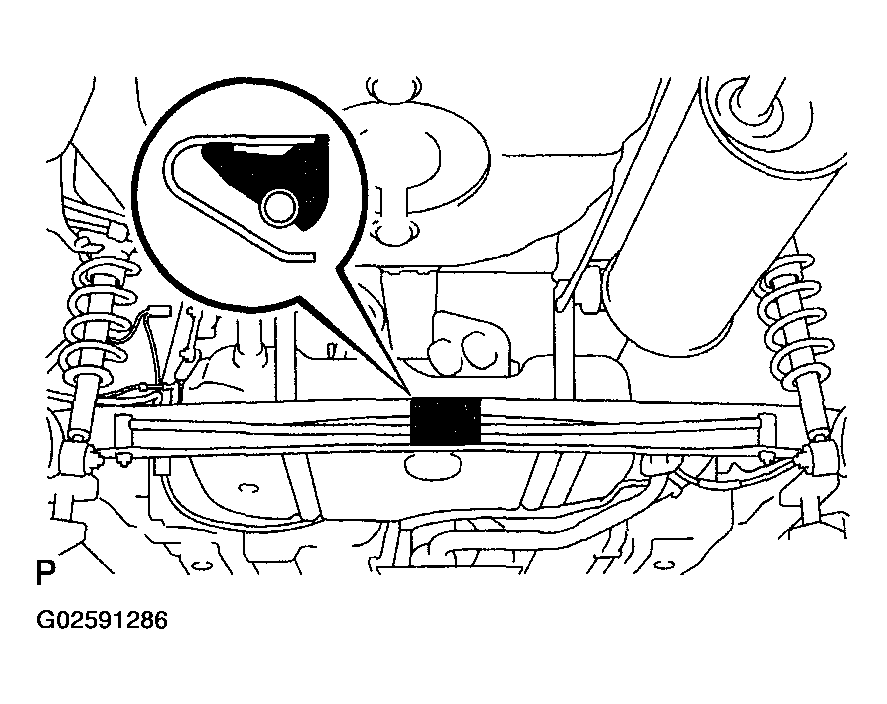

      Fig 3: Installing Rear Axle Beam Damper To Center Of Rear Axle Beam

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
