Rear Suspension: Components

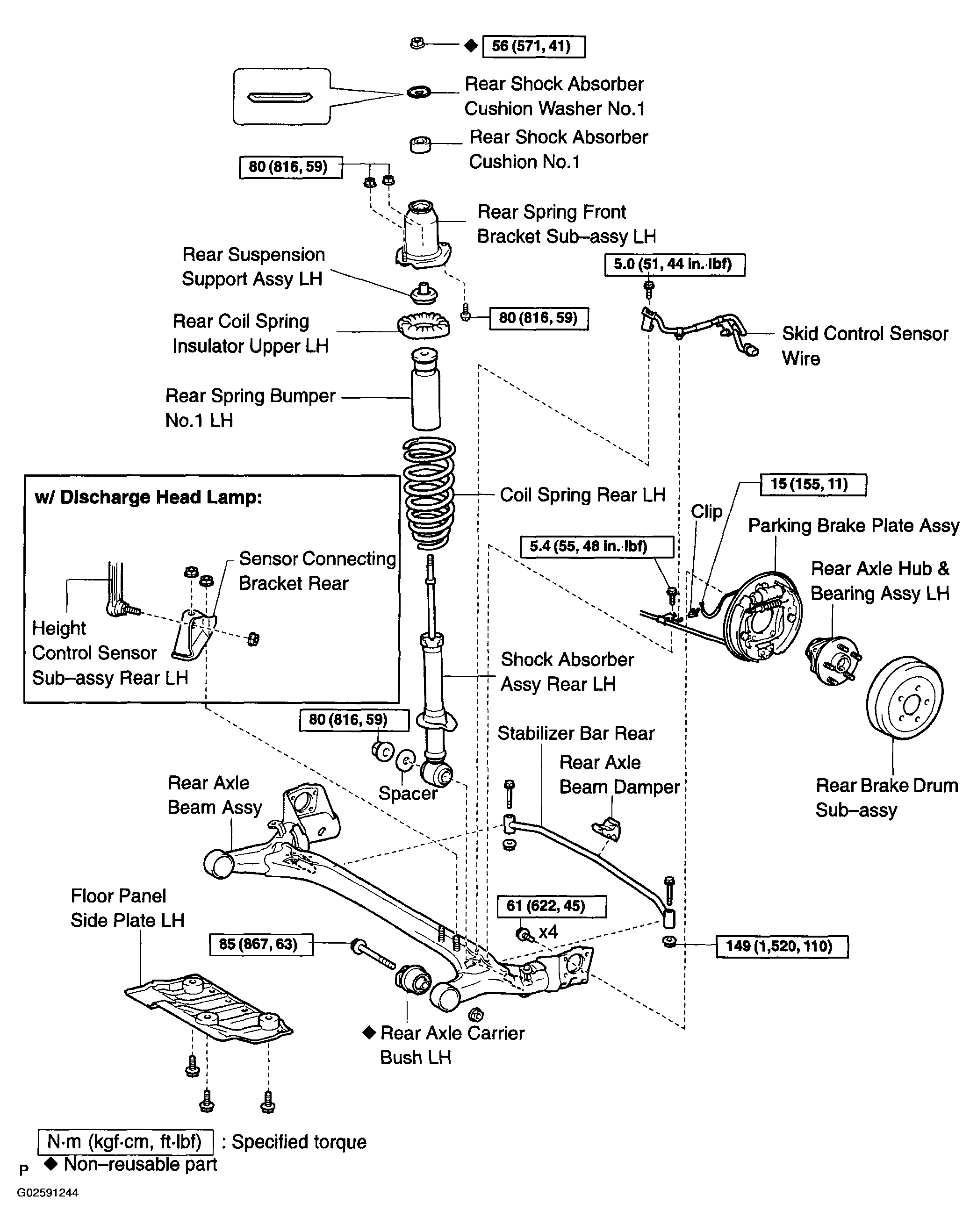

Fig 1: Rear Suspension Replacement Components With Torque Specifications

G02591244

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
