Home >> Toyota >> 2005 >> Prius >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Seat Belt Warning System >> Problem Symptoms Table

Problem Symptoms Table

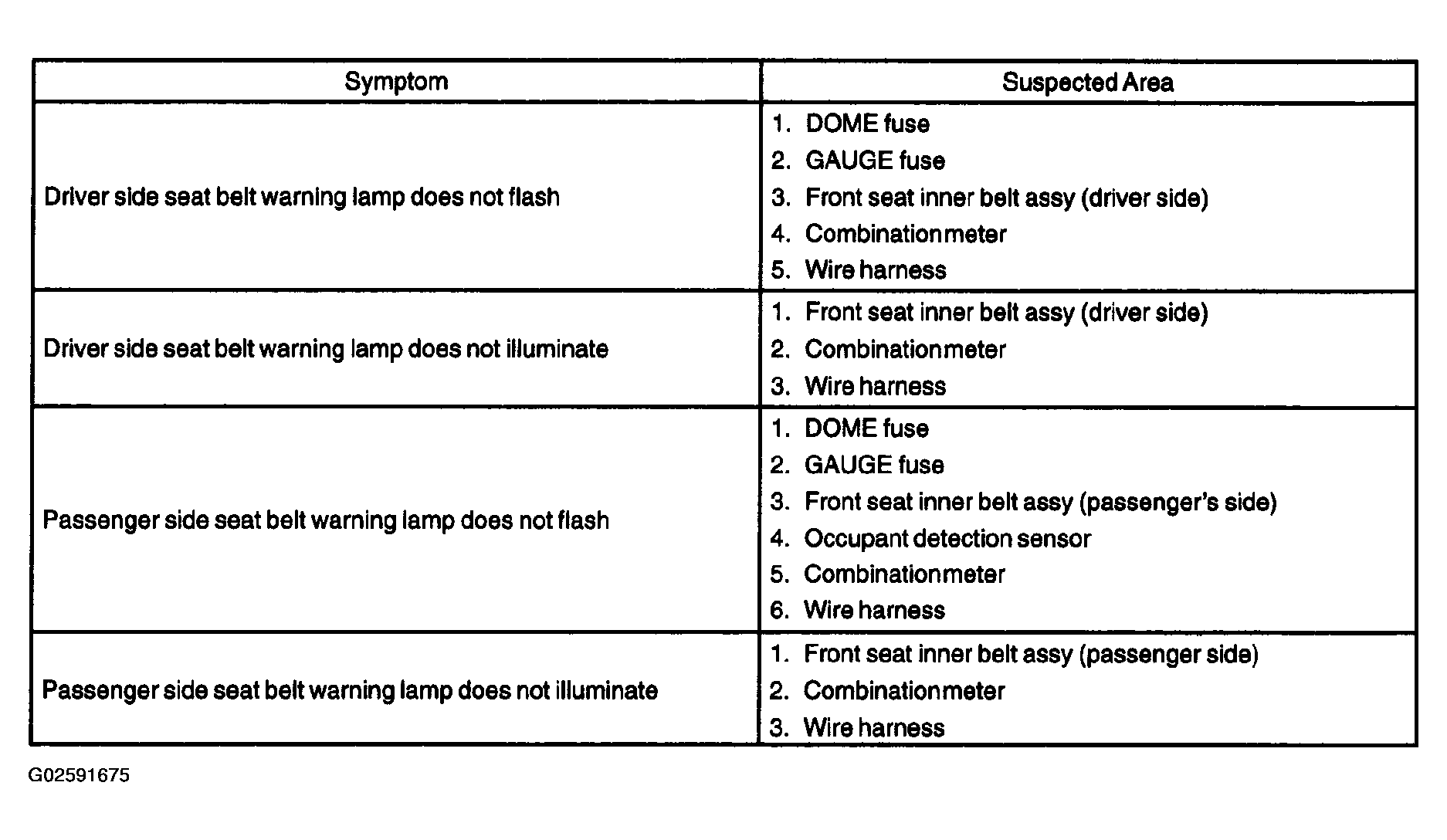

Fig 1: Problem Symptoms Chart

G02591675

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
