Seat Belt Warning System: Inspection

  1. Driver side:

    INSPECT FRONT SEAT INNER BELT ASSY

    1. Measure the resistance of the buckle switch.

    Standard:

    FRONT SEAT INNER BELT ASSY SPECIFIED CONDITIONS

    Tester Condition Condition Specified Condition
    1-2 Fasten seat belt 1 MΩ or higher
    1-2 Release seat belt Below 1 Ω

    If the result is not as specified, replace the inner belt assy.

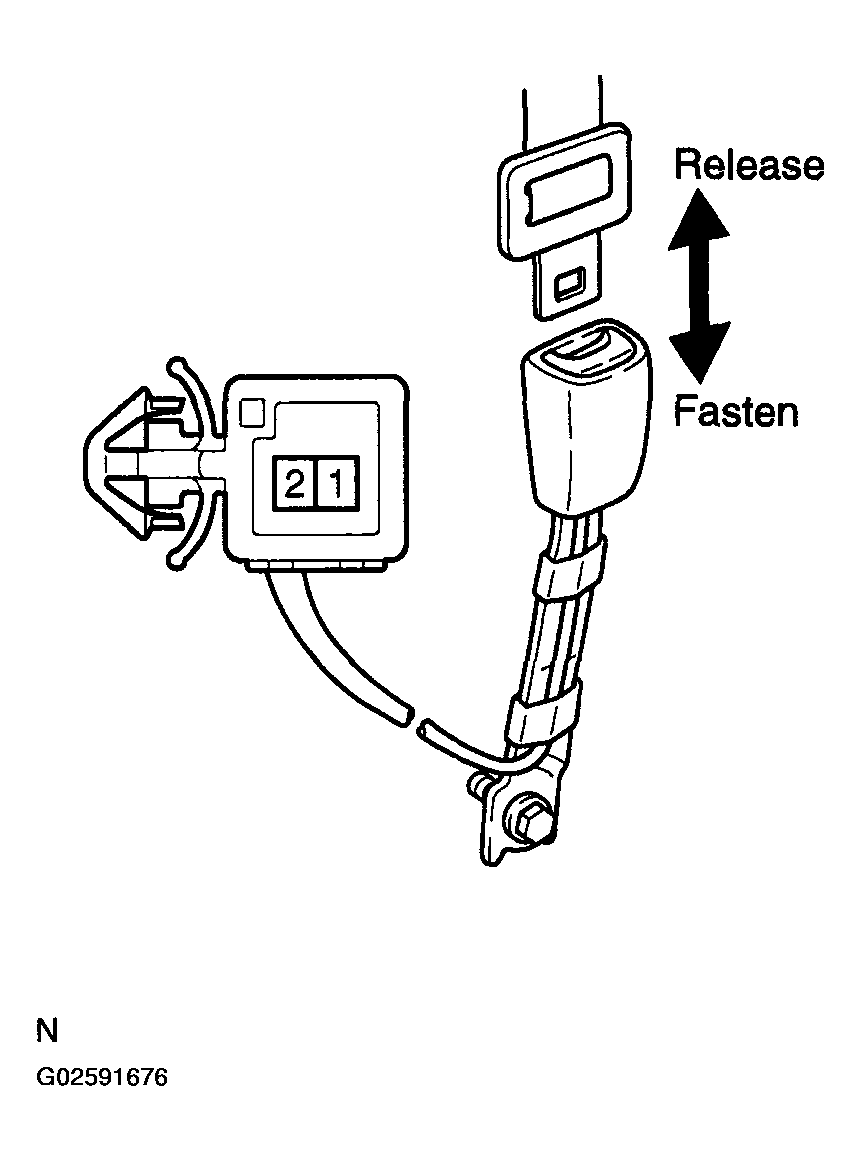

    Fig 1: Inspecting Front Seat Inner Belt Assy
    G02591676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Passenger side:

    INSPECT FRONT SEAT INNER BELT ASSY

    1. Measure the resistance of the buckle switch.

    Standard:

    FRONT SEAT INNER BELT ASSY SPECIFIED CONDITIONS (PASSENGER SIDE)

    Tester Condition Condition Specified Condition
    1-2 Fasten seat belt 1 MΩ or higher
    1-2 Release seat belt Below 1 Ω

    If the result is not as specified, replace the inner belt assy.

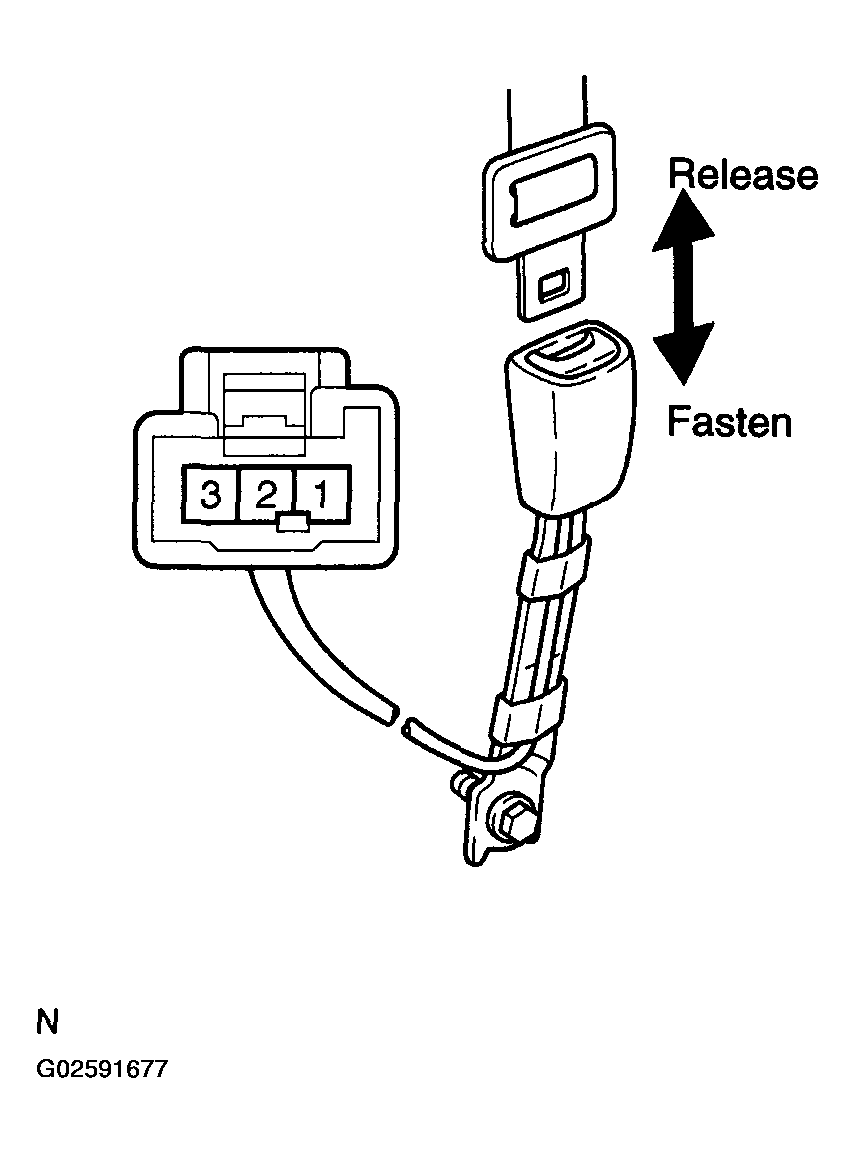

    Fig 2: Inspecting Front Seat Inner Belt Assy (Passenger Side)
    G02591677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT OCCUPANT DETECTION SENSOR
    1. Measure the resistance of the sensor.

    Standard:

    OCCUPANT DETECTION SENSOR SPECIFIED CONDITIONS

    Tester Condition Condition Specified Condition
    1-2 Apply more than 147 N (15 kg, 33 lb) to occupant detection sensor Below 1 Ω
    1-2 Free 1 MΩ or higher

    If the result is not as specified, replace the seat cushion pad.

    Fig 3: Inspecting Occupant Detection Sensor
    G02591678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
