Home >> Toyota >> 2005 >> Prius >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Rear Seat Belt >> Components

Rear Seat Belt: Components

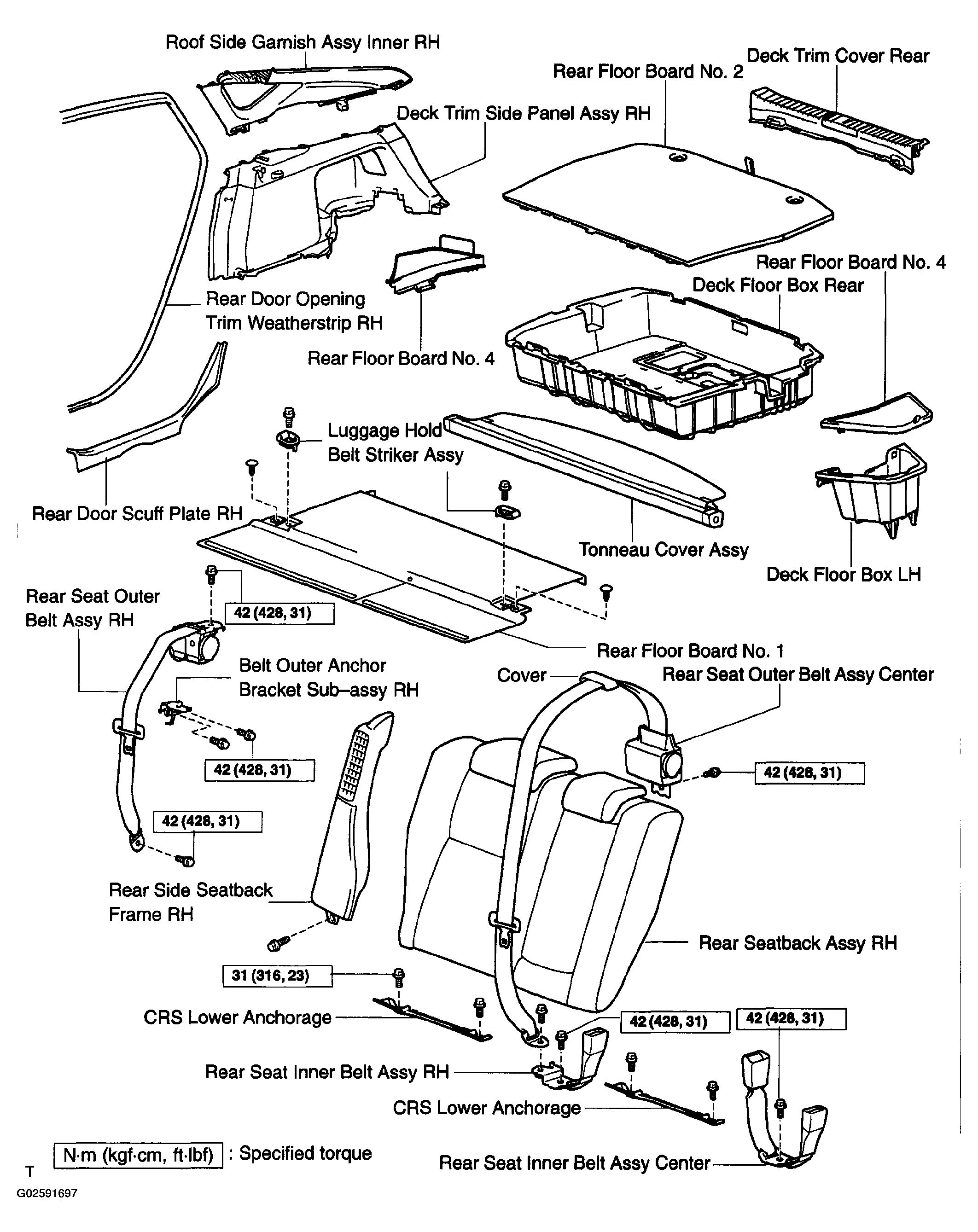

Fig 1: Rear Seat Belt Replacement Components With Torque Specifications

G02591697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
