How To Determine Nut Strength

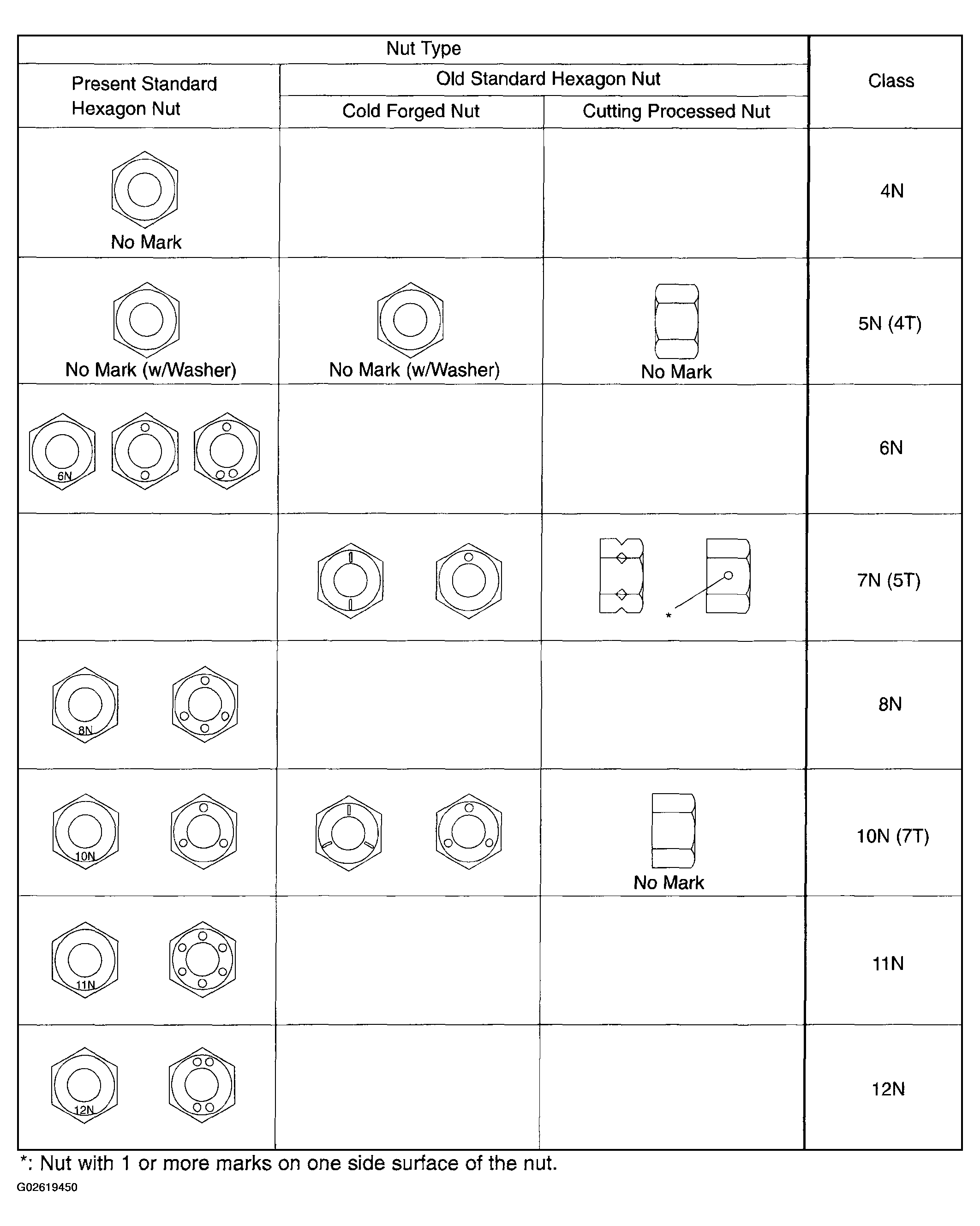

Fig 1: Nut Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the nut with the same number of the nut strength classification or greater than the bolt strength classification number when tightening parts with a bolt and nut.

1. Example: Bolt = 4T
2. Nut = 4N or more
