Circuit Description

Refer to DTC P1115 DTC P1115 COOLANT TEMPERATURE SENSOR CIRCUIT FOR COOLANT HEAT STORAGE SYSTEM, DTC P1117 COOLANT TEMPERATURE SENSOR CIRCUIT LOW FOR COOLANT HEAT STORAGE SYSTEM, DTC P1118 COOLANT TEMPERATURE SENSOR CIRCUIT HIGH FOR COOLANT HEAT STORAGE SYSTEM  .

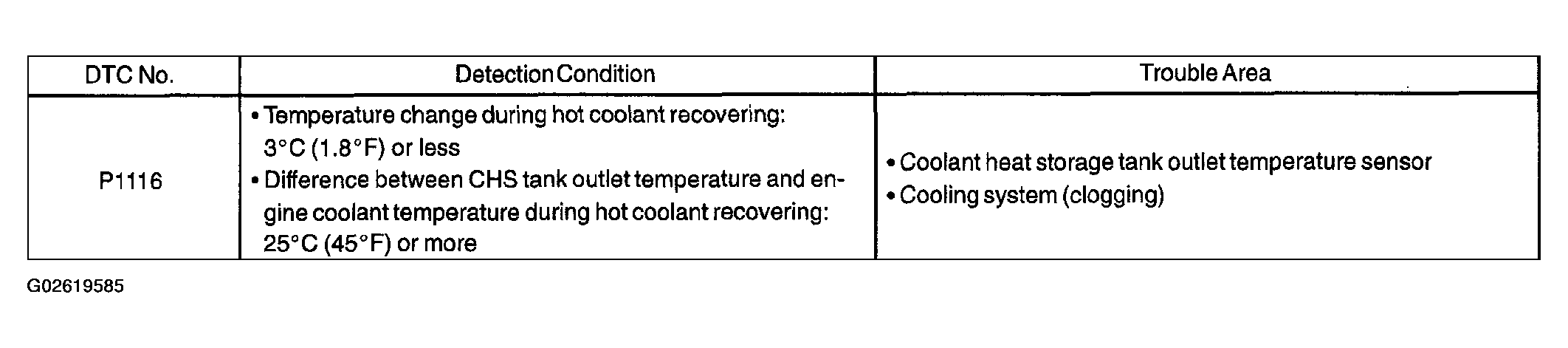

Fig 1: DTC P1116 Detection Condition And Trouble Area
G02619585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
