Throttle W/Motor Body ASSY (1NZ-FXE): Components

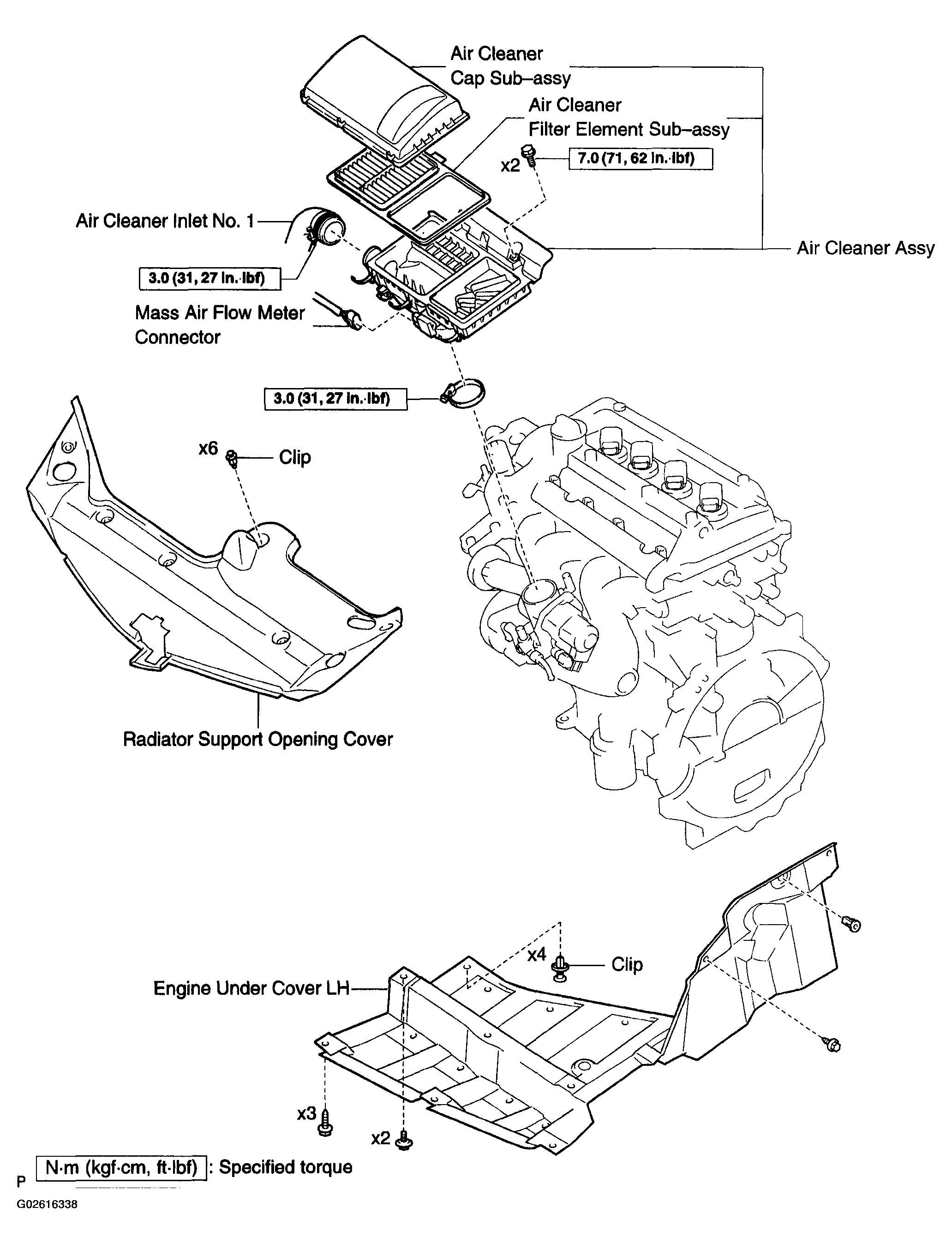

Fig 1: Identifying Throttle W/Motor Body Assy Component (1NZ-FXE - 1 Of 2)
G02616338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

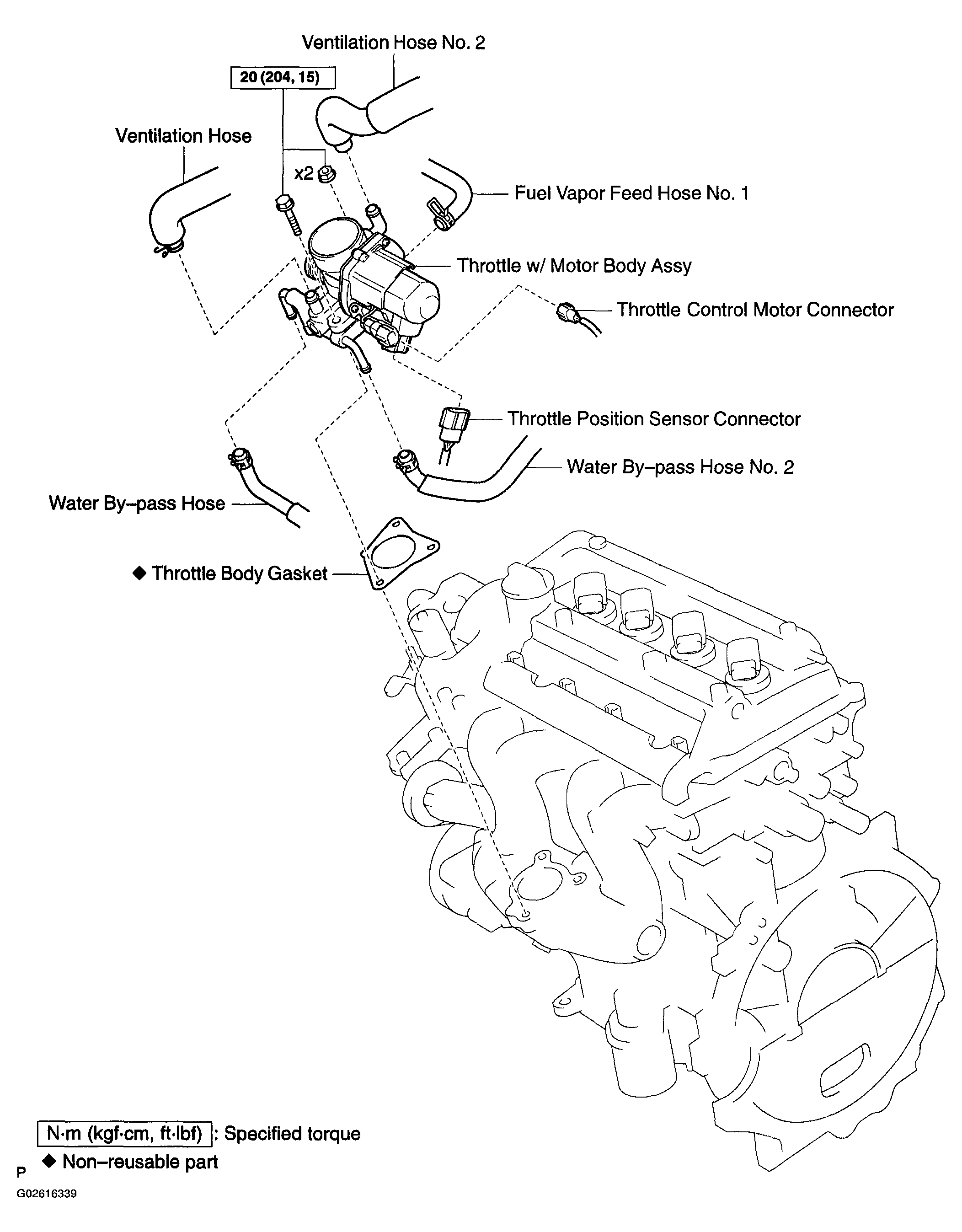

Fig 2: Identifying Throttle W/Motor Body Assy Component (1NZ-FXE - 2 Of 2)
G02616339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
