Telltale Lamp ASSY: Replacement

HINT:

• Installation is in the reverse order of removal.
• COMPONENTS: SEE INSTRUMENT PANEL/METER

1. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE  INSTRUMENT PANEL SUB-ASSY   )
2. REMOVE TELLTALE LAMP ASSY
   1. Disconnect the connector.
   2. Disengage the 2 claws and then remove the telltale lamp assy.

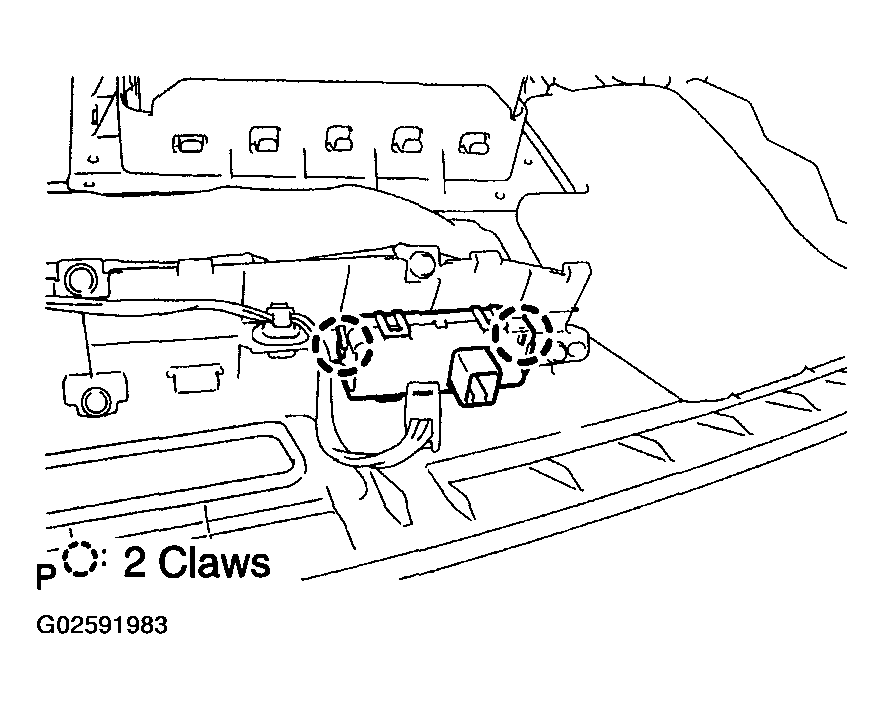

   Fig 1: Disengaging 2 Claws And Removing Telltale Lamp Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE  INSTRUMENT PANEL SUB-ASSY   )
