Combination Meter ASSY: Overhaul

NOTE: When disassembling the combination meter assy, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

HINT:

Installation is in the reverse order of removal.
COMPONENTS: SEE INSTRUMENT PANEL/METER

REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE INSTRUMENT PANEL SUB-ASSY )
REMOVE COMBINATION METER ASSY

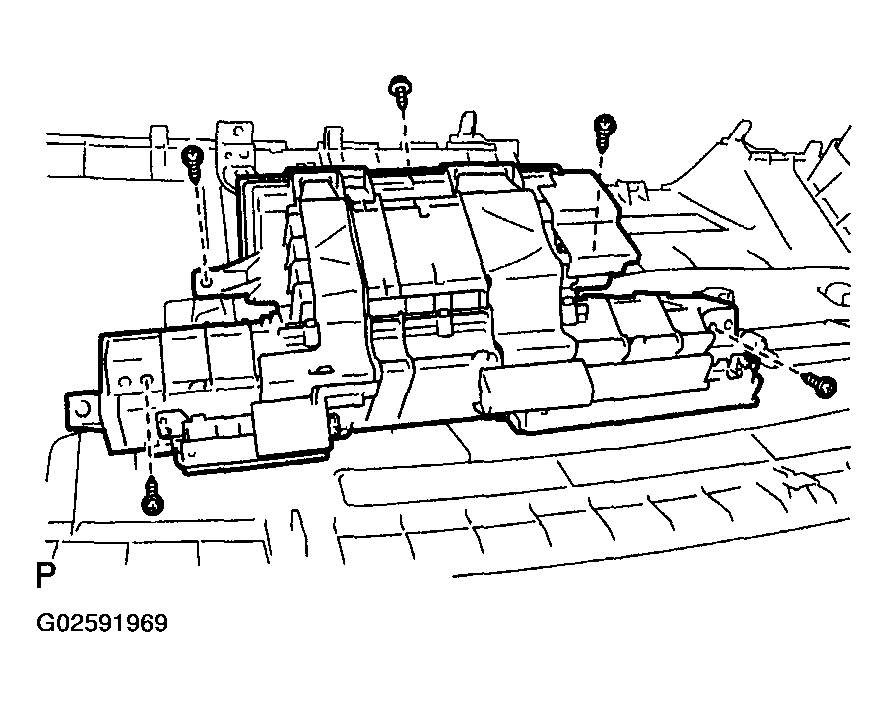

1. Remove the 5 screws and then the combination meter assy.
Fig 1: Removing 5 Screws And Combination Meter Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER COVER NO.1
1. Remove the 2 screws.

  Fig 2: Removing 2 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws and then remove the combination meter cover No.1.
Fig 3: Disengaging 2 Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE METER CIRCUIT PLATE
NOTE: When disassembling the combination meter assy, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
1. Pull the connector lock in the direction indicated by the arrow in the illustration and separate the meter circuit plate No.3 from the meter circuit plate.

  Fig 4: Removing Meter Circuit Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 5 claws and then remove the meter circuit plate.
Fig 5: Disengaging 5 Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER CASE NO.2
REMOVE COMBINATION METER COVER NO.2
NOTE: When disassembling the combination meter assy, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
1. Remove the 2 screws.

  Fig 6: Removing 2 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws and then remove the combination meter cover No.2.
Fig 7: Disengaging 2 Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE METER CIRCUIT PLATE NO.2
NOTE: When disassembling the combination meter assy, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

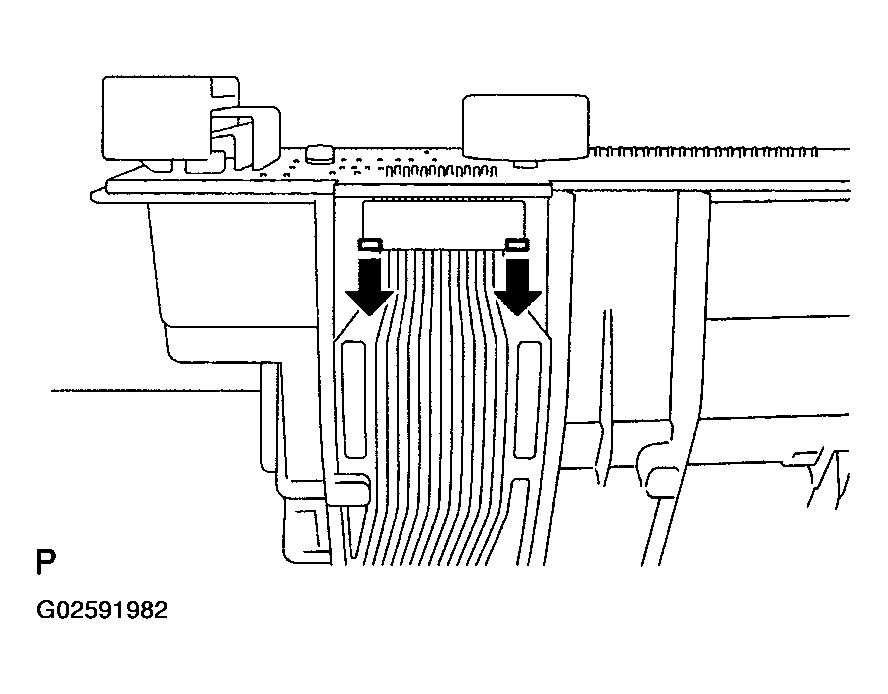

1. Pull the connector lock in the direction indicated by the arrow in the illustration and separate the meter circuit plate No.4 from the meter circuit plate No.2.

  Fig 8: Removing Meter Circuit Plate No.2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 4 claws, and then remove the meter circuit plate No.2.
Fig 9: Disengaging 4 Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER NO.3 CASE
REMOVE COMBINATION METER REFLECTOR NO.1
1. Remove the 4 clips.

  Fig 10: Removing 4 Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the screw and then the combination meter reflector No.1.
Fig 11: Removing Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER COVER NO.3
1. Remove the 4 screws.
2. Widen the 2 claws along the outside to disengage them.
3. Raise the cover from the bottom and remove the combination meter reflector No.1.
Fig 12: Removing 4 Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE METER CIRCUIT PLATE NO.3
NOTE: When disassembling the combination meter assy, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

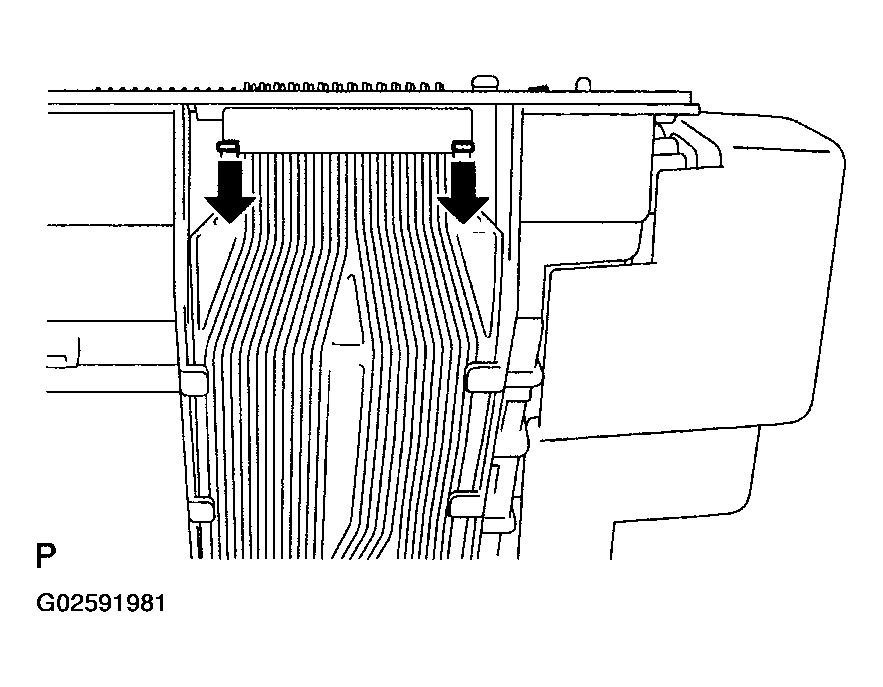

1. Pull the connector lock in the direction indicated by the arrow in the illustration, and remove the meter circuit plate No.3.
Fig 13: Removing Meter Circuit Plate No.3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE METER CIRCUIT PLATE NO.4
NOTE: When disassembling the combination meter assy, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
1. Pull the connector lock in the direction indicated by the arrow in the illustration, and remove the meter circuit plate No.4.
Fig 14: Removing Meter Circuit Plate No.4
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER CASE
INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE INSTRUMENT PANEL SUB-ASSY )
