Indicator Lights:

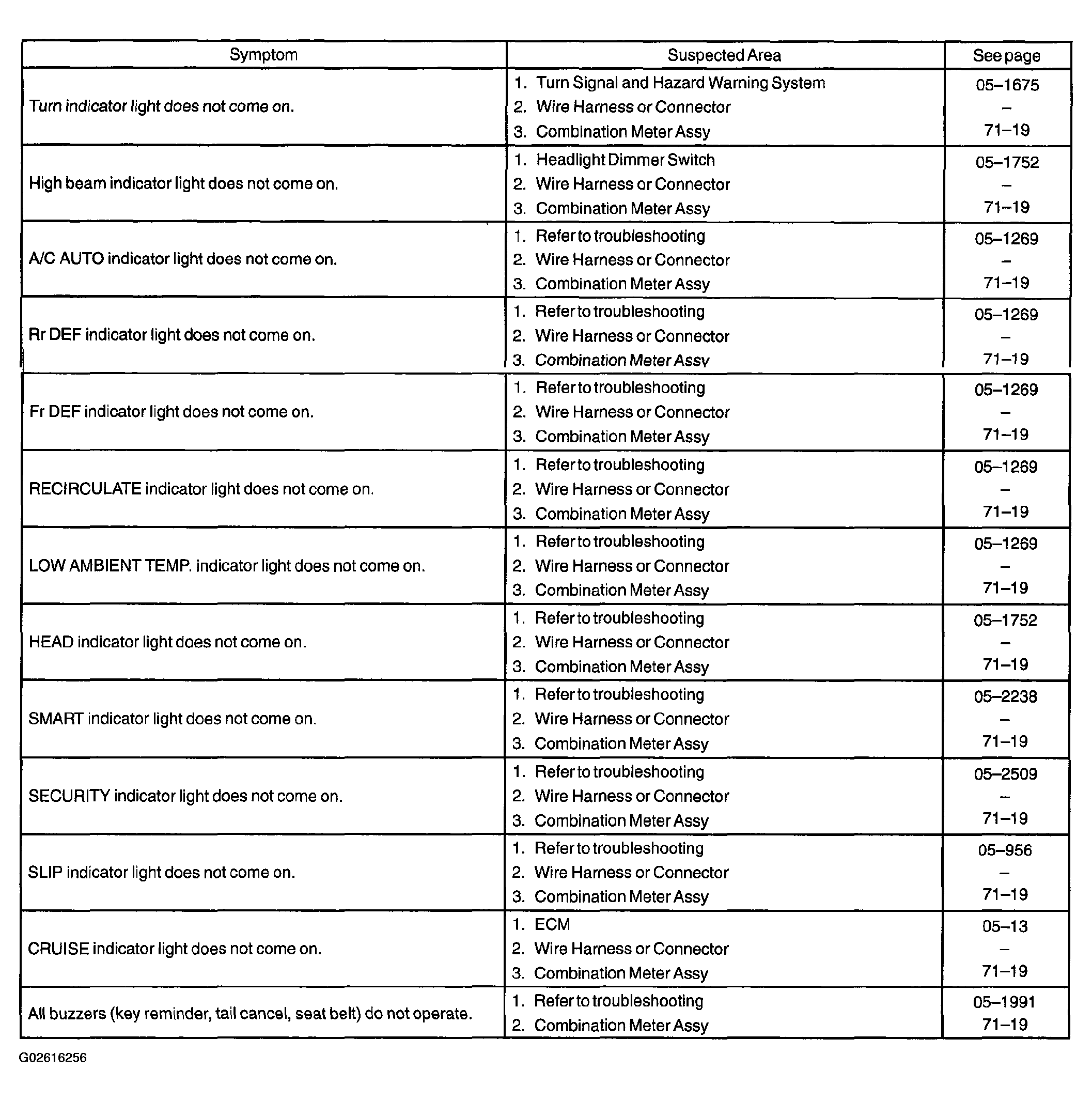

Fig 1: Indicator Lights Reference Chart

G02616256

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
