Home >> Toyota >> 2005 >> Prius >> Repair and Diagnosis >> Electrical >> Gauges >> Combination Meter - Diagnostics >> Problem Symptoms Table >> Buzzer:

Problem Symptoms Table: Buzzer:

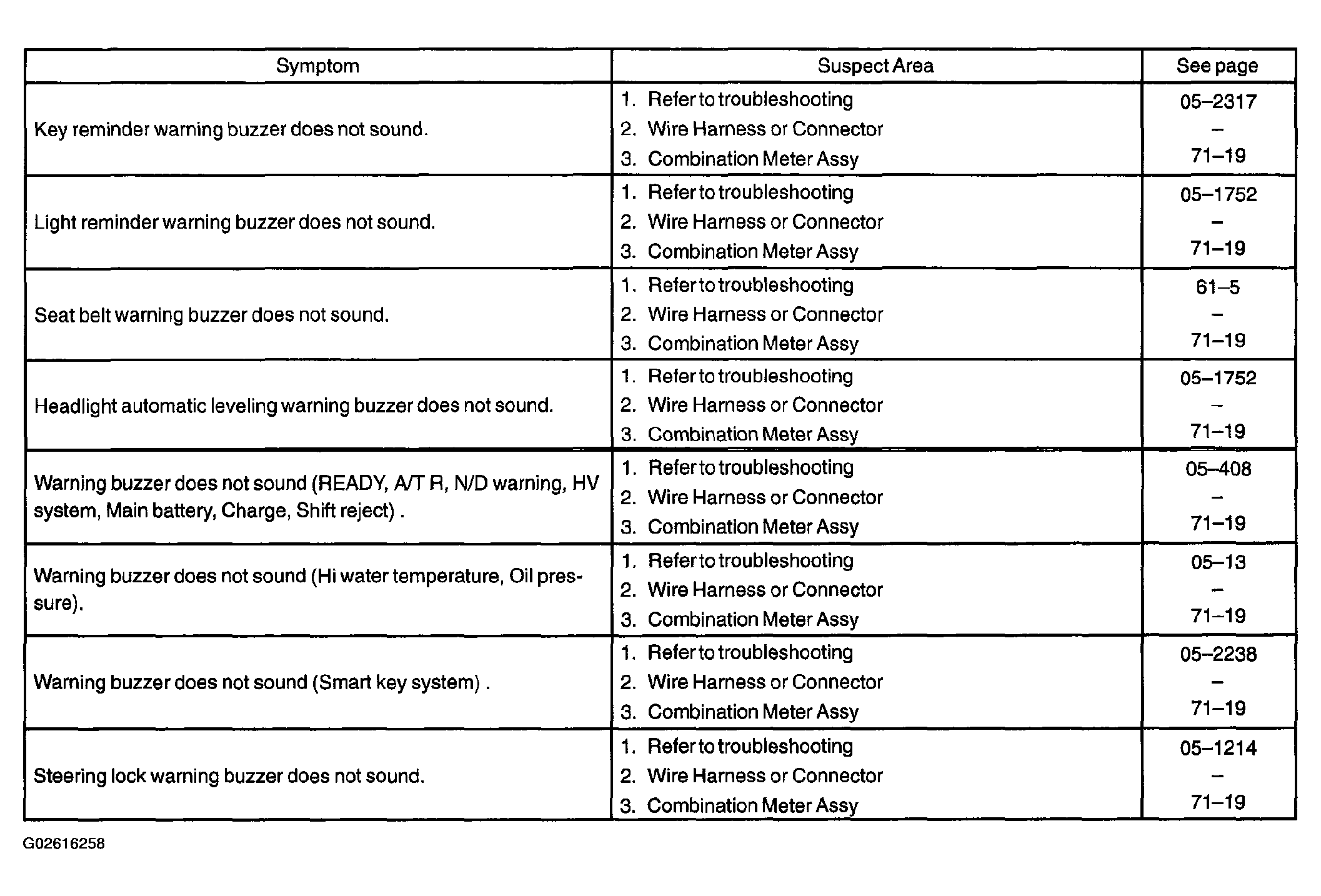

Fig 1: Buzzer Reference Chart
G02616258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to On-vehicle inspection in combination meter (See ON-VEHICLE INSPECTION  ).
