Inspection Procedure
- INSPECT COMBINATION METER ASSY
- Measure the resistance according to the value (s) in the table below.
Standard:

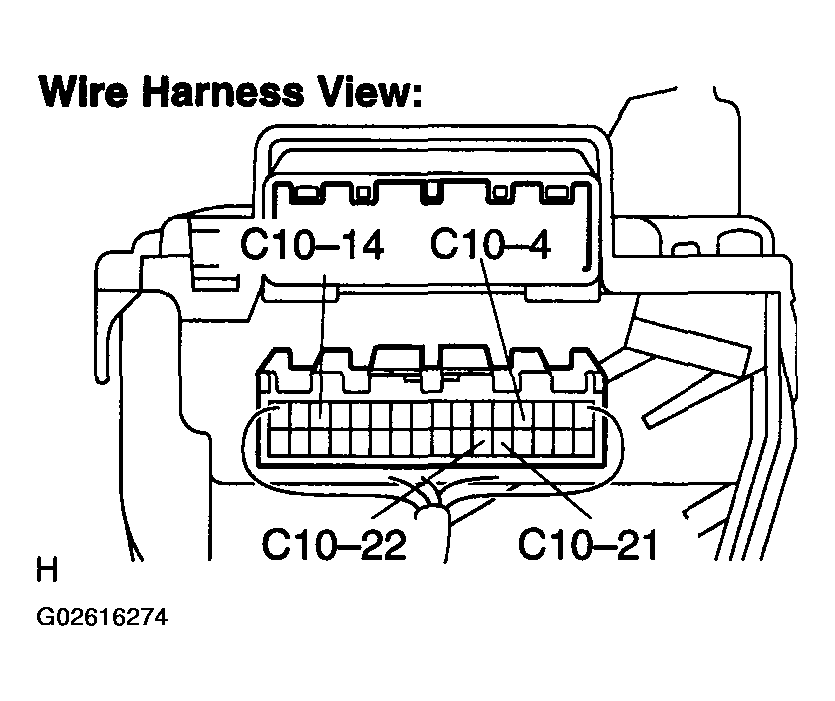

TERMINAL SPECIFIED CONDITIONTerminal No Condition Specified Condition C10-14 - Body ground Always Below 1 Ω - Measure the voltage according to the value (s) in the table below.
Standard:
TERMINAL SPECIFIED CONDITIONTerminal No Condition Specified Condition C10-21 - Body ground Always 10 to 14 V C10-4,22 - Body ground Power switch ON (IG) 10 to 14 V
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: GO TO NEXT STEP
REPLACE COMBINATION METER ASSY (See COMBINATION METER ASSY )
