Wireless Door Lock Control System (W/Smart Entry System) - Diagnostics
>>
System Diagram
System Diagram

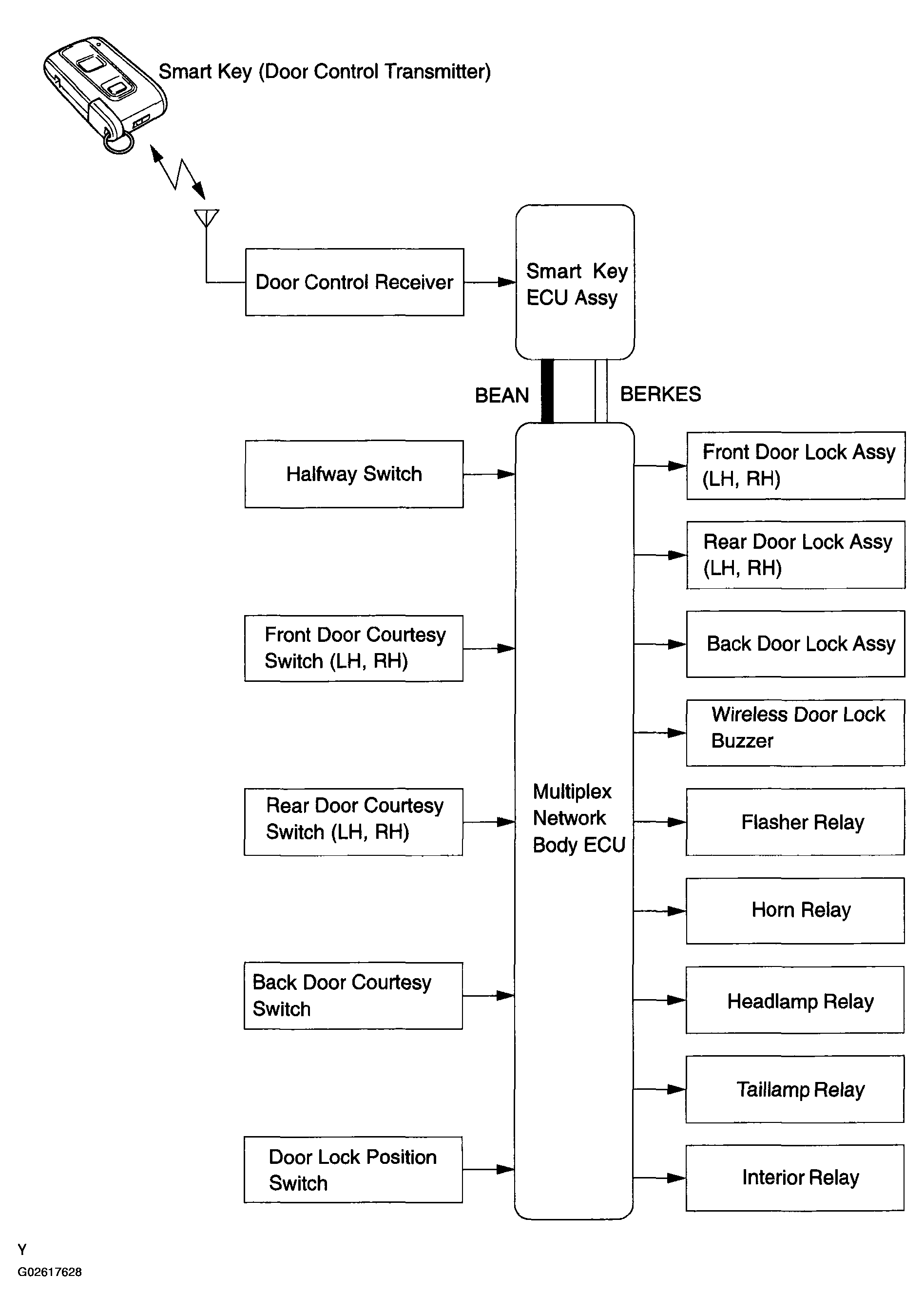

Fig 1: System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
