Steering Pad Switch RH: Replacement

HINT:

• COMPONENTS: SEE COMPONENTS
• Installation is in the reverse order of removal.

1. PRECAUTION (SEE  PRECAUTION  )
2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM  )
3. REMOVE STEERING WHEEL COVER LOWER NO. 2 (SEE  OVERHAUL  )
4. REMOVE STEERING WHEEL COVER LOWER NO. 3 (SEE  OVERHAUL  )
5. REMOVE HORN BUTTON ASSY (SEE  REPLACEMENT  )
6. REMOVE STEERING PAD SWITCH RH
   1. Disengage the 2 claws and pull out the steering pad switch RH.
   2. Disconnect each connector and remove the steering pad switch RH.

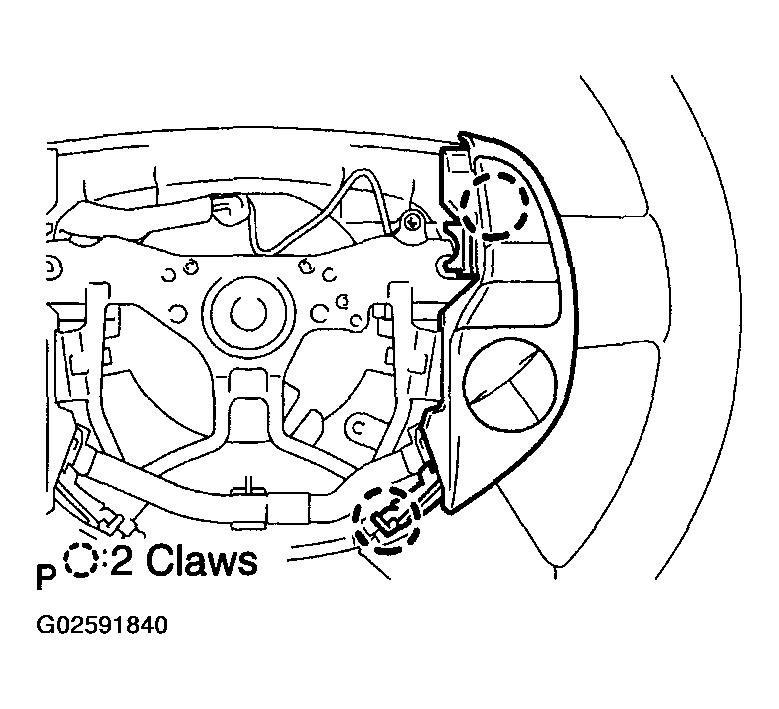

   Fig 1: Removing Steering Pad Switch RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT  )
8. CONNECT BATTERY NEGATIVE TERMINAL (SEE  BATTERY (1NZ-FXE)  )
9. PERFORM INITIALIZATION (SEE  INITIALIZATION  )
10. INSPECT HORN BUTTON ASSY (SEE  ON-VEHICLE INSPECTION  )
11. INSPECT SRS WARNING LIGHT (SEE  PRECAUTION  )
