Radio Receiver ASSY: Replacement

HINT:

• COMPONENTS: SEE COMPONENTS
• Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 3 (SEE  INSTRUMENT PANEL SUB-ASSY  )
2. REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 4 (SEE  INSTRUMENT PANEL SUB-ASSY  )
3. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (SEE  INSTRUMENT PANEL SUB-ASSY  )
4. REMOVE MULTI-DISPLAY ASSY (SEE  MULTI-DISPLAY ASSY   )
5. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
   1. Remove the 4 screws.
   2. Disconnect the connector and remove the radio receiver-assembly w/ bracket.

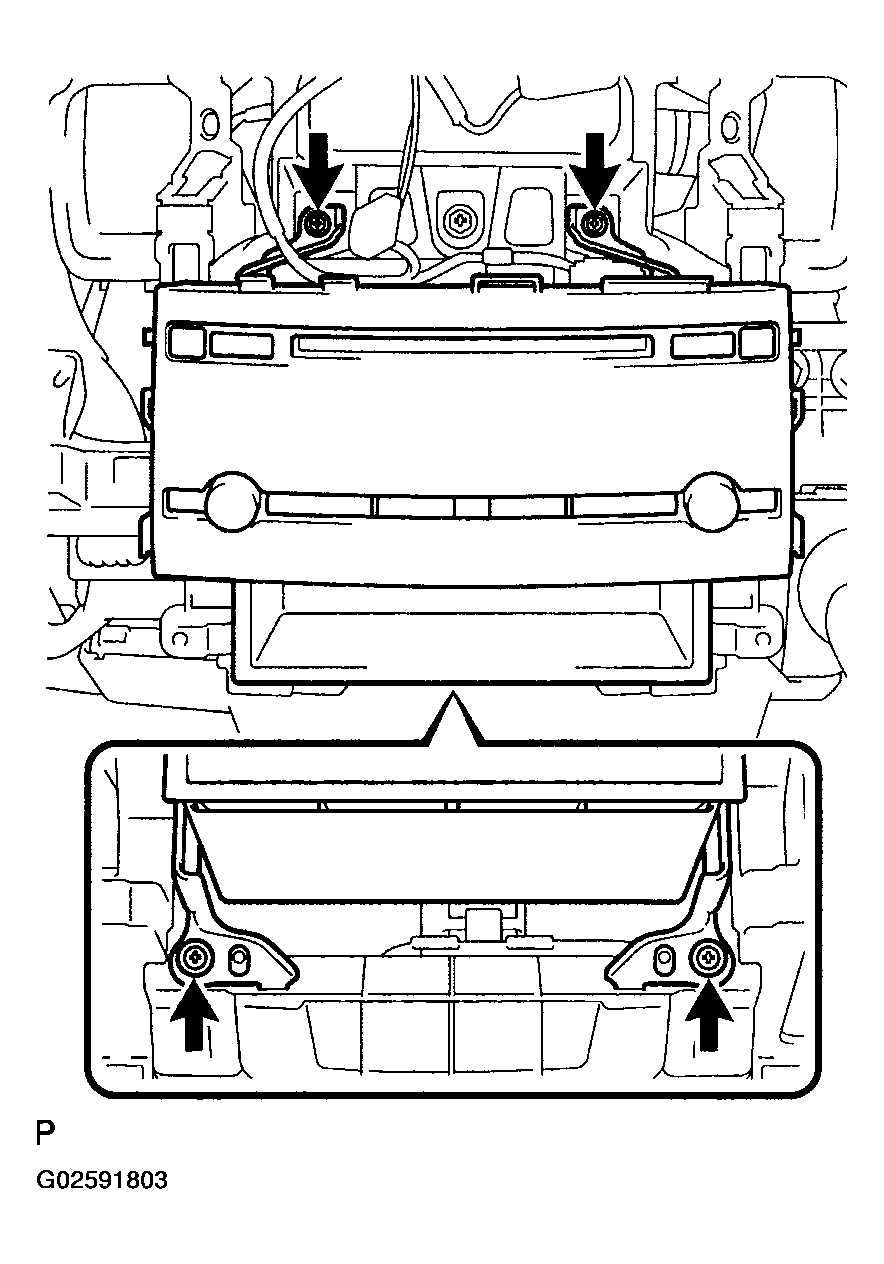

   Fig 1: Removing Radio Receiver Assembly W/Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE RADIO BRACKET NO. 1
   1. Remove the 6 screws and radio bracket No.1.

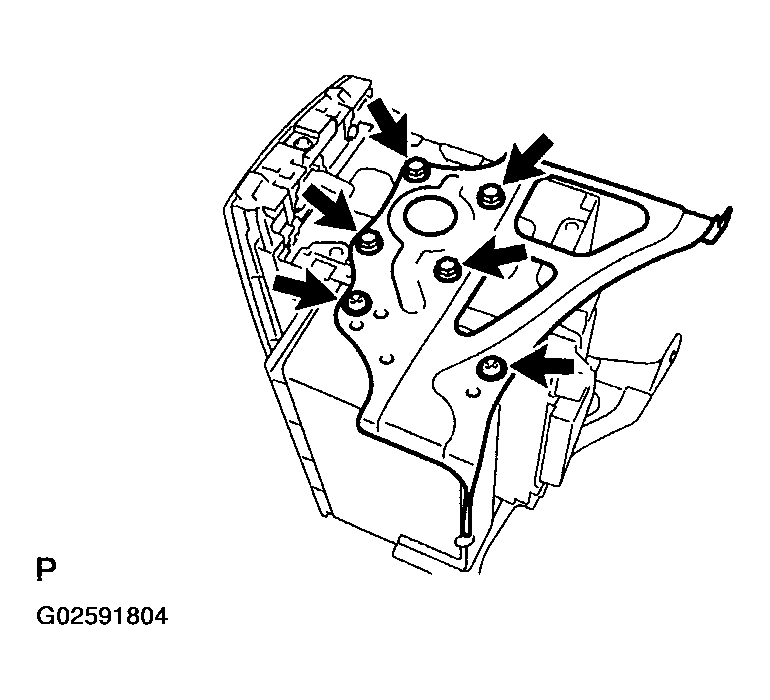

   Fig 2: Removing Radio Bracket No. 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE RADIO BRACKET NO. 2
   1. Remove the 6 screws and radio bracket No.2.

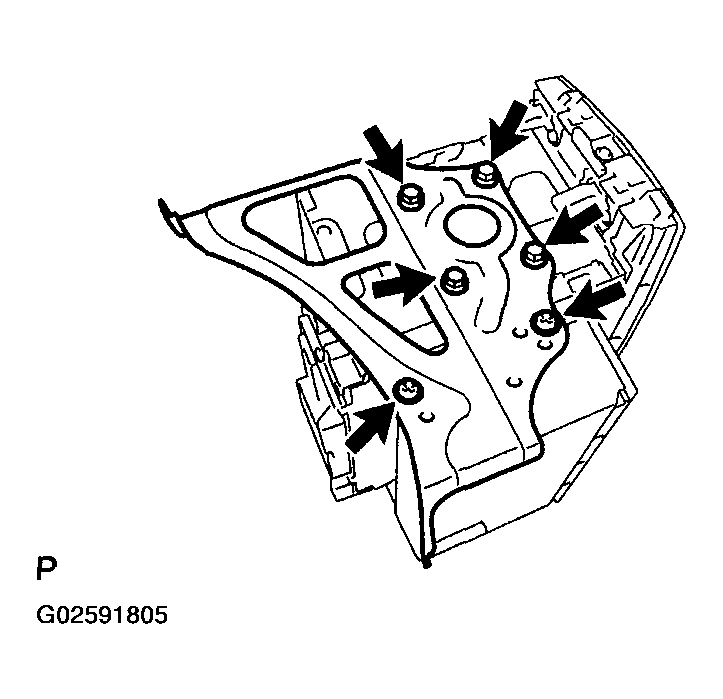

   Fig 3: Removing Radio Bracket No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE RADIO RECEIVER ASSY
