Power Point Socket ASSY RR: Replacement

HINT:

COMPONENTS: SEE COMPONENTS

1. REMOVE POWER POINT SOCKET ASSY RR
   1. Disengage the claw to remove the power point socket assy RR.

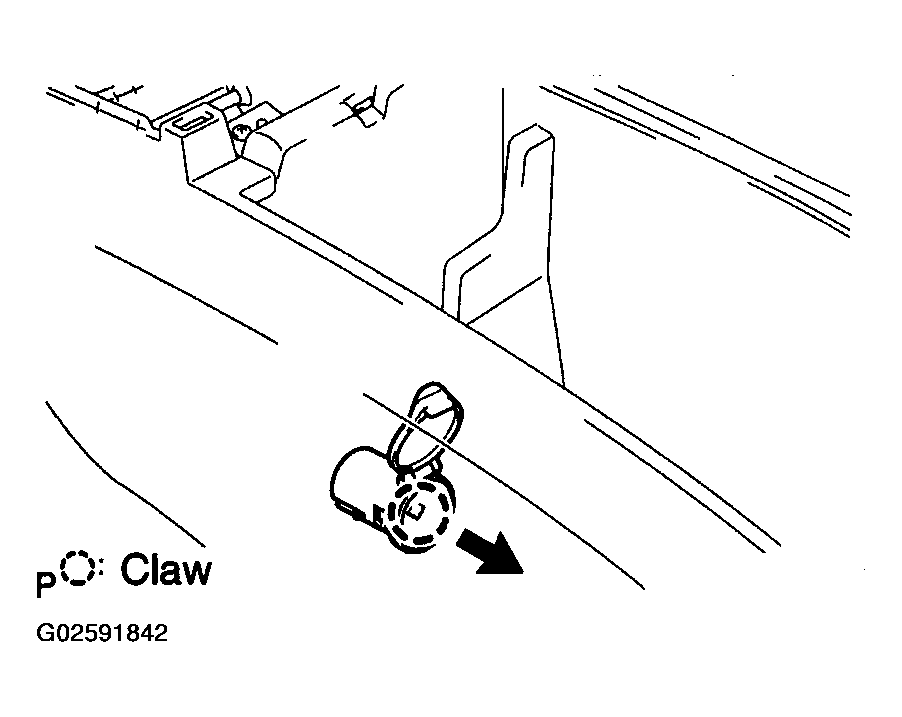

   Fig 1: Removing Power Point Socket Assy RR

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL POWER POINT SOCKET ASSY RR
   1. Align the power point socket assy RR and power point socket cover.
   2. Insert them from the front side and install the power point socket assy RR.
